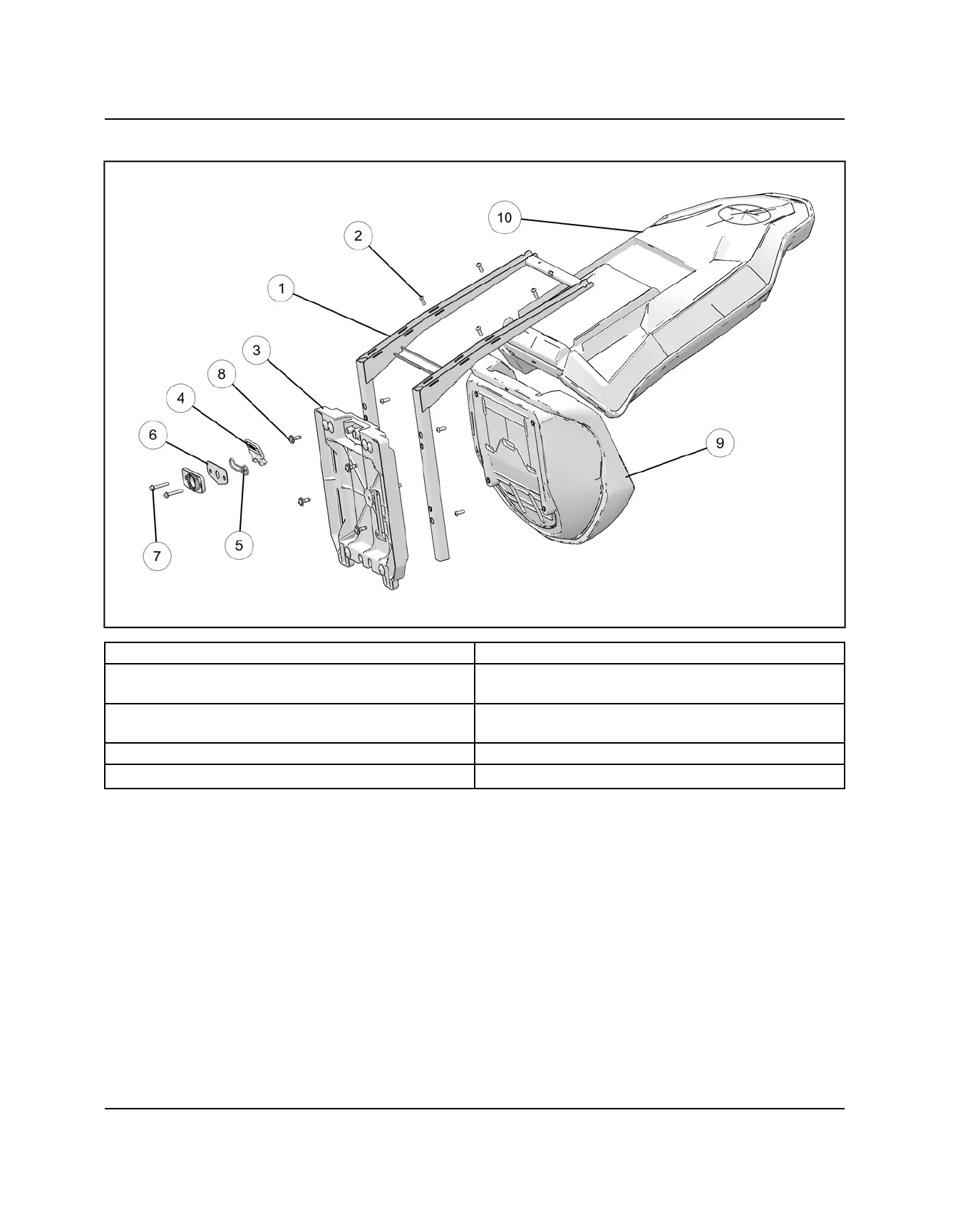

SEATS - REAR
q
Seat Frame
y
Plate Seat Latch
w
Seat Mounting Screw
4 ft-lb (5 Nm)
u
Seat Latch Screw
4 ft-lb (5 Nm)
e
Seat Base
i
Seat Base Bolt
4 ft-lb (5 Nm)
r
Seat Latch Lever
o
Seat Bottom
t
Spring Seat Latch
a
Seat Back
