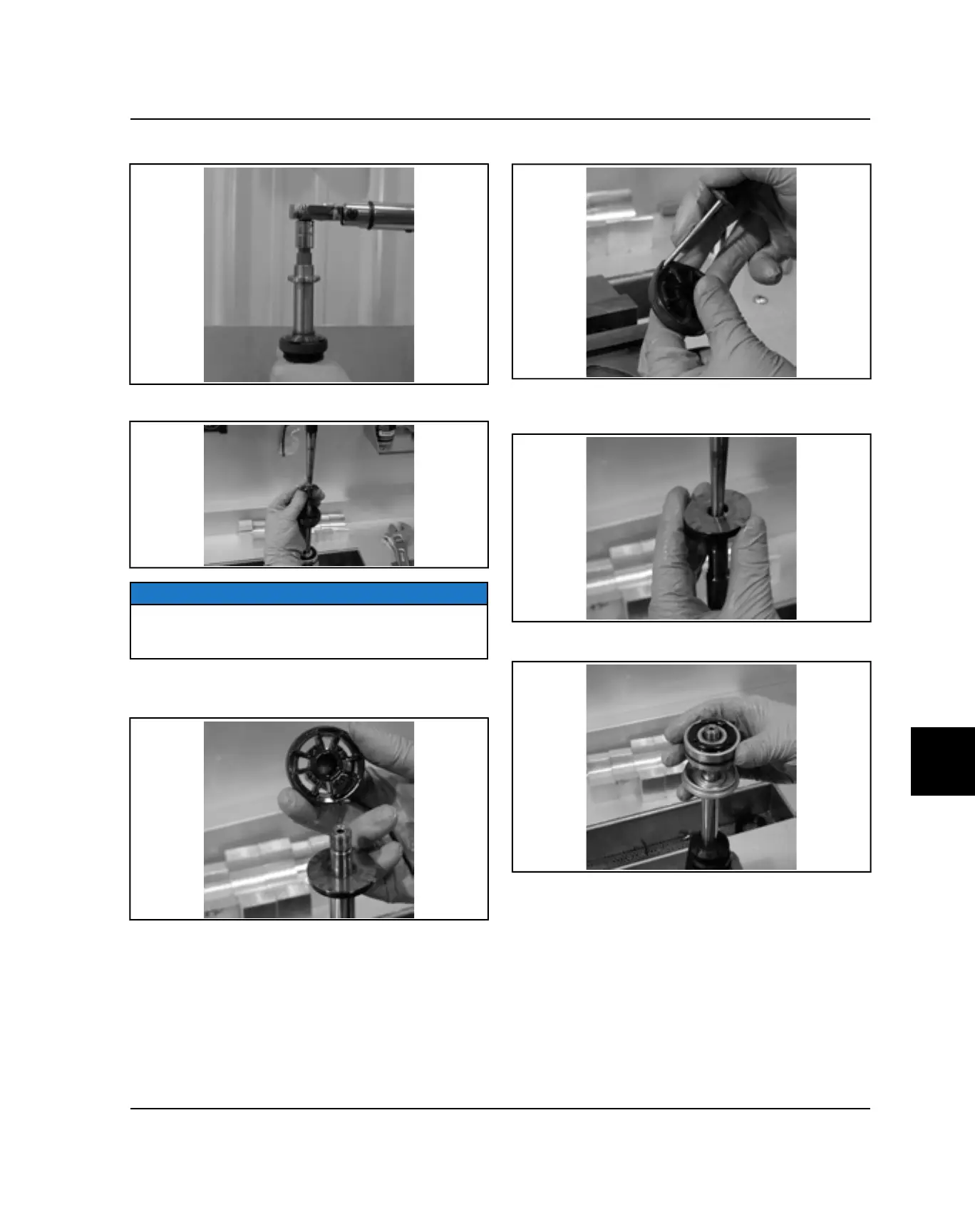

29.Remove BOC post.
30.Remove rebound valve stack.
NOTICE
If you are not changing valve shims you can zip tie the
shims together, this will keep valve shim stack in their
assembled order.
31.Note the side of the piston as it comes off the shock
shaft. Compression side down.
32.Remove the piston bearing if it shows any signs of
damage or wear.
33.Remove piston O-ring.
34.Take note if you have a bleed shim when removing
compression valve stack .
35.Remove bearing assembly and bearing cap.
