MAINTENANCE
Lights
High Beam Adjustment
The headlight beam can be adjusted slightly upward or downward.
Use the following procedure to m ake the adjustment.
1. Position the vehicle on a level surface with the headlight
approximately 25 ft. (7.6 m) from a wall.
2. Measure the distance from the floor to the center of t he headlight
and make a mark on the wall at the same height.
3. Start the engine and turn the headlight switch to high beam .
4. Observe the headlight aim on the wall. The m ost intense part of
the headlight beam should be two inches (5.1 cm) below the mark
on the wall.
NOTE: Include rider (and passenger) weight on the seat when
measuring.
5. The adjustment knob is located on the right side of the headlight
pod. Adjust the beam to the desired position by turning the knob
either clockwise or counterclockwise.
Low Beam Adju stment
The low beam can be
adjusted slightly upward or
downward.

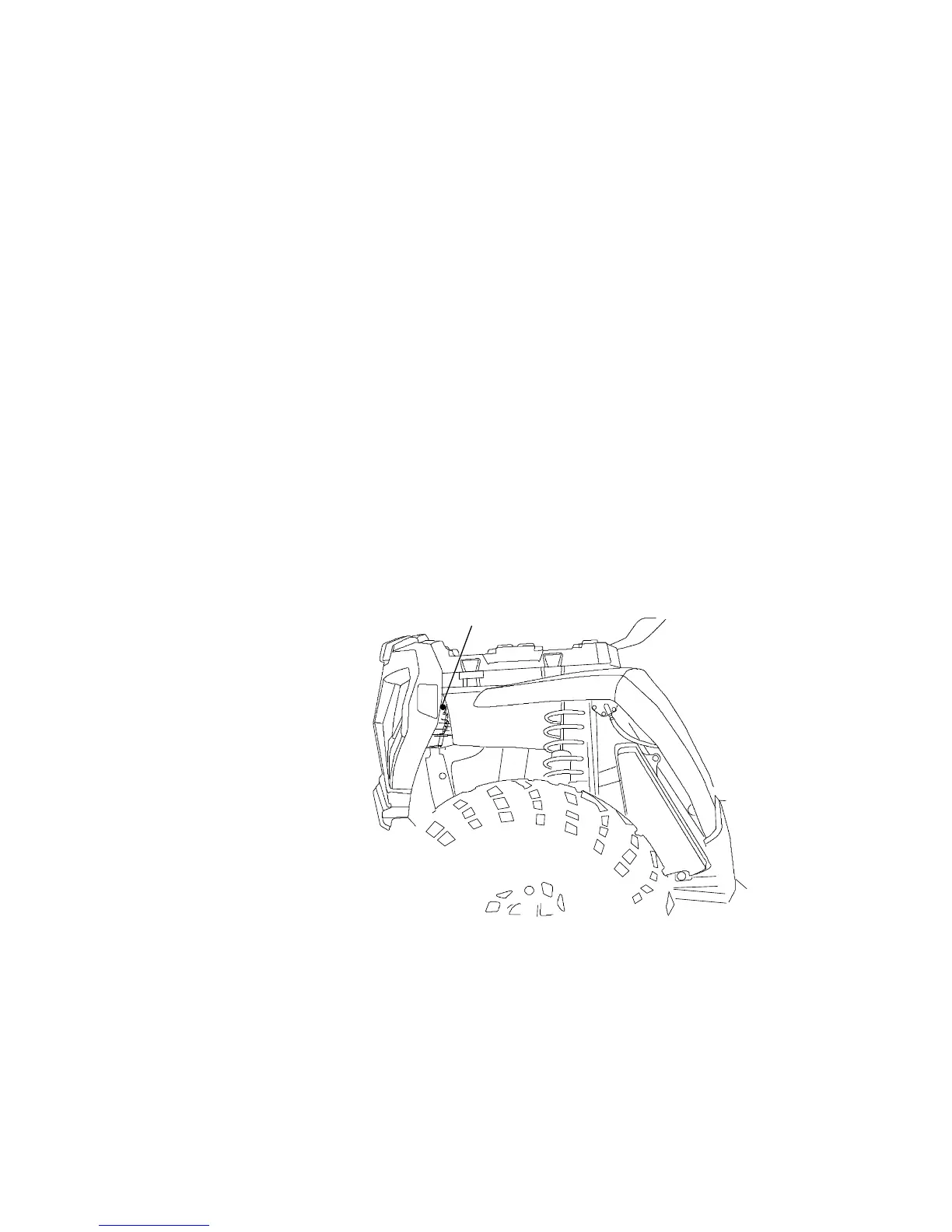

1. Loosen the phillips
screw (1) located at the
rear of the headlamp.
2. Tilt the headlamp
upward or downward.
3. Tighten the screw.
