Instrument Cluster
Rider Information Center
The rider information center is located in the instrument cluster. All
segments will light up for 2.5 seconds at start-up.
NOTE: If the instrument cluster fails to illuminate, a battery
over-voltage may have occurred and the instrument cluster
may have shut off to protect the cluster’s electrical system. If
this occurs, take the ATV to your Polaris dealer for proper
diagnosis.

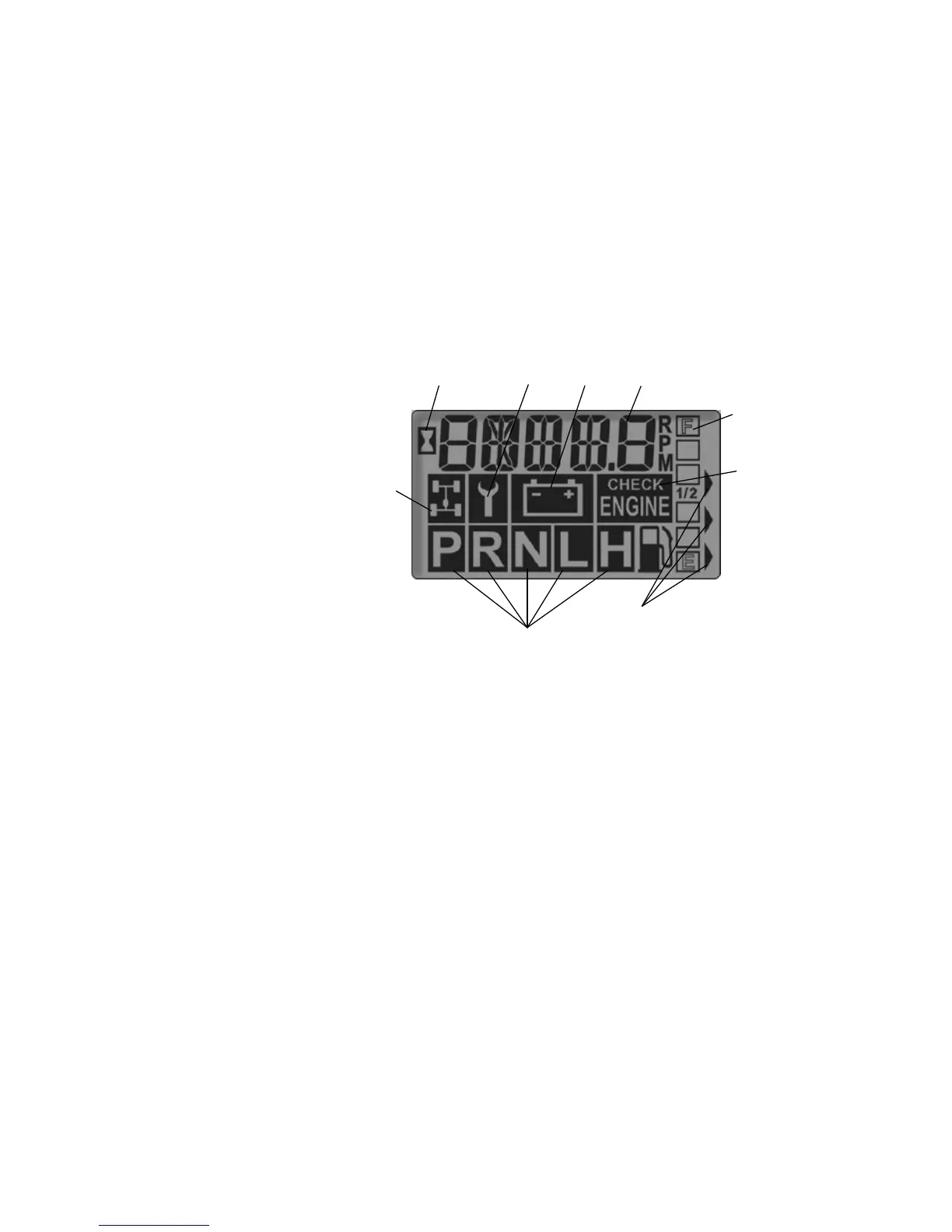

1. Gear Indicator - As the shift lever is moved, this indicates the
gear the transmission is in:
H = High Range
L = Low Range
N = Neutral
R = Reverse
P=Park
2. AWD Indicator - This
indicat or illuminates
when the electrical
portion of the AWD
system is enabled.
3. Engine Hour Display Indicator
4. Service Interval/Diagnostic Mode In dicator
5. Low Battery or Over Voltage - This warning usually indicates
that the ATV is being operated at an R PM too l ow to keep the
battery charged. A low batter y warning may also occur under normal
oper ation if the machine is at idle and high electr ica l load (lights,
cooling fan, accessories) is applied. Driving at a higher RPM or
connecting a battery charger will usually clear the warning.
6. Odometer/Tachometer/Tripmeter/ Hour Meter
7. Fuel Gauge - The segments of the fuel gauge show the level of
fuel in the fuel tank. When the last segment clears, a low fuel
warning is activated. All segments will flash, “FUEL” will display
in the LCD, and the speedometer needle will blink. Refuel
immediately.
8. Check Engine Warning Indicator - This indicator serves two
purposes. The word HOT displays if the engine overheats. It also
appears if an EFI-related fault occurs. Do not operate the ATV if
this warning appears. S erious engine damage could result.
9. Mode Indicator
8
5
4
3
1
6
2
9
7
