MAINTENANCE
Transmission Oil
Oil Change

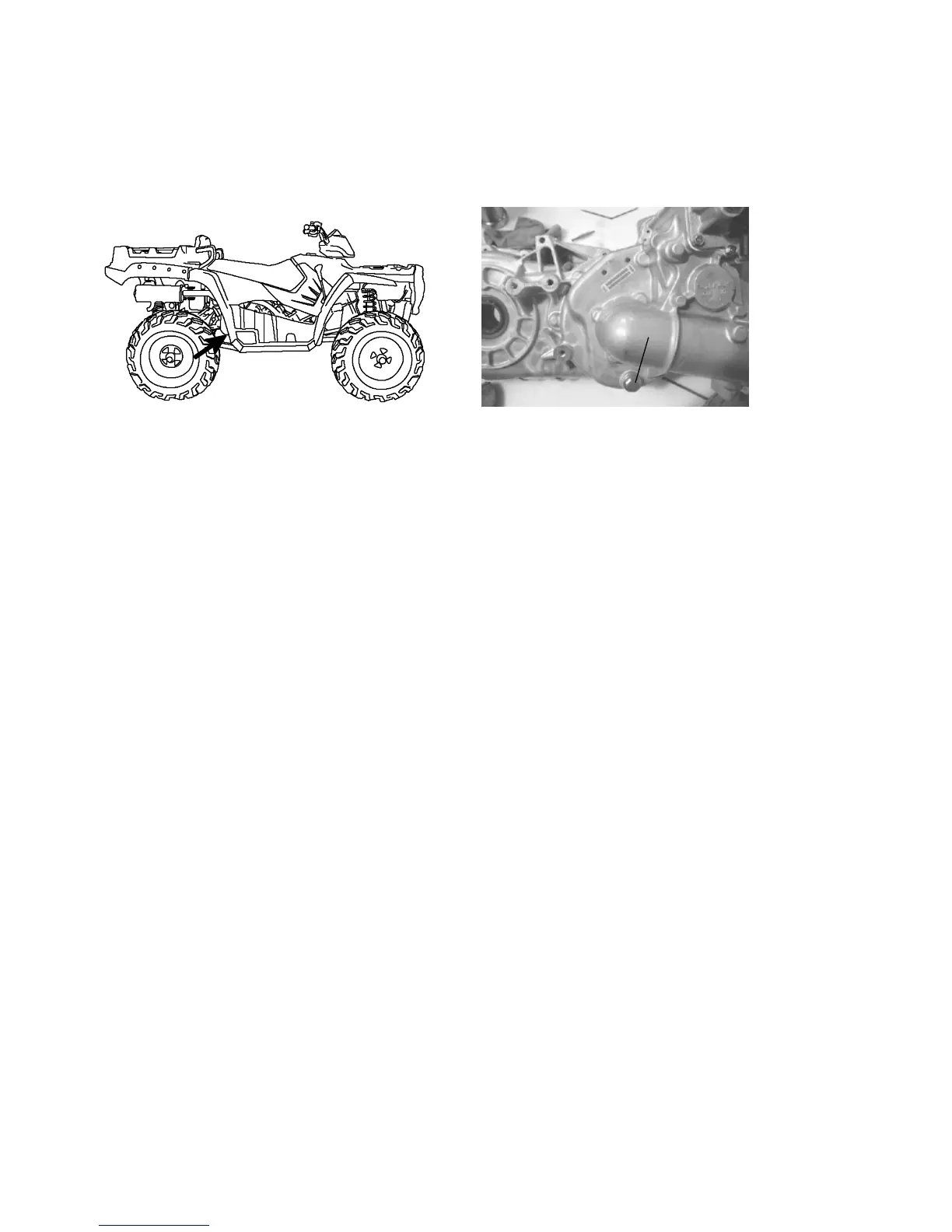

The transmission drain plug (2) is located on the right side of the
gearcase, on the right side of the ATV, behind the wheel well.
1. Remove the fill plug. R emove the drain plug.
2. Drain the oil into a drain pan. Dispose of used oil properly.
3. Clean and reinstall the drain plug. Torque to 20-25 ft. lbs. (27-34
Nm).
4. Add 32 oz. (948 ml) of the recommended transmission oil to bring
the level to the bottom of the fill plug.
5. Reinstall the fill plug. Torque to 20-25 ft. l bs. (27-34 Nm).
6. Check for leaks.
2
