CLUTCH
6.22
9. Remove nut from puller rod and set aside.
10. Remove adapters from puller.
11. Remove bushing and removal tool from adapters.
Discard bushing.
DRIVEN CLUTCH MOVEABLE
SHEAVE -
BUSHING
INSTALLA
TION
Number Two Puller
Adapter (#10)
Piston Pin Pull er
(PN 2870386)

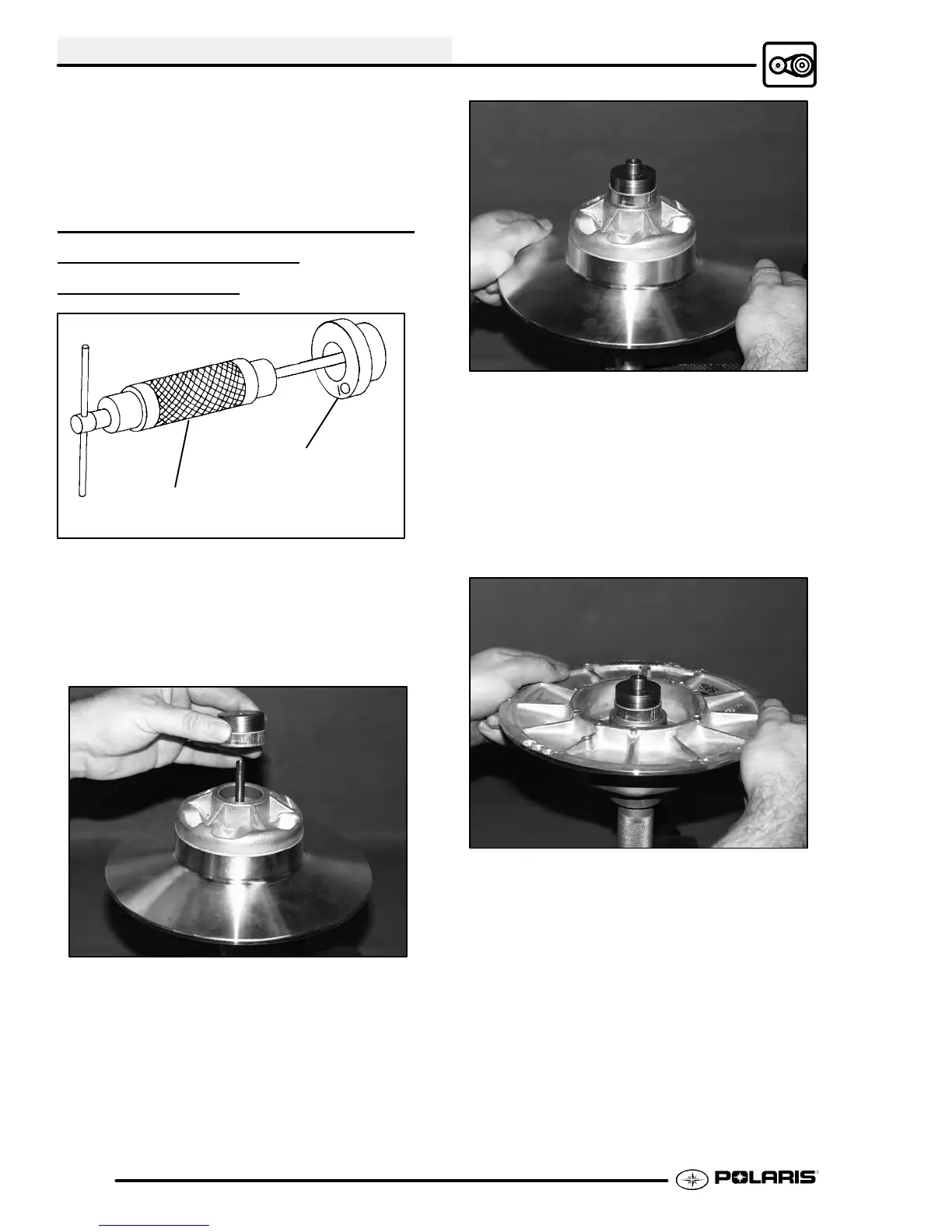

1. Working from the top, insert Number Two Puller
Adapter (#10) (PN 5020633) onto the puller. See
illustration at above.
2. Start new bushing evenly in moveable sheave.
Apply Loctitet 680 (PN 2870584) to the back
side of new bushing.
3. Install sheave onto puller with new bushing
upward as shown. Install the Number Two Puller
Adapter (#10) (PN 5020633).
4. Install nut onto puller rod and hand tighten against
installation tool.
5. Turn clutch sheave counterclockwise until
bushing is seated.
6. Remove nut from puller rod and set aside.
7. Remove installation tool and clutch sheave from
puller.
8. Repeat installation procedure for other moveable
bushing.
