ENGINE
3.43

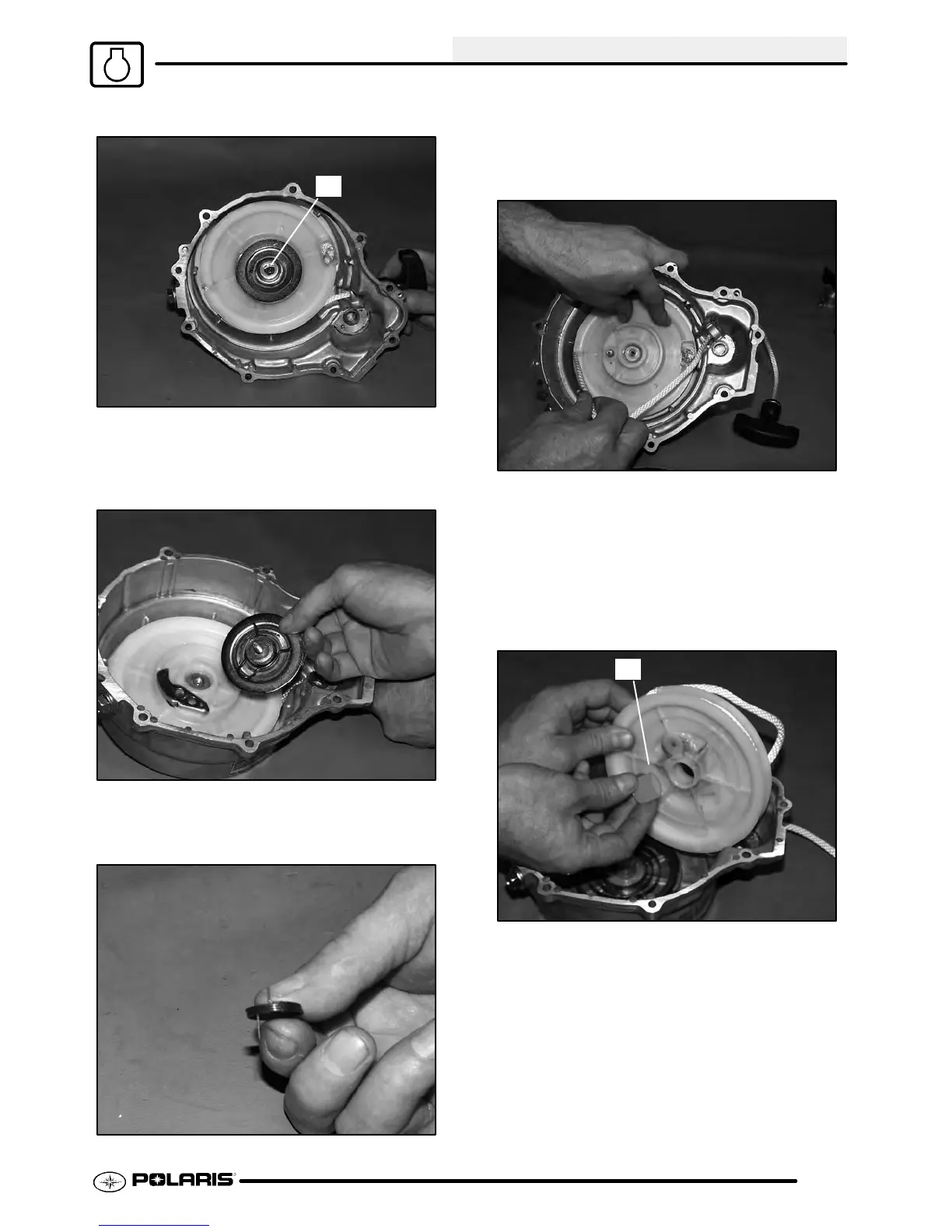

3. Remove center bolt from recoil friction plate (A).
A
4. Inspect plate for wear or damage. Inspect plate
friction spring for wear , damage, and proper
tension. The spring should fit tightly on friction
plate.
5. Remove ratchet pawl with spring and inspect.
Replace spring or ratchet pawl if worn, broken, or
damaged.
NOTE: Long arm of spring engages reel. Short end
rests against pawl.
6. Hold reel firmly in housing. Pull rope handle until
12-18² of rope is exposed, and hold reel in place.
7. Place rope in notch on outer edge of reel.
Release tension on hub and allow reel to unwind
approximately 6-7 turns until spring tension is
released.
8. Slowly and carefully remove reel from recoil
housing making sure the spring remains in the
housing. Inspect the reel hub and bushing (A) for
wear.
A
9. Unwind rope and inspect for cuts or abrasions.
10. Inspect drive tab on hub return spring for damage.
To remove hub return spring, hold outer coils in
place with one hand and slowly remove spring
one coil at a time from the inside out.
11. Pull knot out of of recoil reel. Untie knot. Remove
rope from reel.
