Rear of TV
HDMI 1 IN HDMI 2 IN
LR
LR
LR
LR
L
R
AUD IO IN AUD IO IN
VGA /PC IN
VIDEO2 IN
SCART 1
SCART 2
VIDEO
AUD IO IN
AUD IO IN
COMPONENT IN
AUD IO
OUT
TV CABLE
VHF/UHF IN
YPb Pr
22
Chapter 2 Installing the LCD TV
DVD PLAYER

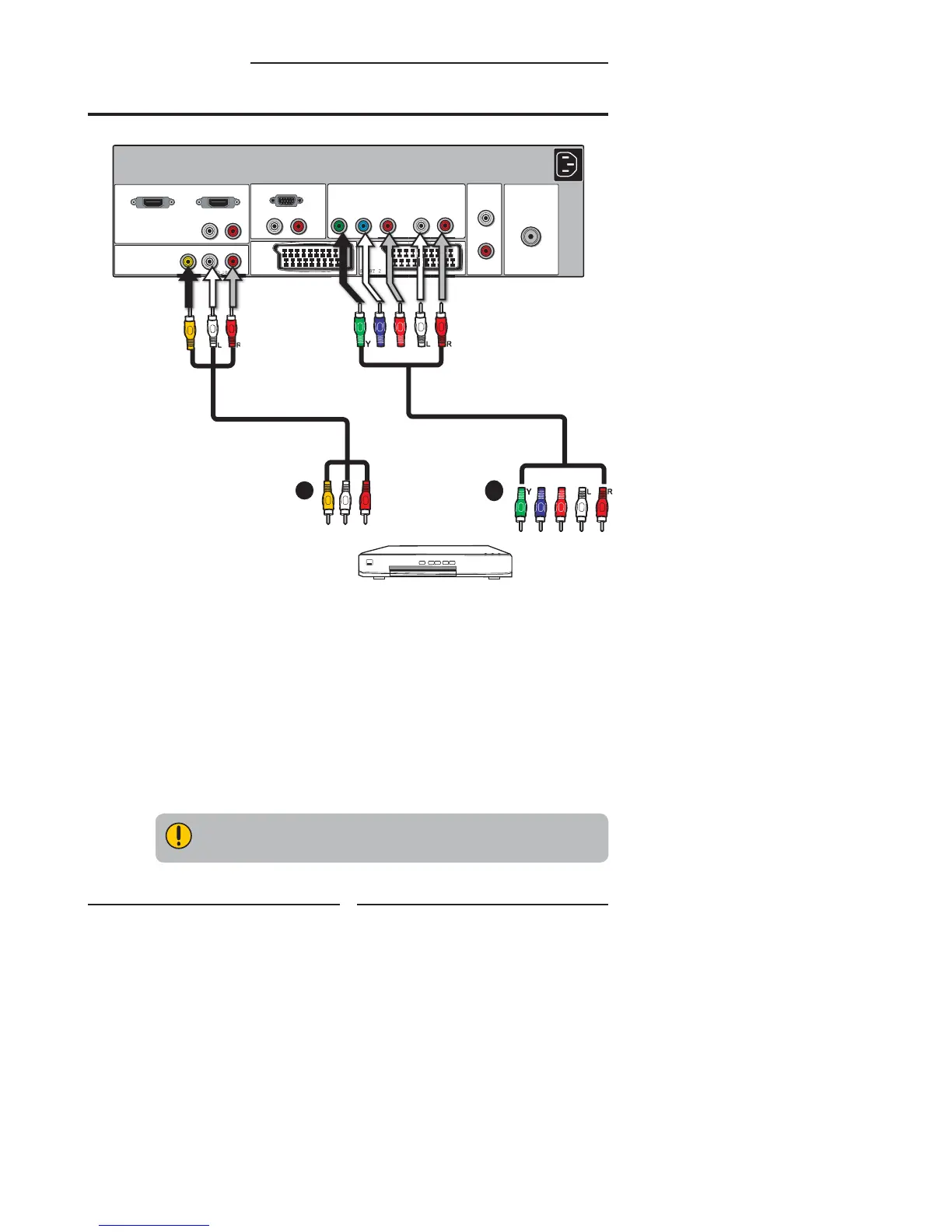

Connecting a DVD Player
A
B
PrPb
PrPb
A/V Cable
COMPONENT/AUDIO Cable
METHOD A:
Use a composite cable to connect the DVD player’s composite video/audio jacks to the LCD
TV’s VIDEO2 IN jacks.
METHOD B:
Use a component cable to connect the DVD player’s component output jacks to the LCD TV’s
YPbPr IN input jacks.
Use an audio cable to connect the DVD player’s component audio jacks to the LCD TV’s
audio input jacks.
The component video jacks on your DVD player are sometimes labeled
YPbPr, or YCbCr. For an explanation of component video, see your DVD
player’s user guide.
