Chapter 2 Installing the LCD TV
Rear of TV
HDMI 1 IN HDMI 2 IN
LR
LR
LR
LR
L
R
AUD IO IN AUD IO IN
VGA /PC IN
VIDEO2 IN
SCART 1
SCART 2
VIDEO
AUD IO IN
AUD IO IN
COMPONENT IN
AUD IO
OUT
TV CABLE
VHF/UHF IN
YPb Pr
PrPb
PrPb

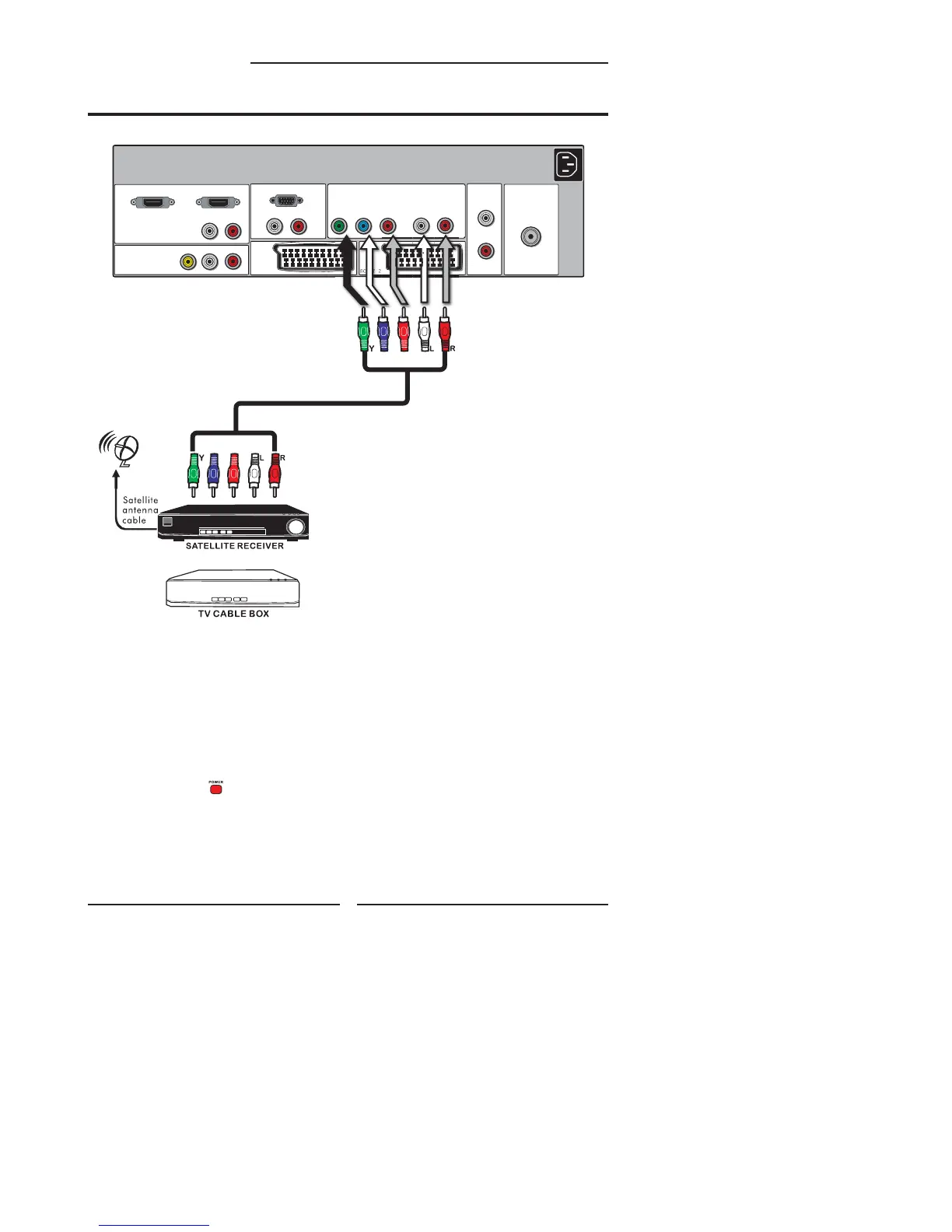

Connecting a Digital TV Cable Box or Digital Satellite Receiver
COMPONENT/AUDIO Cable
Use a component cable to connect the satellite receiver’s/TV Cable Box’s component
(YPbPr) output jacks to the LCD TV’s component input jacks.
Use an audio cable to connect the satellite receiver’s/TV Cable Box’s component audio
jacks to the LCD TV’s audio input jacks.
Connect all AC power sources, before turning on the power switch of the LCD TV or
other connected equipment.
Press the button on the remote to turn on the LCD TV.
To watch programs via satellite receiver or TV Cable Box, press the SOURCE button on
the remote to select VIDEO5.
