HDMI 1 IN HDMI 2 IN
LR
LR
LR
LR
L
R
AUD IO IN AUD IO IN
VGA /PC IN
VIDEO2 IN
SCART 1
SCART 2
VIDEO
AUD IO IN
AUD IO IN
COMPONENT IN
AUD IO
OUT
TV CABLE
VHF/UHF IN
YPb Pr
Rear of TV
Use a SCART cable to connect the external A/V device’s SCART socket to the LCD TV’s
VIDEO3(SCART1) or VIDEO4(SCART2) jack.
Connect all AC power sources, before turning on the power switch of the LCD TV or
other connected equipment.
Press the button on the remote to turn on the LCD TV.
Press the SOURCE button on the remote to select VIDEO3 or VIDEO4 .

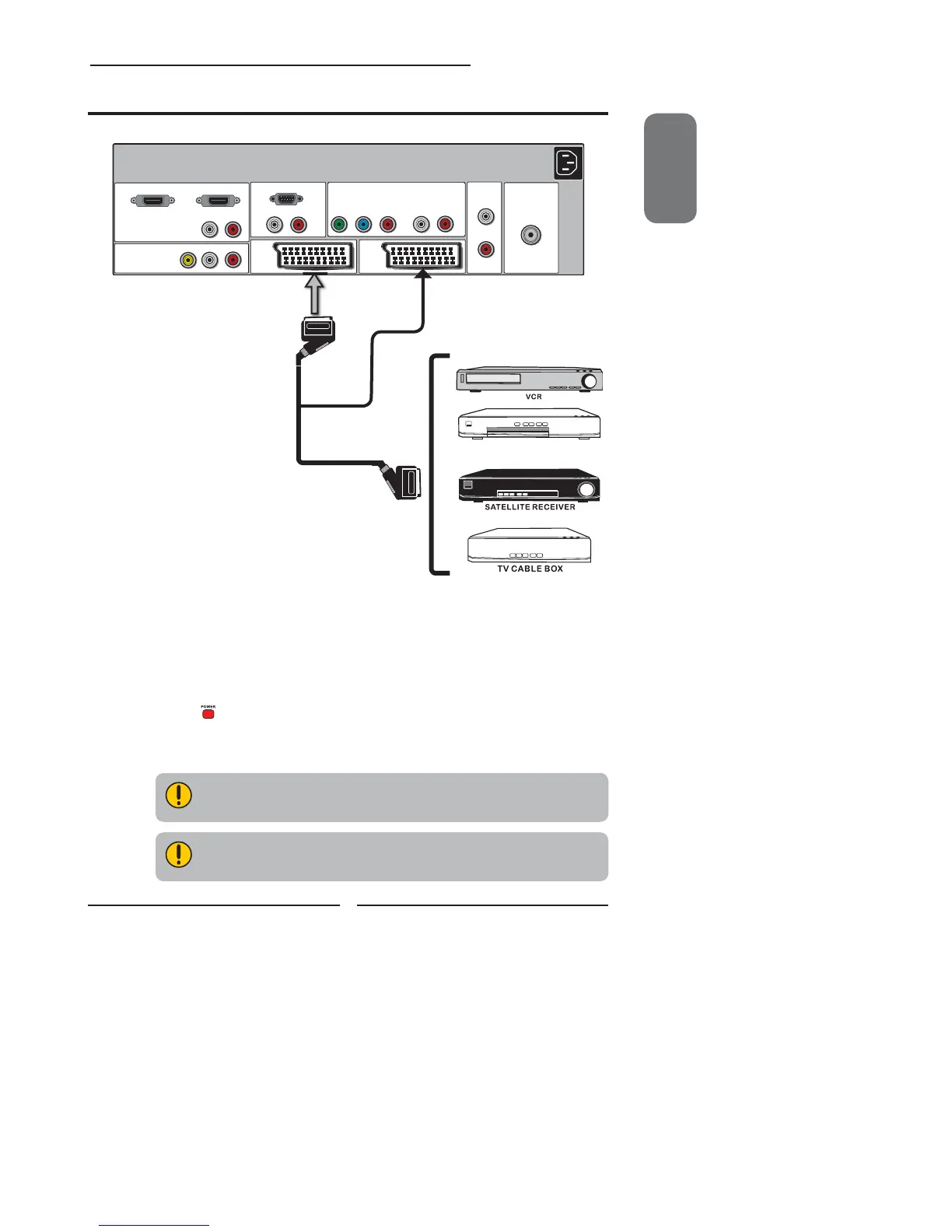

Connecting an A/V Device with SCART Connector
SCART Cable
DVD PLAYER
The SCART 1 socket o ers a multi-signal interface, including C-video(input/
output),S-video, RGB audio input and audio output.
The SCART 2 socket o ers a multi-signal interface, including C-video(input),
S-video, RGB audio input and audio output.
ENGLISH
27
Chapter 3 Using the LCD TV
