Chapter 2 Installing the LCD TV
HDMI 1 IN HDMI 2 IN
LR
LR
LR
LR
L
R
AUD IO IN AUD IO IN
VGA /PC IN
VIDEO2 IN
SCART 1
SCART 2
VIDEO
AUD IO IN
AUD IO IN
COMPONENT IN
AUD IO
OUT
TV CABLE
VHF/UHF IN
YPb Pr
Rear of TV

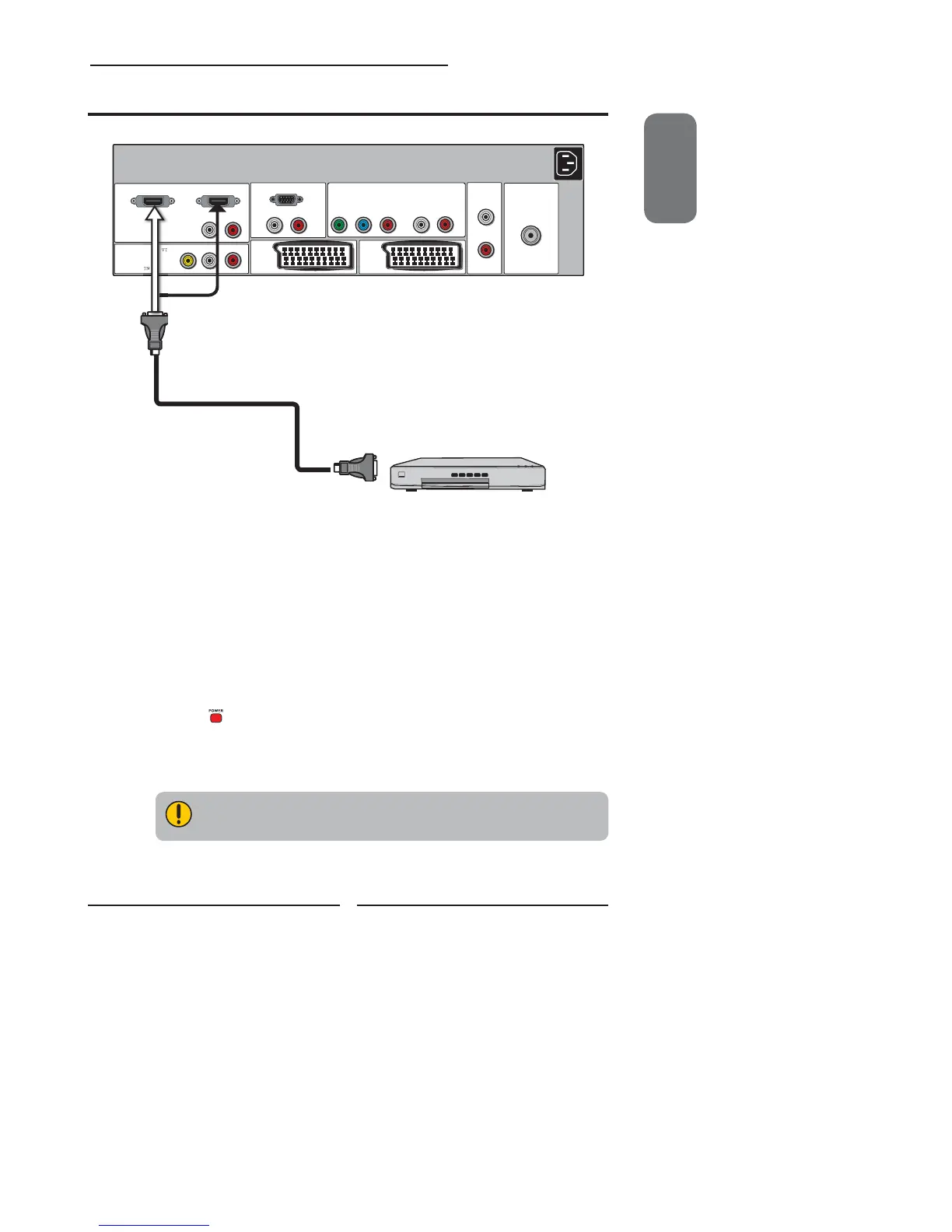

Connecting AV Equipment with HDMI Connector
HDMI Cable
AV EQUIPMENT
Use a HDMI cable to connect the AV equipment’s HDMI output jack to the LCD TV’s HDMI1/
HDMI2 IN jacks.
Connect all AC power sources, before turning on the power switch of the LCD TV or
other connected equipment.
Press the button on the remote to turn on the LCD TV.
Press the SOURCE button on the remote to select VIDEO6 or VIDEO7.
The HDMI connector provides both video and audio signals. It is not
necessary to connect the audio cable.
