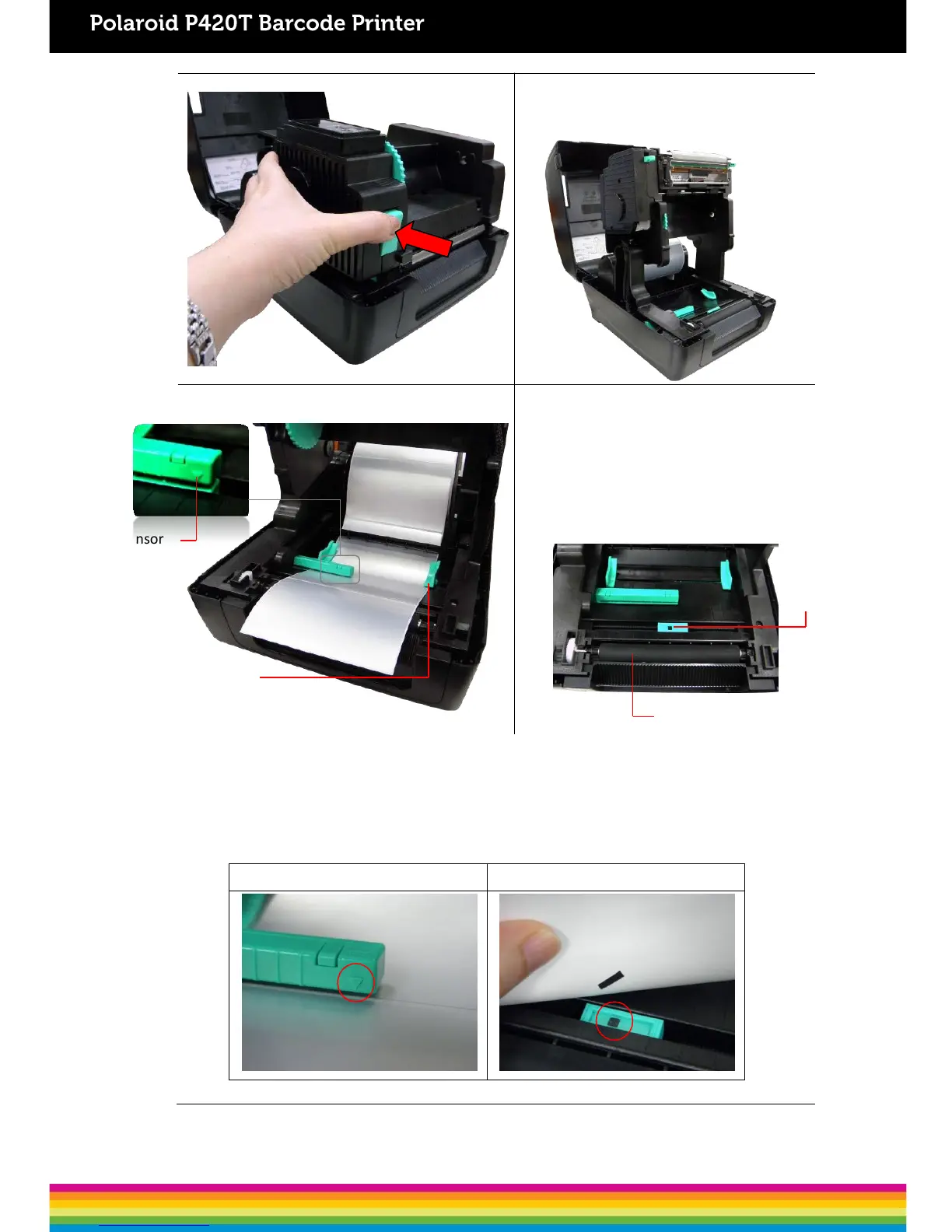

4. Push the release button to lift up the
print head mechanism.
5. Pull the label (printing side faced up),
through the media bar, media sensor and
place the label‘s leading edge onto the
platen roller. Move the media guides to fit
the label.
Gap sensor Black mark sensor
Gap sensor
Black mark
sensor
Media guide
Platen roller
Note: The media guide is adjustable. Please ensure that the gap or black mark is
at the location where media gap/black mark will pass through for sensing.
