Polaroid P420T

Note: Please calibrate the gap/ black mark sensor when changing media.

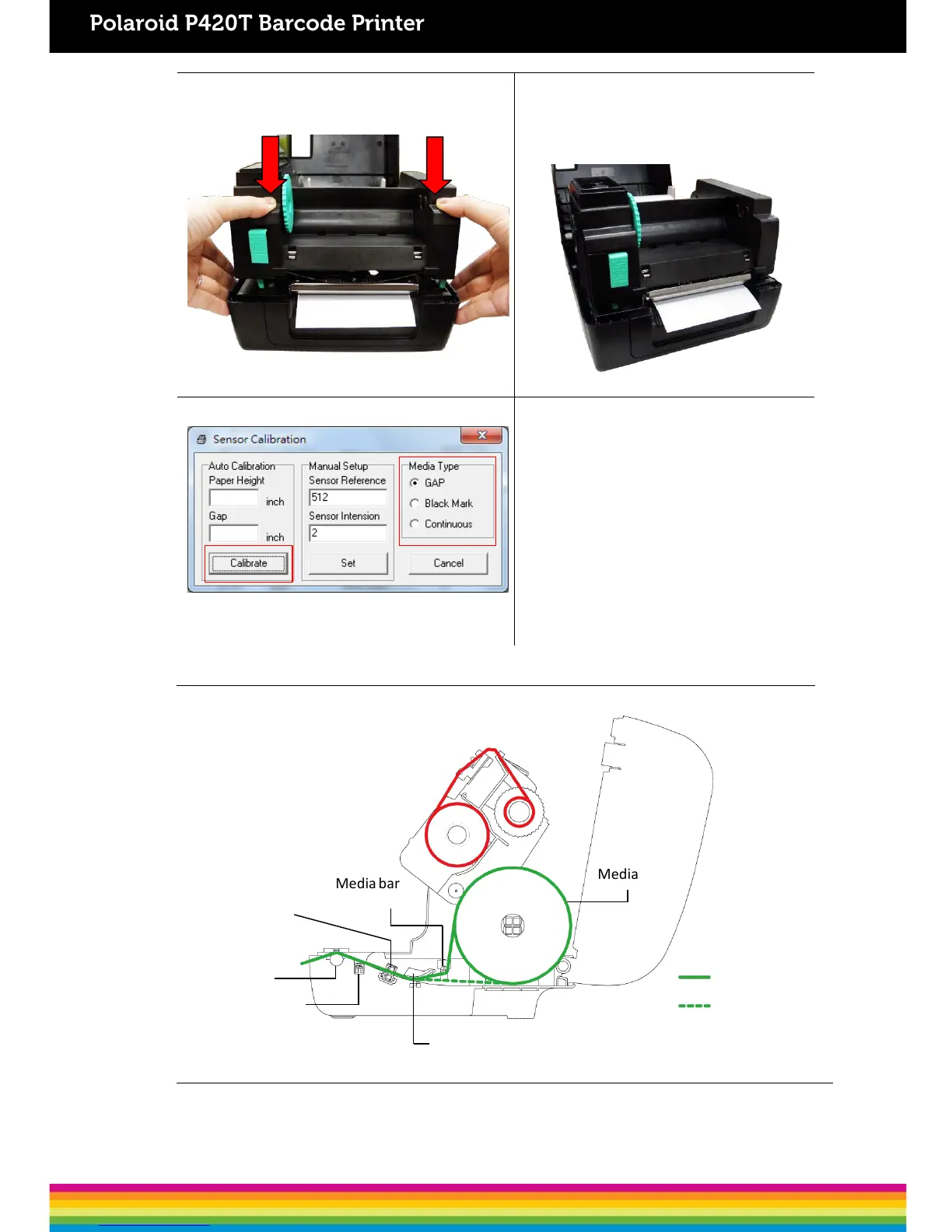

 Media loading path
Media
Media bar
Media guide
Gap sensor
Platen roller
Black mark sensor
6.
Close the print head mechanismwith
both hands and ensure
that it is latched
securely.
1
2
7
. Use “Diagnostic Tool” to set the
media
sensor type and
calibratethe selected
sensor. (Start
the “Diagnostic tool” 
Select
the “Printer Configuration” tab 
Click
the “Calibrate Sensor” button )
Please refer
to section5.3.
Path for outside wound
Path for inside wound
17
