Polaroid P420T

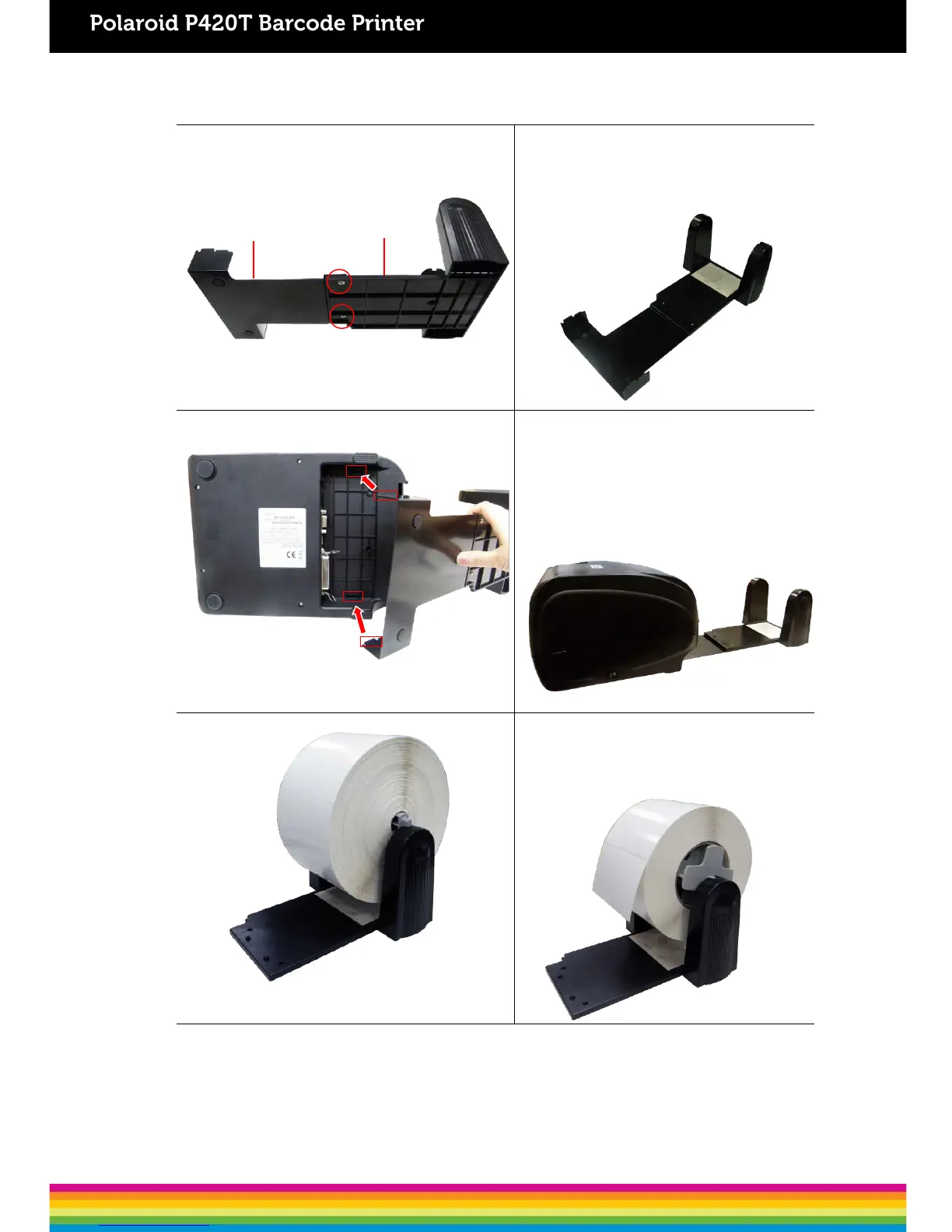

3.3.4 External Label Roll Mount Installation (Option)
Extended
External label
plate
rollmount
1.
Install the extended plate onto the
external
label roll mount with 2 screws.
2.
Attach the extended plate onthe
bottom
of the printer. If you
purchase the
external label roll
mount only, you’d just
need to put
it on the rear of printer.
3.
Insert a 3” (or 1”) label spindle intoa
paper
roll. And install it ontothe external
paper roll
mount.
21
1” label
spindle
3” label
spindle
