Polimaster PM1401MA User Manual

9
1.7 Accessories
The following optional accessories can be used with the PM1401MA:
• External vibrator;
• Telescopic extension pole;
• Protective holster;
• IR-adapter
All accessories can be ordered separately from the manufacturer and are not included
into the regular delivery set.
1.7.1 Telescopic extension pole
Optional telescopic extension pole can be used with PM1401MA to operate the
instrument in remote and hard-to-reach areas. It also allows connecting external vibrator to

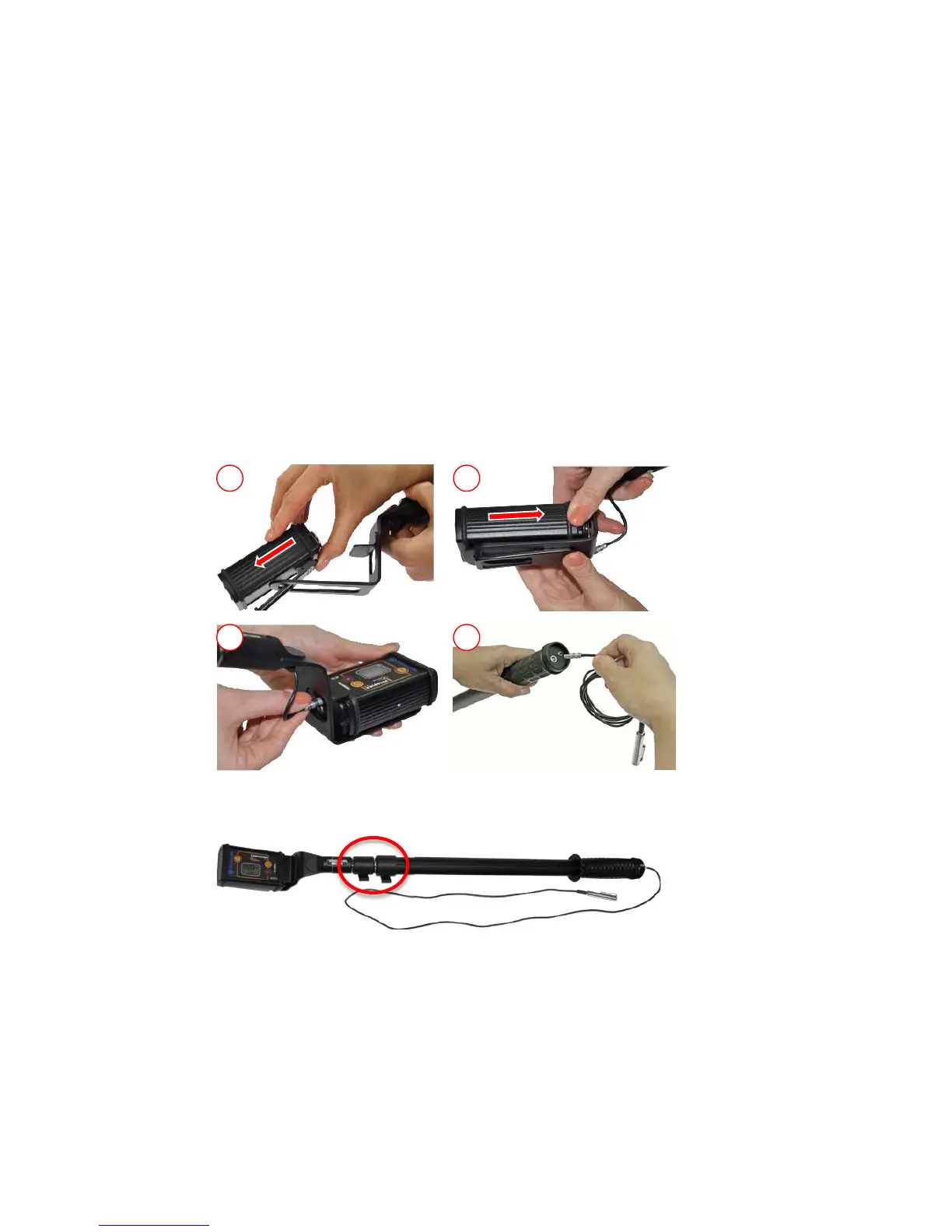

the pole handle and the instrument’s socket to use vibrator. The following figures explain
how to fix to and remove the instrument from the telescopic extension pole.
Follow steps 1 and 2 to mount the instrument onto the pole clamp. Connect the lower
pole connector to the instrument (step 3); connect the external vibrator cable to the handle of
the telescopic pole (step 4), following guidelines in section 1.6.1.
Adjust the length of telescopic extension pole by using two clamps located on the
handle (arrows on the figure above).
1.7.2 Protective holster
Optionally PM1401MA can be equipped with holster that provides additional
protection for the instrument from weather, dust and occasional drops. It can be also fixed on
the waist belt using belt loop.
1.7.3 IR-adapter

Polimaster PM1401MA Specifications

General

Detectors Gamma	CsI(Tl) scintillator
Sensitivity, gamma radiation Cs-137 Am-241	100 s-1/(µSv/h) / (1 s-1/(µR/h)) 100 s-1/(µSv/h) / (1 s-1/(µR/h))
Energy range Gamma	0.06 – 3.0 MeV
Indication range Gamma	0.01 µSv/h – 99.99 µSv/h / (1 µR/h – 9999 µR/h)
Response time	0.25 s
Measurement range Gamma (± 30 % at 137Cs)	0.1 µSv/h – 70 µSv/h / (10 µR/h – 7000 µR/h)
Alarm types	visual, audible and external vibrator
Drop test	1, 5 m (5 ft.) onto concrete surface
Power requirements	one AA size battery
Battery lifetime	Up to 1000 hours
Communication	IR interface
Memory	990 data points
Environmental Temperature range LCD indication Humidity	-30 to +50 °C (-22 to +122 °F ) -15 to +50 °C (+5 to +122, 5 °F ) up to 95 % at +35 °C (+95 °F )
Ingress Protection Rating	IP65

Weight and Dimensions

Dimensions	110х57х32 mm (41/3 х 21/4 х 11/4 in)
Weight, including battery	320 g. (11.29 oz)
