Poly Savi 8210 Office - Hook up system; Desk Phone Connection Options

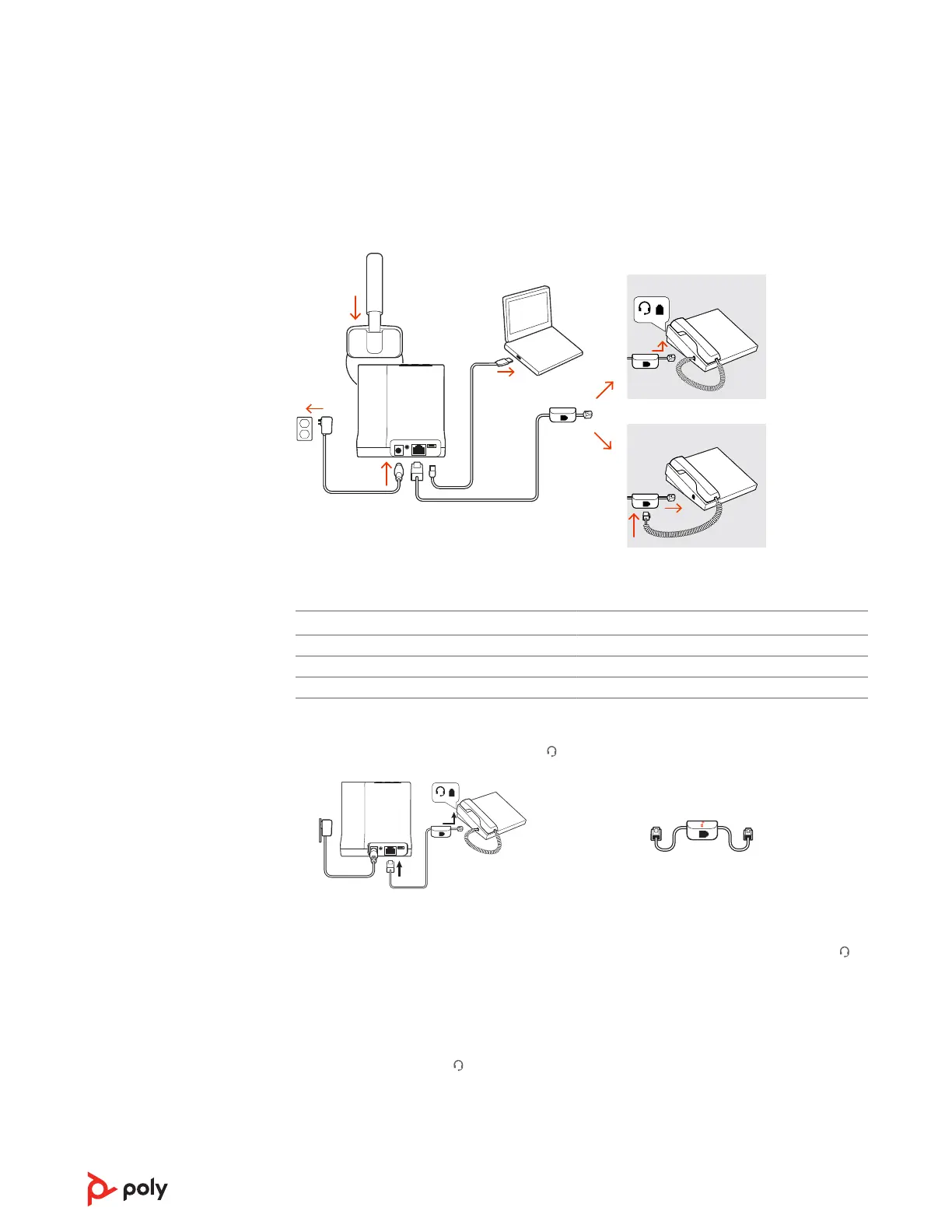

Using the diagram, connect your headset system.
NO HEADSET PORT
OR
HEADSET PORT
NOTE Base configuration settings
Desk phone Setting (on base's side panel)
Most phones A
Cisco phones D
Cisco phones with EHS cable A
Choose a desk phone setup A, B, C or D and connect cables.
A Desk phone with dedicated headset
port
USE
• Connect one end of the telephone interface cable to the back of the base
• Connect the other end of the telephone interface cable into the dedicated headset
port on the desk phone
IMPORTANT Cisco phones use configuration D on the side of the base. Most other phones
use default configuration A.
NOTE Use this setup if you are not using the HL10 lifter or EHS cable. In this configuration,
press both the headset button on your desk phone and the call control button on the
headset to answer or end calls.
B Desk phone (standard)
Hook up system
Desk phone setup
details
