Poly VVX D230 Quick Start User Guide

2.
10
7
8
6
5
11
12
3
2
1
9

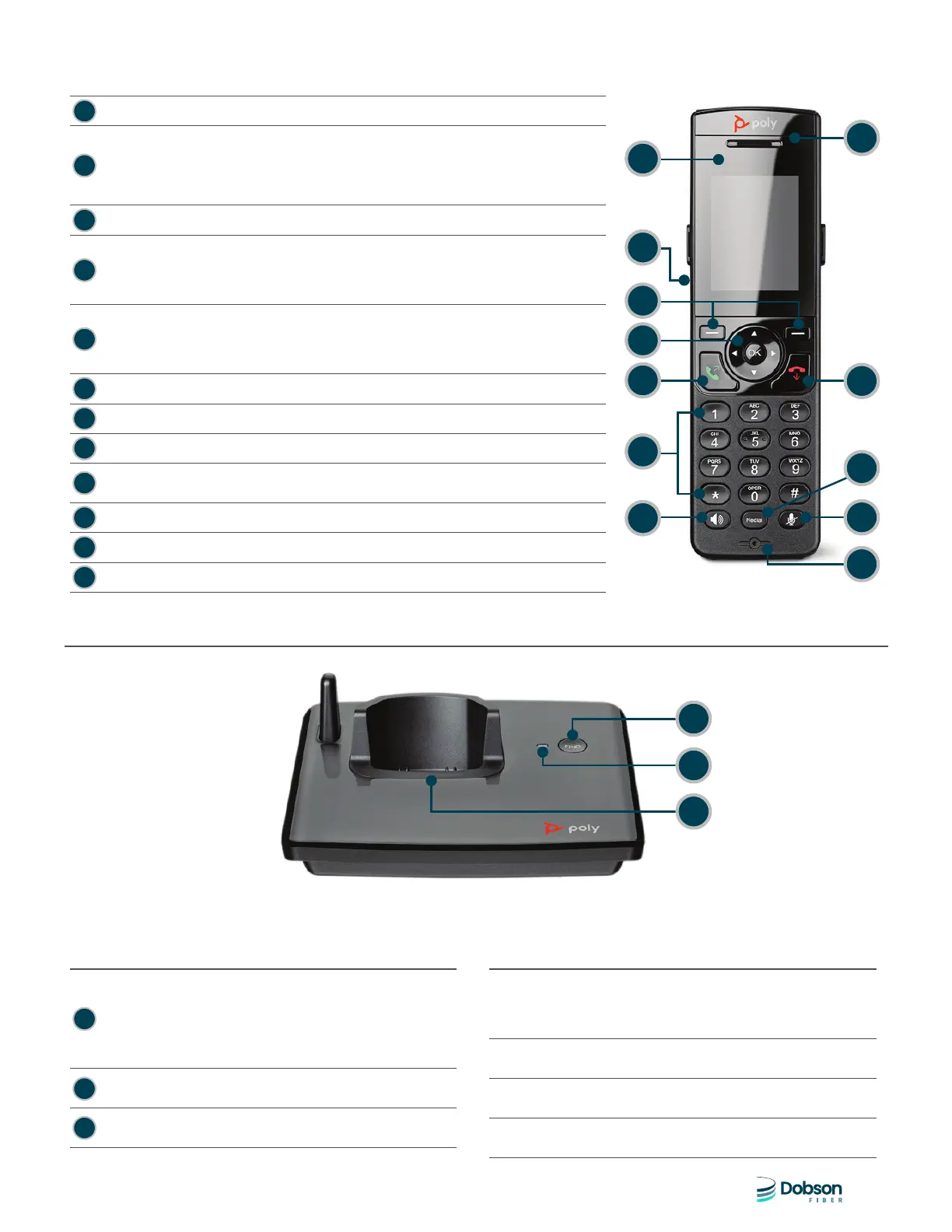

Hardware Features
Base Station Hardware Features Base Station Status Indicator
# Feature Feature Description
1
Soft Keys Select a menu item displayed above the key.
2
Navigation keys
/ OK button
Increase or decrease the ringer volume, scroll through menus,
or move the cursor within fields.
Press OK to enter the main menu, select a highlighted item, or
save an entry or setting while in a menu.
3
Call button Place a call, answer a call, or view recent calls.
2
4
Keypad
Enter numbers or characters.
Press and hold * to turn on or turn o the ringer.
Press and hold # to lock or unlock the keypad.
5
Speakerphone
Place or answer a call using the wireless handset speakerphone.
Switch between the wireless handset speakerphone and the
wireless handset earpiece during a call.
6
Microphone Transmits your audio during a call.
7
Mute button
Mute or unmute the microphone during an active call.
8
Redial button Redial the last dialed number.
9
End button
Hang up during a call or cancel the handset software update.
Press and hold to power on or o the wireless handset.
10
Earpiece Enables you to hear audio from contacts during a call.
11
LED Light
Flashes to indicate an incoming call, missed call, or new voicemail.
12
Headphone port Enables you to connect a headset to the phone.
# Feature Feature Description
1
Find
Press to locate the registered
wireless handsets.
Press and hold for 5 seconds or
more to register a wireless handset
to the base station.
2
2
Status Indicator
See VVX D230 DECT Base Station
Status Indicator table to the right.
3
Charging Cradle
Place the wireless handset in the
cradle to charge.
Base Station State Status Indicator Behavior
Powering On
On
Idle
Steady indicator
Waiting for network
to be ready
Repeatedly flashes on for 1 second
and o for 1 second.
Locating a handset
Repeatedly flashes on for 1 second
and o for 1 second.
Registering a handset
Repeatedly flashes on for 2 seconds
and o for 1 second.
4
3
2
1
The photo above shows the
Poly VVX D230 Cordless IP.
Other models dier.

Poly VVX D230 Specifications

General

Resolution	320 x 240 pixels
Connectivity	DECT
Lines	Up to 8 lines
Audio	HD Voice
Standby Time	Up to 100 hours
Headset Jack	3.5 mm
PoE	No
Bluetooth	No
Wi-Fi	No
Wall Mountable	Yes
Range	980 feet outdoors
Supported Codecs	G.711, G.729, iLBC, Opus
Compatible Platforms	BroadSoft
