Polycom
®
RealPresence
®
Group Series Media Center
Wall-Secured Setup Sheet Supplement
Polycom
®
RealPresence
®
Group Series Media Center with
Dual 42” AIO Displays
The Media Center components are heavy. Polycom recommends that two people perform the installation.
For more information about the components of the RealPresence Group Series Media Center, refer to the documentation at
http://support.polycom.com/PolycomService/support/us/support/video/group_series/group_packaged_solutions.html.
This product is intended for professional installation by a qualified installer. Before installing, ensure that the floor is
solid, level, and able to support the weight of the product. It is essential to correctly assess the strength of the wall to
ensure that the wall mounting hardware can safely anchor the product. If the installation of the wall mounting
hardware is not done correctly, the product could fall and cause severe injury or property damage. Polycom is not
liable for any injury or damage caused by mishandling or improper installation.
3
1

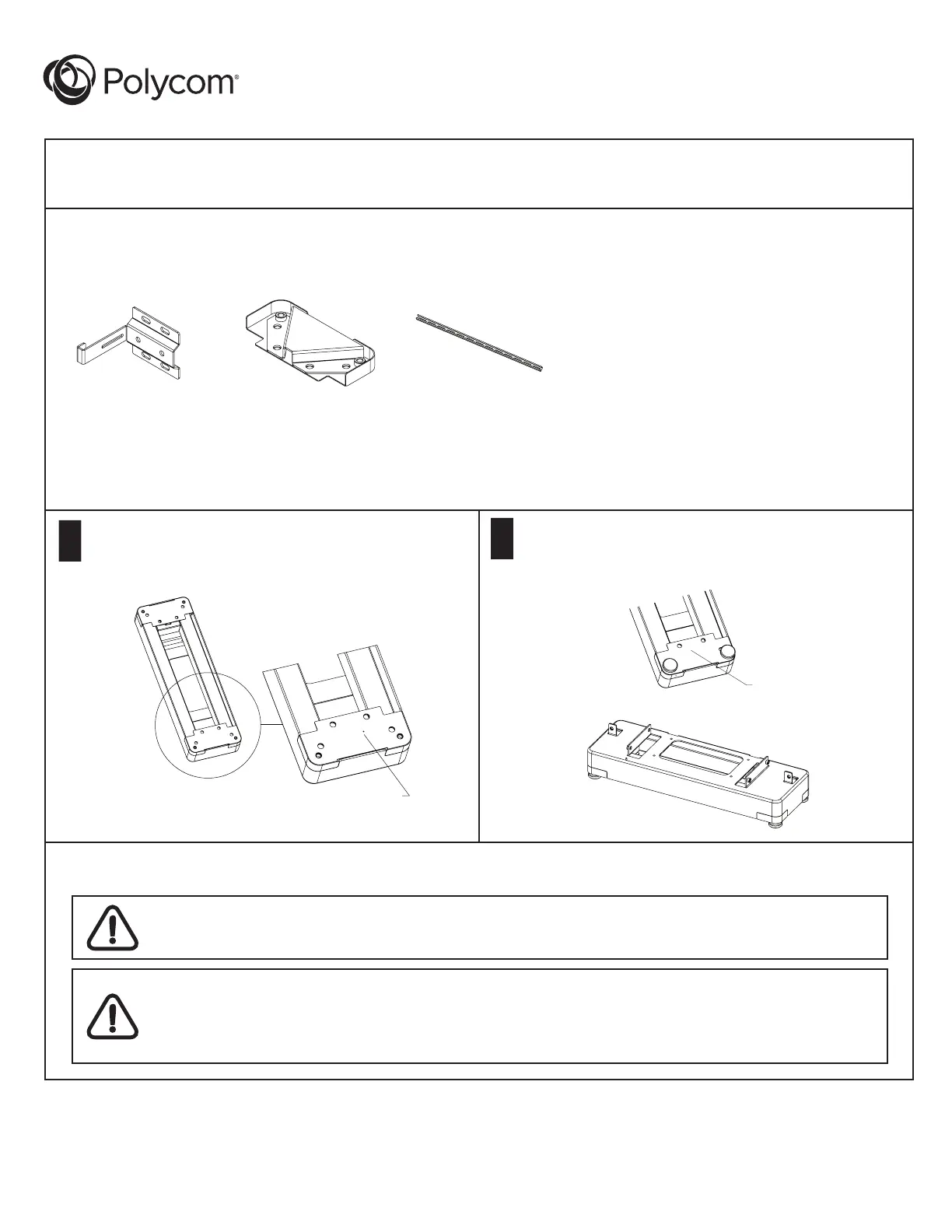

Remove the base from packaging and flip the base over.
Attach the two foot covers to the base using four M10 x 50
flanged socket head cap screws per leg. Note that the legs
are not used and can be stored for future use.
(2) Foot Cover
1345-69027-001
2
Install the supplied floor glides on the legs, using one flat
washer and one split lock washer per glide. Ensure that the
flat washer is closest to the leg surface.
With the assistance of another person, flip the base over.
(4) Foot Glide
Wall Mount Bracket
1342-68996-001
Foot Cover
1345-69027-001
Unistrut
®
1345-69027-001
3/8-16x1” Hex Head Screw
1601-25072-001
3/8-16 Flat Washer
1602-25065-001
3/8-16 Unistrut Nut with Spring
1600-25083-001
1/4 x 3.0” Lag Hex Screw
1601-12988-001
1/4 Washer
1602-61465-001
1/4-20x2.5” Hex Head Bolt
1601-61806-001
1/4-20 Toggle Anchor Insert
1650-28296-001
