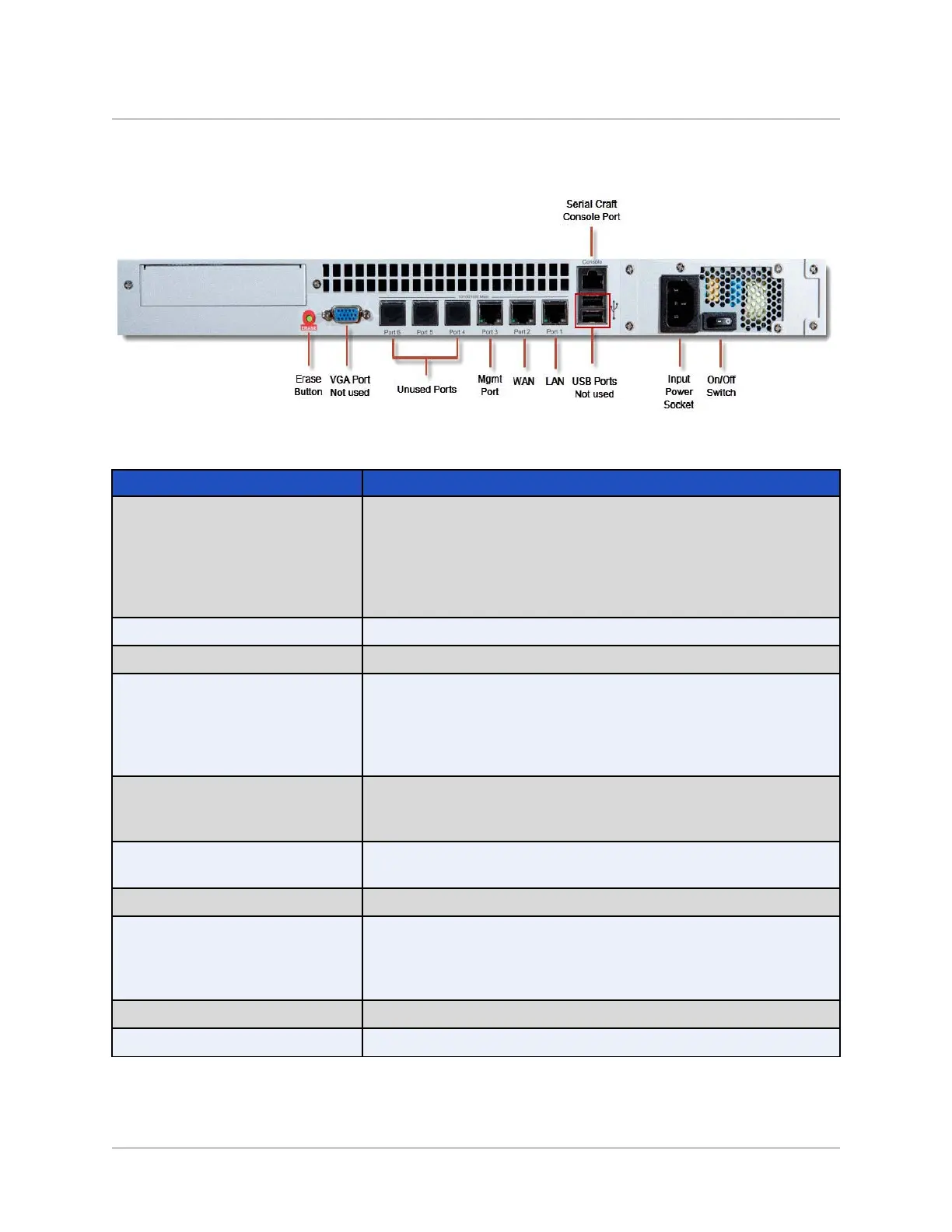

Polycom VBP 7301 Back Panel
Component Description
Erase Button One click—No action.
Two clicks—Resets the CLI and GUI password with no
service interruption.
Three clicks—Restores to factory default settings and
reboots the system.
VGA Port Currently not used
Port 6, Port 5, Port 4 Currently not used
Port 3—Management
Interface
1 x 10/100/1000 Mbps RJ-45 Ethernet port for optional
management network connectivity. This interface must not
be on the same network as the WAN or LAN subnets. This
network cannot be within a subnet contained in a “Route”
statement.
Port 2—WAN Interface 1 x 10/100/1000 Mbps RJ-45 Ethernet port for connectivity
to the WAN or Internet network connectivity. Default IP:
None
Port 1—LAN Interface 1 x 10/100/1000 Mbps RJ-45 Ethernet port for LAN
network connectivity. Default IP: 192.168.1.1
USB Ports Currently not used
Serial Craft Console Port 1 x RJ-45 serial craft console port for management.
9600-N-8-1 NONE for flow control. An RJ-45 to DB9
console cable is included in the box with the Polycom
VBP 7301.
Input Power Socket Accepts 3-pin shroud female plug for input power.
On/Off Switch System power on/off.
