Polycom VBP 7301 Hardware Installation Guide Components
© 2015 Polycom, Inc. All Rights Reserved. 4

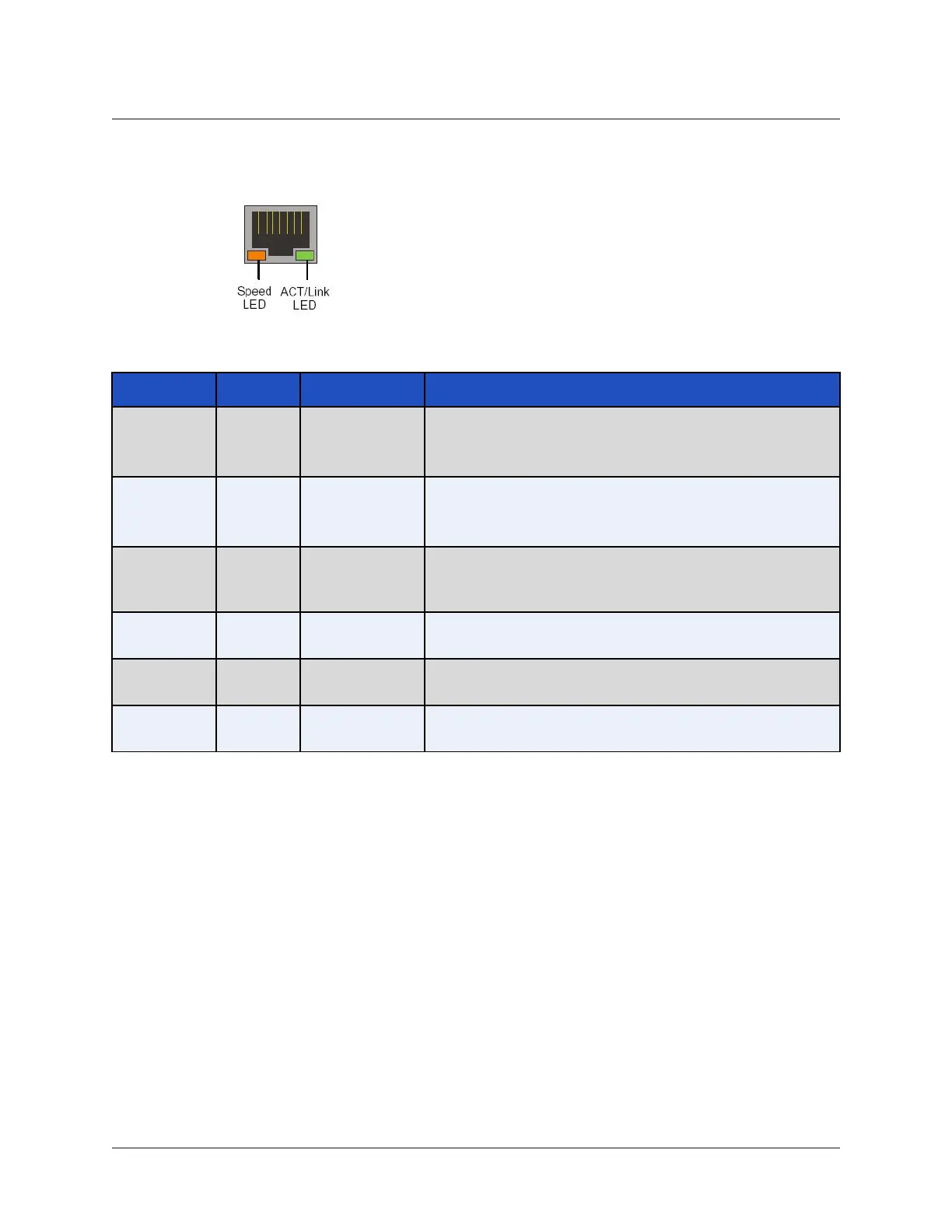

Polycom VBP 7301 Ethernet LEDs
Label Color Indication Status
ACT/Link Green On Ethernet port is receiving power.
Good link between the Ethernet port and the
connected switch.
Off The adapter and switch are not receiving power.
No connection between both ends of the network
cable. Check cable, replace cable.
Green Flashing The adapter is sending and receiving network data.
The frequency of the flashing varies with the
amount of data being transferred.
Speed Yellow On ACK/LINK LED must be on. This LED will show the
system operating at 1000 Mbps.
Green On ACK/LINK LED must be on. This LED shows the
system operating at 100 Mbps.
Off ACK/LINK LED must be on. This LED shows the
system operating at 10 Mbps.
