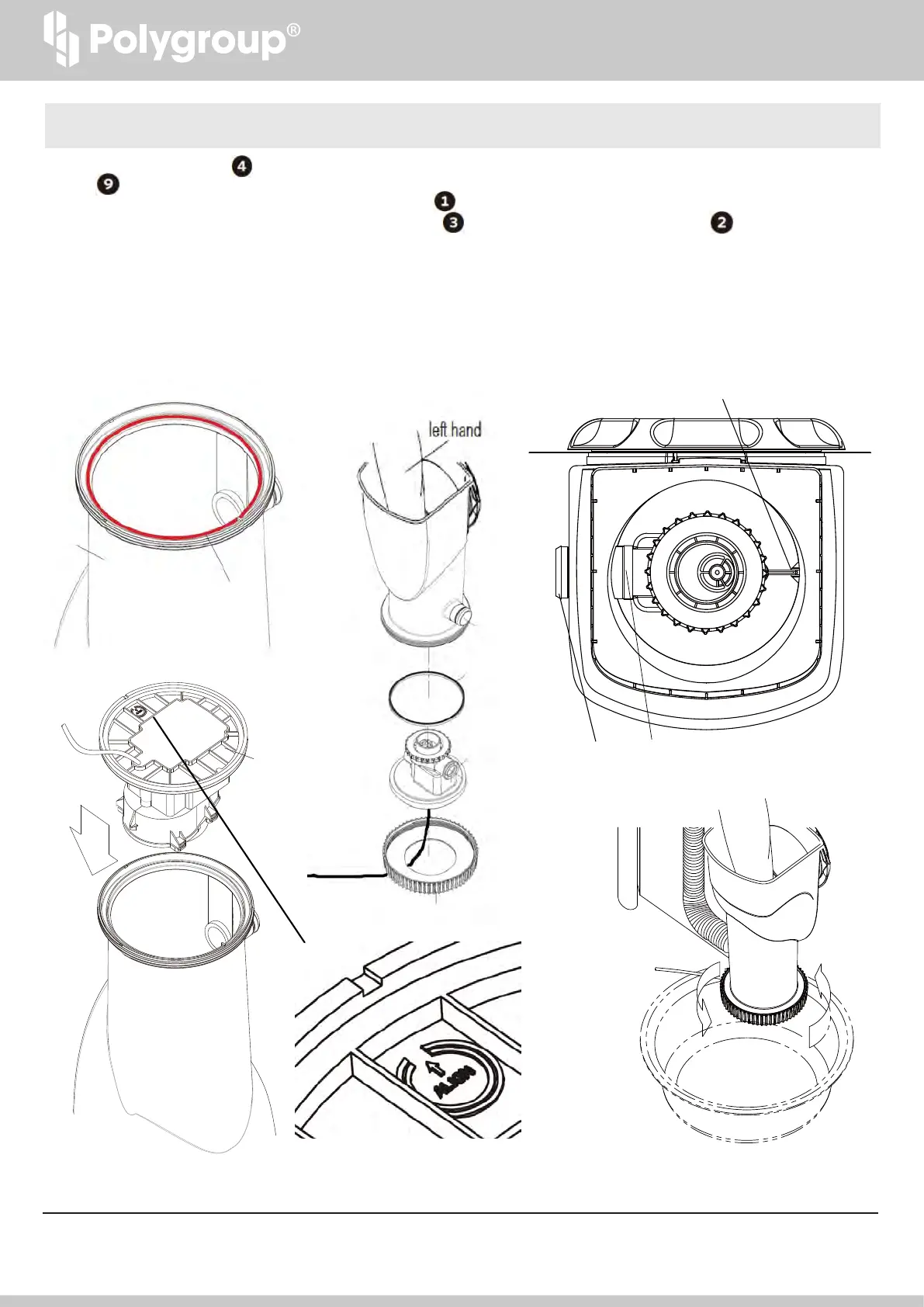

PUMP REPLACEMENT INSTRUCTIONS
Outlet of canister and rubber nozzle
on the pump should be aligned.
1.
Lubricate the motor seal gasket (if needed) and Insert it into the inner groove (SFX600/SFX1000) or single groove (SFX1500) on the bottom of the
canister .
2.
Please make sure the cord has been placed through the motor seal nut
before replacing pump. If the canister was left on the pool; reach
in through the
canister and pull the pump upwards. Slowly insert the pump motor assembly
back into the canister, so that the rubber
nozzle is aligned with the hose
opening on the canister. Please make sure the pump is correctly aligned, if it is not aligned correctly it can still lock on but may leak.
3.
If the canister was removed from the pool, once the pump is inserted into the canister, please make sure the arrow with the indentation is pointing to the
matching indentation on the canister. There is a groove on the pump that needs to be aligned with the notch on the canister (visible from bottom only).
4.
Slide the motor seal nut up to the canister base and carefully tighten onto the threads making sure it is not cross threaded. Cross threading can cause leaking
out of the bottom of the canister.
Make sure notch and groove are aligned.
Step 3.
Step 4.
TOP VIEW
Step 1.
Step 2.
BOTTOM VIEW OF PUMP AND CANISTER
Close Up
1
2
3
2
4
4
