Polytec OFV-511 - Control Elements of the Vibrometer


)LUVW6WHSV
&RQWURO(OHPHQWVRIWKH9LEURPHWHU
&RQWUROOHU
The front panel of the controller is shown in figure 3.1.
 32:(5 - L ED
The L ED lights up when the key switch on the controller is turned to posi-
tion I and indicates that the controller is ready to operate.
 0DLQV6ZL W FK
This key switch disconnects the vibrometer from the mains (position O)
and is used to switch it off in the case of danger.
 /LTXL G& U\VWDO' LVSO D\/&' with background lighting
This display shows the configuration and the settings of the vibrometer.
The organization of the display and how to use it to operate the vibrome-
ter are described in detail in section 5.9.
 )81&7,21 - keys
Using these keys the cursor is moved vertically up ( ↑) or down ( ↓ ) on the
display. This is used to select parameters or to change between menus
(refer to section 5.9.1).
 6(77,1 * - keys
Using these keys the settings are changed to higher (+) or lower (-) values
(refer to section 5.9.1).

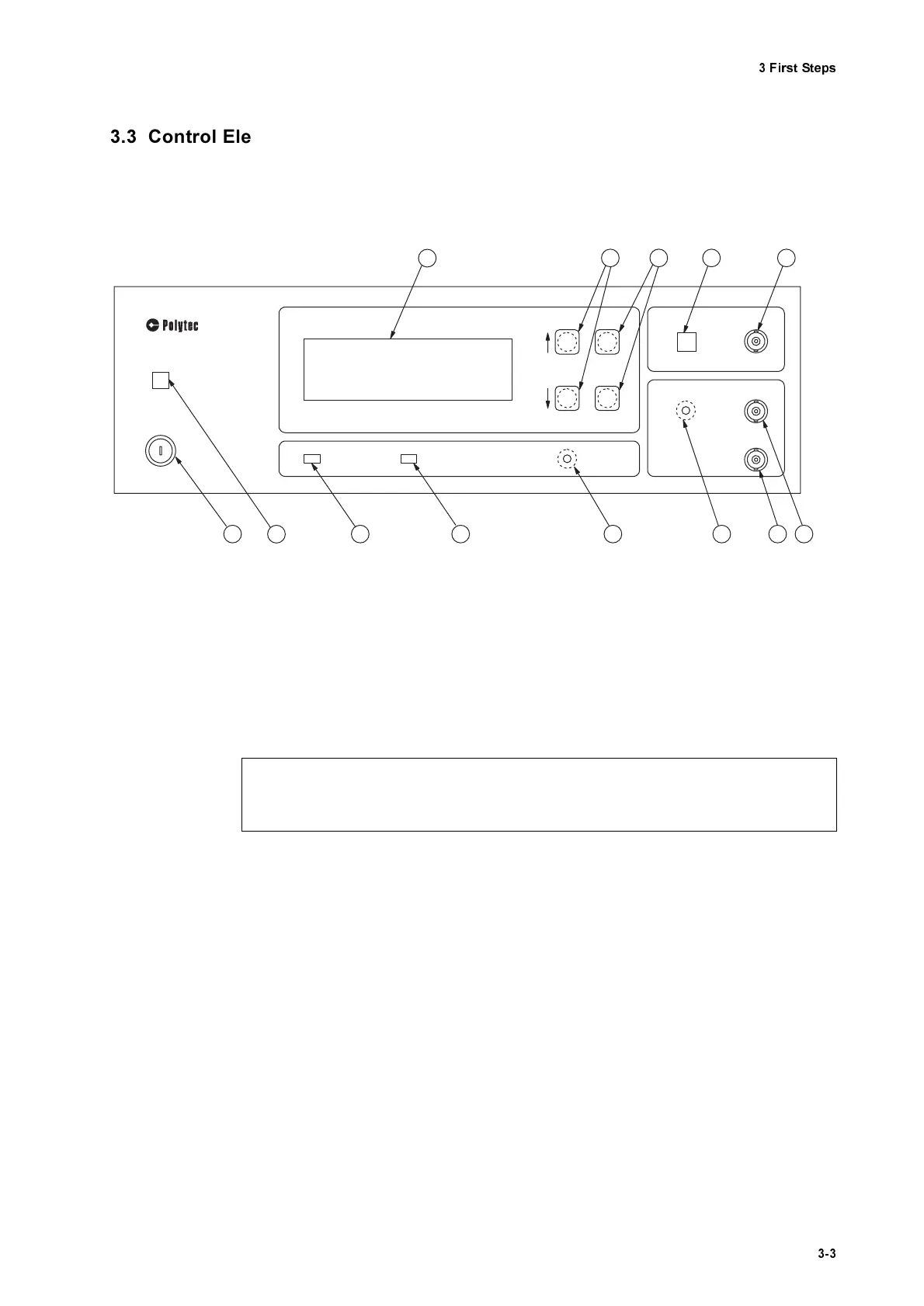

Figure 3.1: Front view of the controller
O
POW ER
O FV 3001
VIBRO M ETER CO NTRO LLER
3
2 13 12 11 10
LLO
REM OTE
RESET
FUNCTION
SETTING
4 5 6 7
+
-
OVER
OUTPUT
VELO CITY
DISPLACEM ENT
CLEAR
OUTPUT
9 8
I
1
&DXWLR Q 
$OZD\V connect the connecting cable to the sensor head EHIRUH switching the controller
on!
