)LUVW6WHSV
 0LQL VHQ VRU V (Diameter 10mm)
Each mini sensor contains a lens to focus the laser beam. The mini sen-
sor of the reference fiber is marked with a red dot. Exchange of the mini
sensors with fiber heads is described in section B.3.
The back panel of the sensor head OFV-512 is shown in figure 3.8.
 7UDQVSRUWKDQGOH
 6HQVRUPR XQW
To transport the sensor head the mini sensors can be plugged into this
sensor mount.
 6,* 1$/352&(6625 - connector (Sub-D jack)
Jack for the connecting cable to the controller
 7UDQVS RU W VDI HW \ PHF KDQ LV P
The transport safety mechanism is (de)activated by turning the screw with
the Allen key provided (refer to section 5.8).
1RWH
Each mini sensor is exactly adjusted to its fiber. 1HYHU exchange the mini sensors of a
sensor head with each other or with mini sensors of other sensor heads!

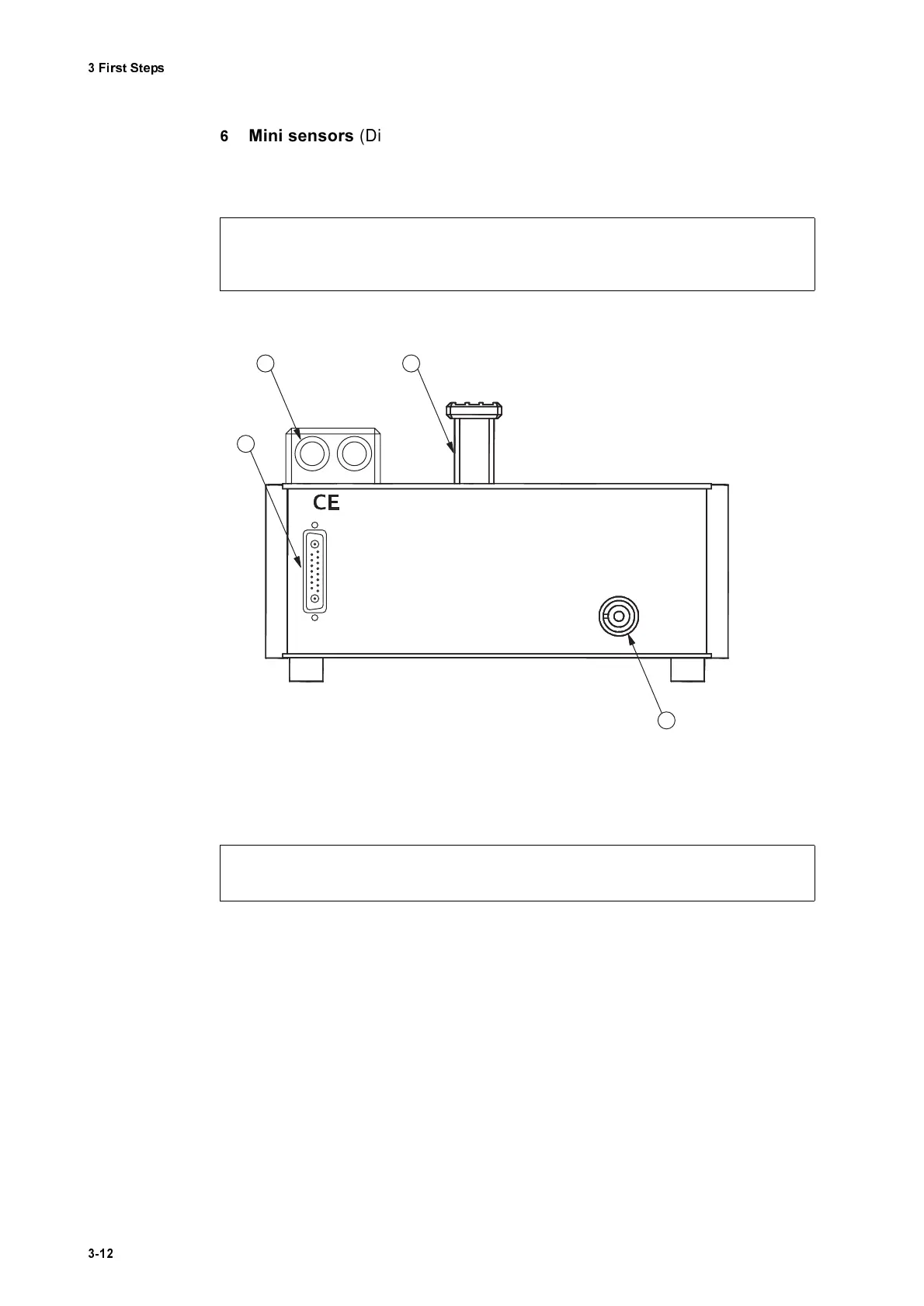

Figure 3.8: Rear view of the sensor head OFV-512
8 7
SIGNAL
PRO CESSOR
ACHTUNG!
Bitte vor dem Transport
die Transportsicherung betätigen
CAUTION!
Please secure transport m echanism
before shipm ent
M EASUREM ENT
TRANSPORT
9
10
&DXWLR Q 
$OZD\V activate the transport safety mechanism EH IRU H moving the sensor head!
