$ 2SWLRQDO$ FFHVVRULHVIRUWKH6HQVRU+HDG2)9
$ 7LS 7LOW6WDJH2)93ZLWK2SW LRQDO7DUJHWLQJ7HOHVFRSH
The OFV-P5 is a tip-tilt assembly which allows fine positioning of the laser
beam when working at long distances. With this unit the laser beam can be
tilted
±
1.5 degrees in horizontal direction and
±
1 degree in vertical direction
(refer to figure A.4). The optional telescope is fitted with an interference filter
for the laser wavelength (632.8nm) to enhance the spot in daylit conditions.
The ready assembled tip-tilt stage is shown in figure A.3.
The underside of the assembly has standard M6 and 1/4" threads as well as
the mountings for the hexagonal quick release Manfrotto tripod system (refer
also to figure A.4).
7HFKQLFDO
VSHFLI LFDWLR Q

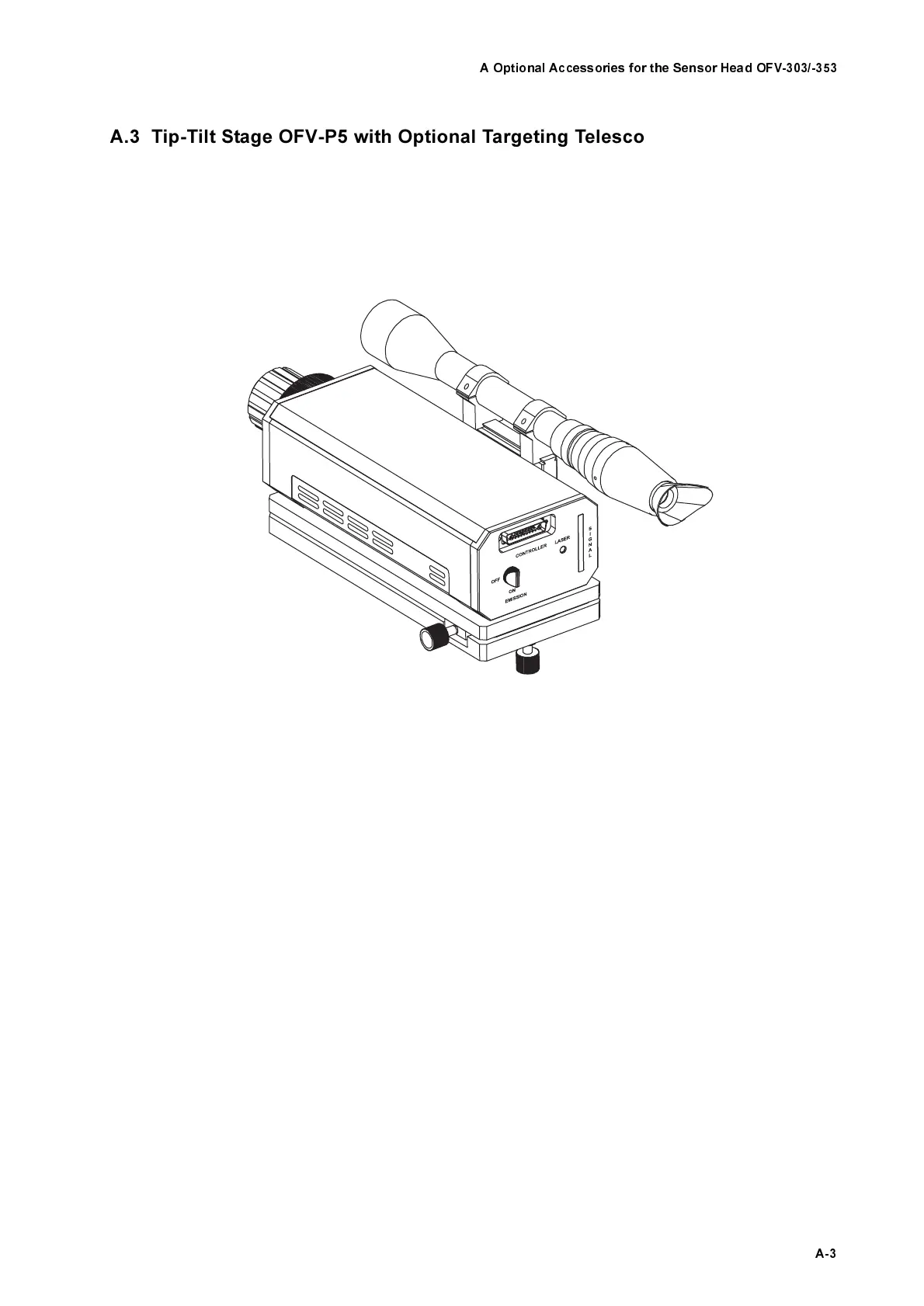

Figure A.3: Tip-tilt stage OFV-P5 with fitted targeting telescope and sensor head
Tilt in horizontal direction:
±
1.5°
Tilt in vertical direction:
±
Weight tip-tilt stage: 2.4kg
Weight incl. targeting telescope: 3.0kg
Dimensions: refer to figure A.4
