%2SWLRQDO$FFHVVRULHVIRUWKH6HQVRU+HDG2)9
%)OH[LEOH$ UP2)9
The flexible arm OFV-039 is a mount device for the mini sensor of the sensor
head OFV-511/-512. The mini sensor can thus be easily positioned in places
which are difficult to access. The heavy steel base ensures that it stands
securely and if required the steel base can be screwed onto the surface
beneath via the drilled mounting holes (refer to figure B.5). Alternatively, the
flexible arm can be attached to any magnetic surface which is large enough
using the magnetic base. The flexible arm is shown in figure B.4.
Base plate with drilled mounting holes (refer also to figure B.5)
Magnet foot with switch
Locking wheel for the joints
Knurled screw for fine positioning
Mount for the mini sensor
Allen screw M3 to mount the mini sensor
7HFKQLFDO
6SHFLI LF DW LR Q

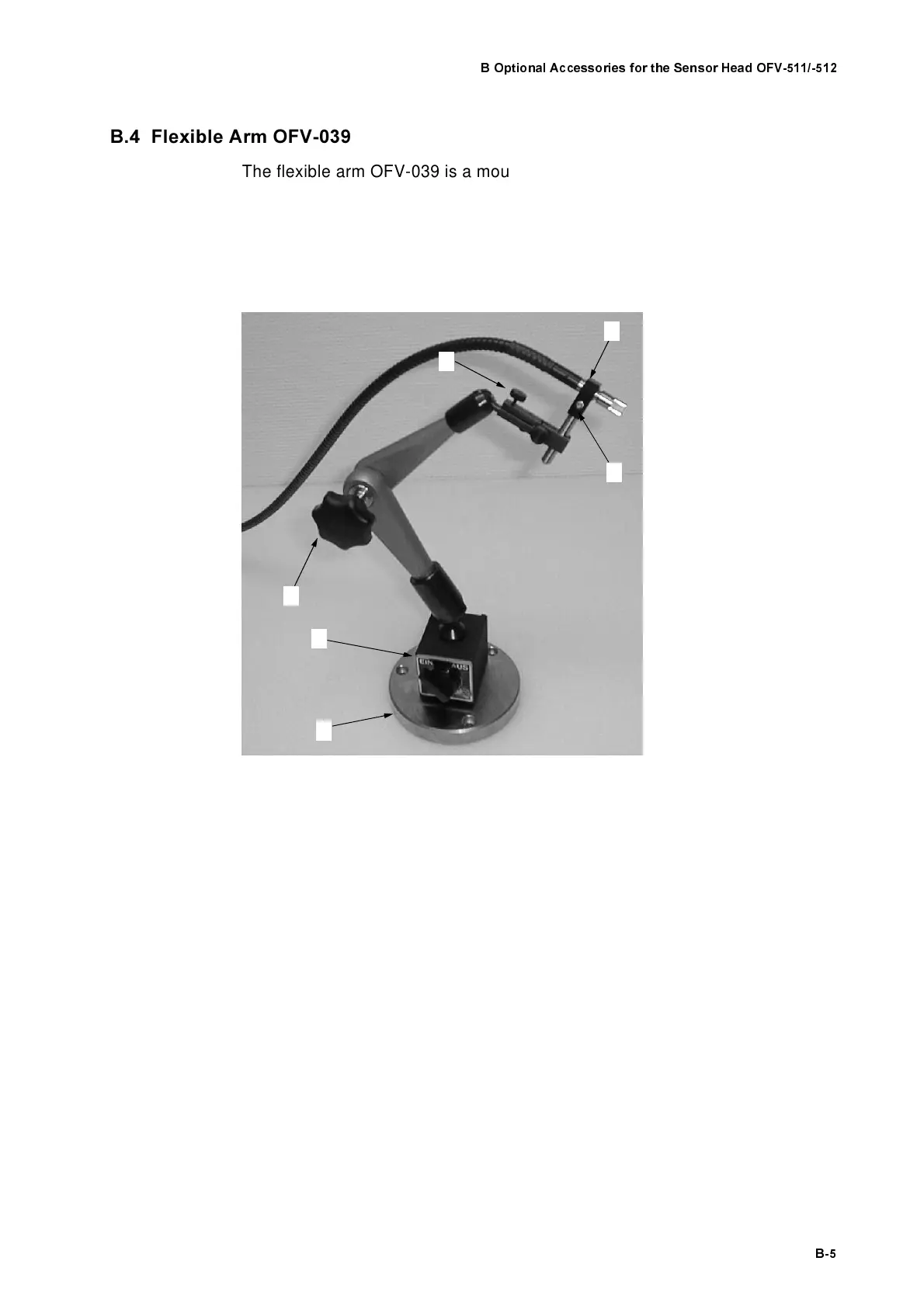

Figure B.4: Flexible arm OFV-039 for the mini sensor
1
2
3
4
6
5
Weight incl. base plate: 3.2kg
Height: max. 400mm
Base plate dimensions: refer to figure B.5
