14
communication fault
Blinking Green: System is turned off by energy
management unit
Solid Green: System running normally
Run Indicator
Solid Green: Inverter/PV charging unit running normally
Solid Red: Inverter unit fault
Solid Yellow: PV charging unit fault, or system into over-
temperature protection
Blinking Yellow: Inverter/PV charging unit alarming
Blinking Green: Inverter unit/PV charging unit updating
Power Indicator
On: Grid/Generator/Load power is normal
Off: No power input
Blinking: Grid/Generator/Load power is abnormal
(2)

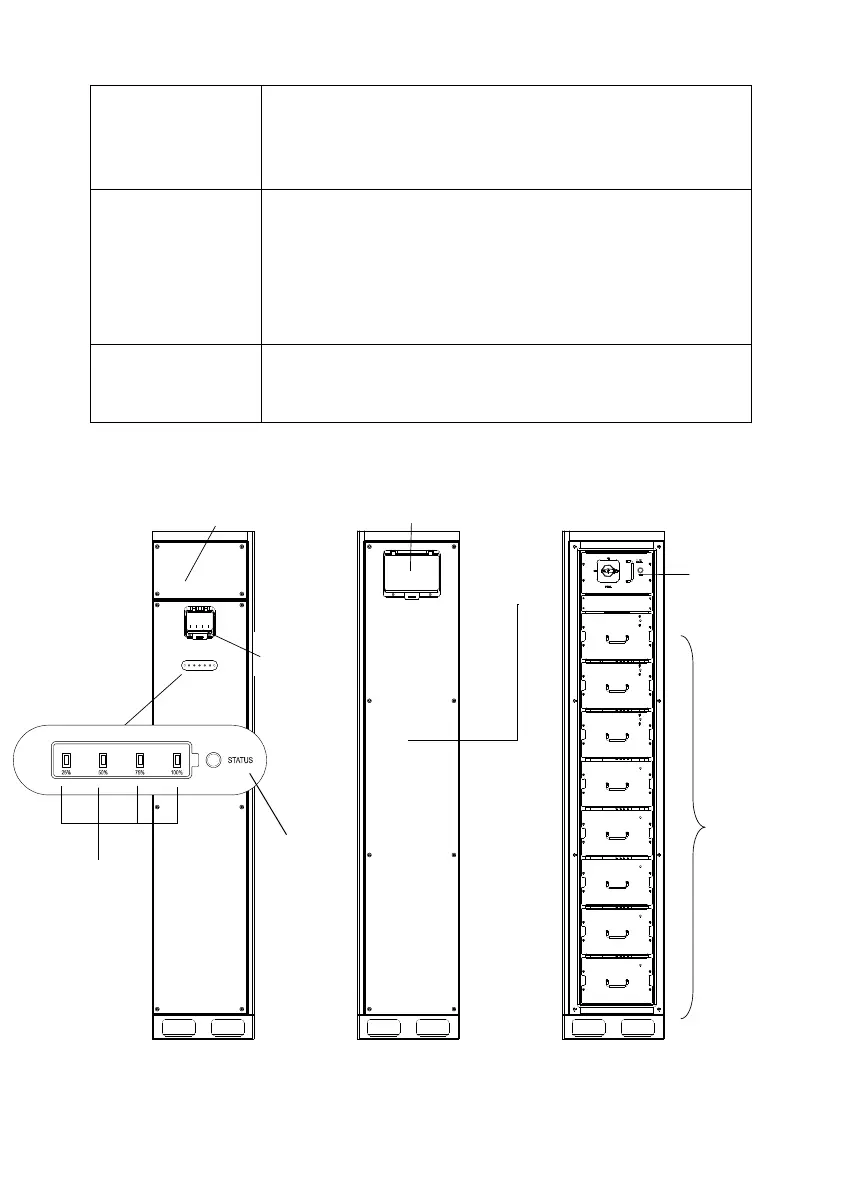

Rechargeable lithium (LiFePO4) battery system
Battery System(waterproof)
Battery
Modules
BCMS
Module
Wiring Box
Battery
System
Status
Indicator
SOC
Indicator
Fuse Box
Operation Panel
Enclosure
Door
