Automatic boiler for wood pellets
Instructions for installation and operation
The design has to adhere to the following standards and regulations:
5.3.1 Heating system and boiler:
ČSN 06 0310 / 1983 – central heating, designing, installation.
ČSN – EN 303.5./2000 – boilers for central heating, part 5.
ČSN 06 0830 / 1996 – security systems for central heating and heating of hot service water.
ČSN EN ISO 12100-2/2004 - structure and versions of boilers.
5.3.2 Venting:
ČSN-EN 1443 – Chimneys – general requirements 734200 (9/2004).
ČSN 73 42 01 – Chimneys and fume ducts.
Designing, implementation and connection of fuel consumers (11/2002).
Pressure and temperature conditions necessary for safe operation of heat installations are described
in the following standards: ČSN 73 4201 and EN 13 384-1 and EN 13 384-2.
Installation of chimneys and fume ducts as well as connection of fuel appliances are governed by the
following standard: ČSN 73 42 10.
Recommended draught of chimney has to be within the range specified by the manufacturer (see
figure number 9) in connection with the installed power output of the boiler.

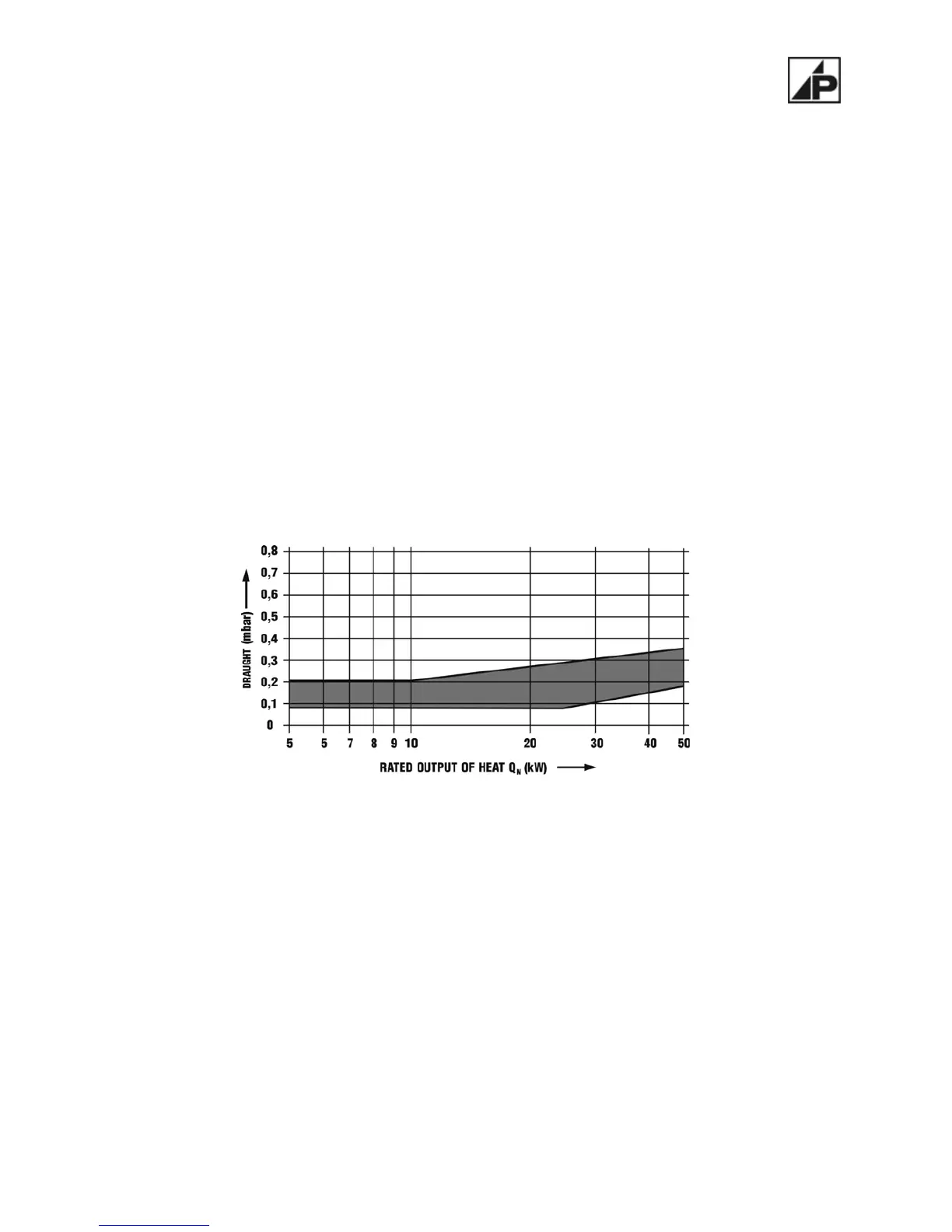

Figure number 9 - Recommended draught of the chimney
Chimney systems resistant to humidity in which condensation of water vapour is permitted are
recommended in order to ensure long-term trouble-free and safe operation of the boiler.
(Chimneys resistant to humidity are recommended for appliances with temperature of combustion
products from 30°C to 100°C.)
5.3.3 Fire regulations:
ČSN 73 0823 / 1984 – fire and technical properties and combustibility grades
ČSN 06 1008 / 1997 – fire safety of heat installations, structure of boilers from fire safety
aspect
5.3.4 Electrical:
ČSN – EN 60 335-1 / 1997 – safety of electric appliances.
ČSN – EN 50 165 / 1999.
5.3.5 Noise control: Government decree number 502/2000 Coll.
