POOLEX Nano - Exploded View

11

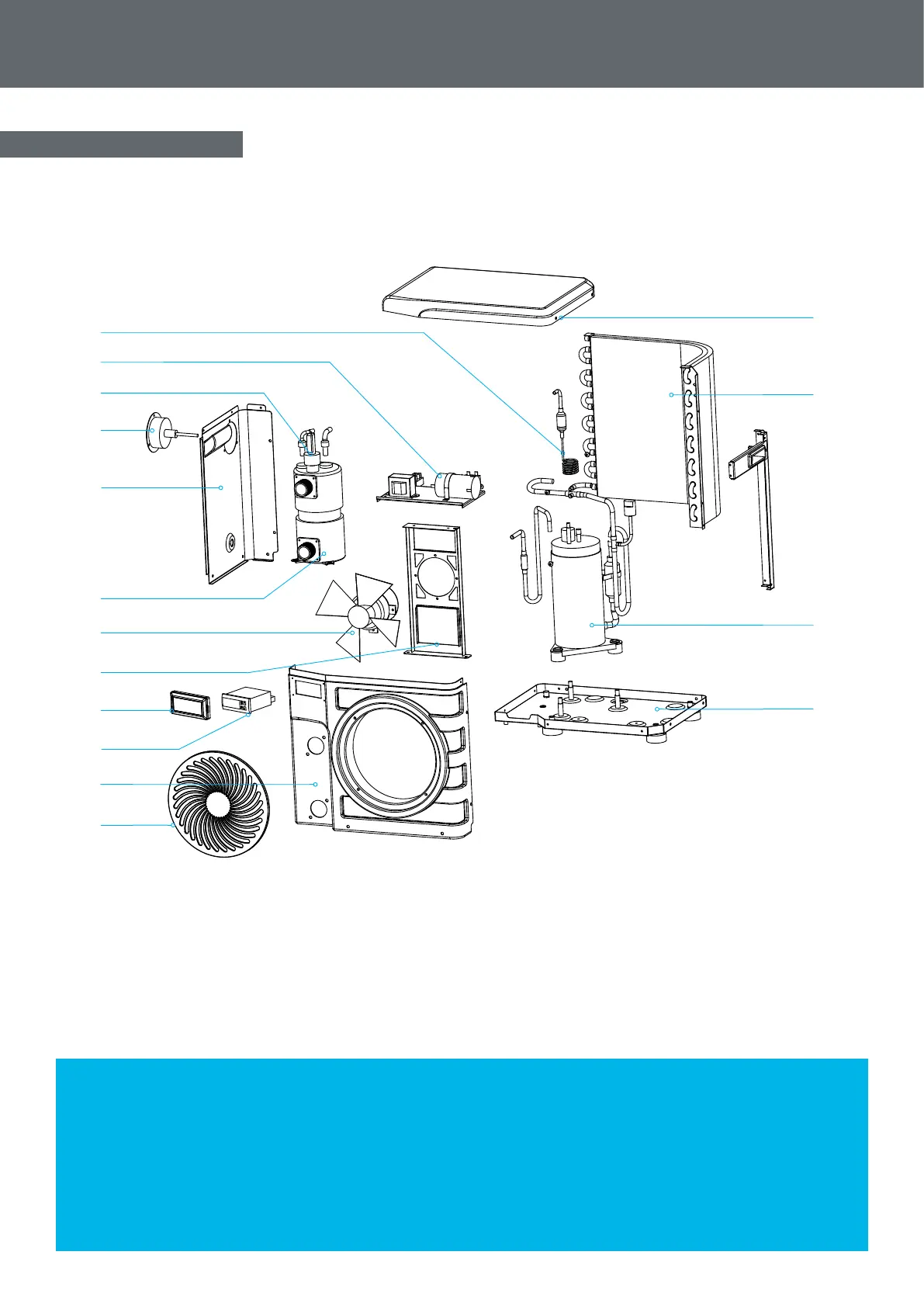

2.5 Exploded view
1. Base plate
2. Compressor
3. Evaporator
4. Top panel
5. Throttling parts
6. Electrical control box
7. Flow switch
8. Pressure gauge
9. Left side panel
10. Heat exchanger
11. Fan and motor
12. Fan support
13. Control panel cover
14. Control panel
15. Front panel
16. Fan protective grill
2. Description
1
2
3
4
5
8
11
13
16
10
12
6
9
7
14
15
