POOLiN EOC565 - Treading the Top Thread

1.
2.
3.
4.
5.
6.
2.
4.
3.
5.
6.

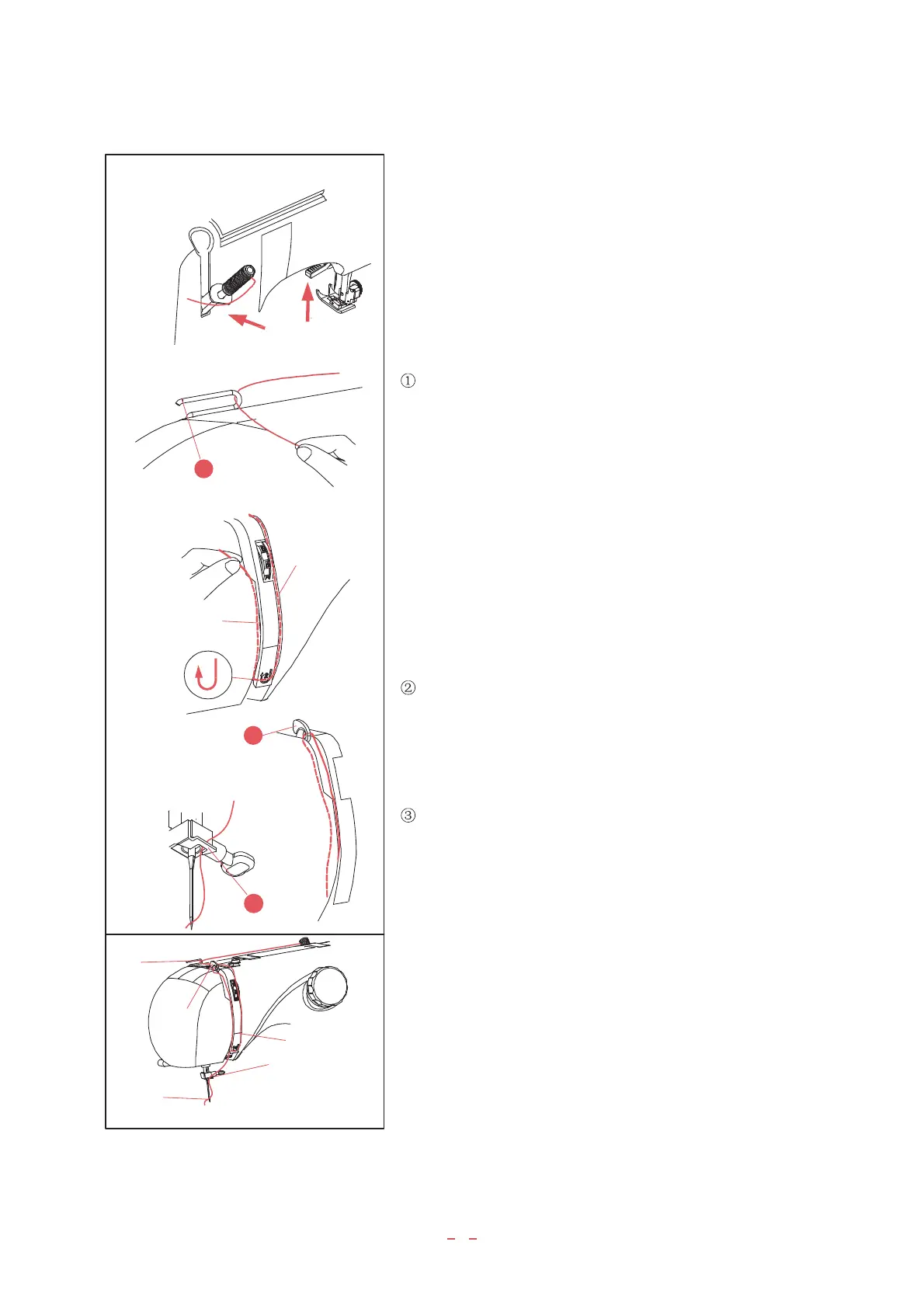

Threading the top thread
1. Place the top thread in spool holder, with direction shown in
diagram. Rotate the hand wheel to lift the take-up to the highest
position. Lift the presser.
2. Move the top thread round cross thread carrier.
Cross thread carrier
3. Downwards move the top thread round the right groove of
thread holder base, upwards pull and move it round thread
holder base and upwards pull the thread through left groove of
thread holder base.
4. From right leftwards pull the top thread through take-up lever,
insert it into the hole on take-up lever and pull the thread
downwards along the left groove.
5. Leftwards pull the top thread through guide-way on needle
bar.
Take-up lever
Schematic diagram of machine threaded as le
Needle bar guide way
6. Thread the needle from front to back.
ft.
Right groove
Left groove
