Part Caring for your machineVI

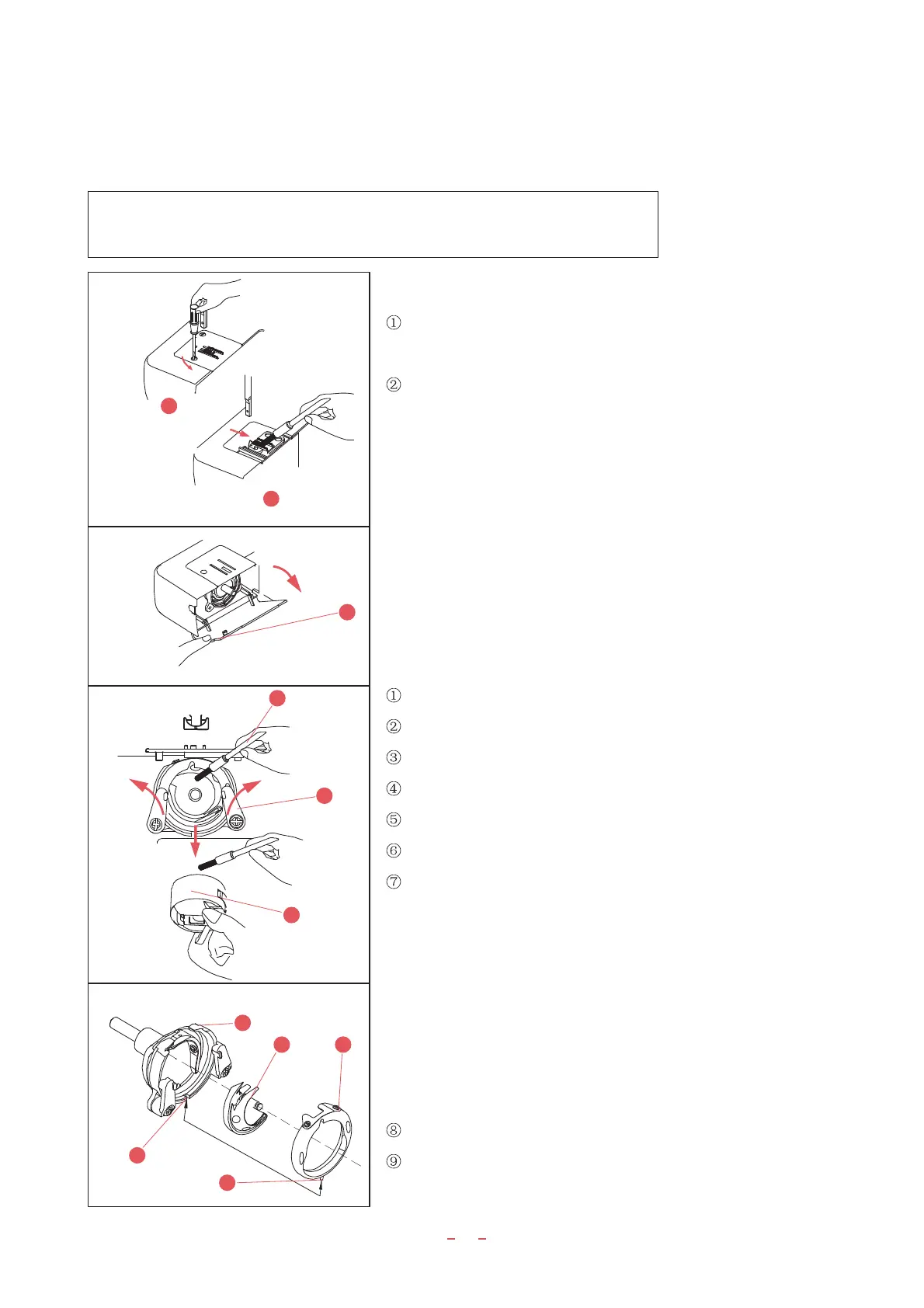

Cleaning feed dog
Take out needle and presser, remove screws from needle
plate with screw driver and take out the needle plate.
Brush out dust and cotton flock from feed dog and replace
needle plate.
Cleaning shuttle race
(1) Open bobbin access cover
(2) Adjust the needle to the highest position, open presser foot of
shuttle race cover and take out bobbin components.
(3) Open bobbin case latch, take out bobbin case, open stopper of
shuttle race back to take out shuttle race back and clear off dust
and cotton flock from shuttle race and bobbin case with brush or
dry soft cloth.
Bobbin case
Shuttle keeper
Shuttle race cover
Oscillating shuttle
Shuttle race
Brush
Bobbin access cover
Fixing shuttle race
Hold intermediate shaft of oscillating shuttle and replace it to
shuttle race to make the semi-circle of oscillating shuttle and
semi-circle of shuttle race to form an integral circle, replace the
shuttle race cover, align the pin on the bottom of the shuttle race
back with the slot on the shuttle race, reset the stopper of shuttle
race cover to the previous position and place bobbin case.
Pin
Slot
Note:
Before the following operation, please withdraw the power plug from socket.
1
7
6
2
1
5
9
8
4 3
2
(1)
(2) (3)
15
