PORA PR-DTC-3000 User Manual

9
PORA ELECTRIC MACHINERY CO.,LTD.
PR-DTC-3000 Type
12. Status
Indicator
2. LCD Display Descriptions
ltz
32.5 L
  
 



7


FRXQW
FQW
pY
(
ڪڰگ
ڮگڜڭگ
ڮۏۀۋڱ
ڞڪڰکگ
%"5"
uwu
ڨڜکڰ
 
1. DATA 2. EMS
4. EMS Output ratio
5. Output %
6. Output V
7. Weak excitation
voltage
8. COUNT
10. START
11. COUNT
13. MODE
9. StepV
3. SENSOR

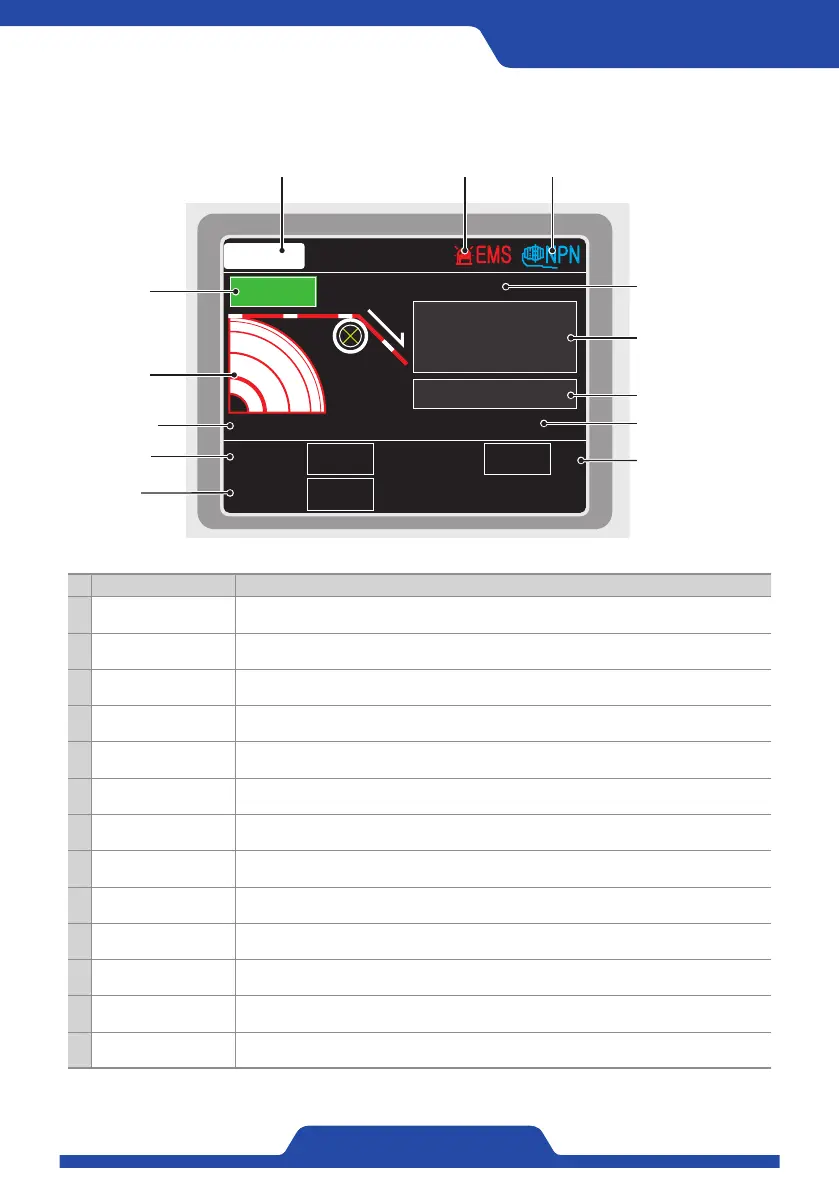

Display Descriptions
1 DATA The data (fabric information) number currently used is displayed.
2 EMS It is displayed when the controller is operated.
3 SENSOR It indicates whether the sensor mode is PNP or NPN.
4 EMS Output ratio It indicates the emergency stop rate set by the user when the controller is stopped.
5 Output % The current output value is displayed in percent.
6 Output V The current output value is displayed in volt.
7 Weak excitation voltage It is displayed when the weak excitation voltage is set (0 % or higher).
8 Number of revolutions It shows for how many revolutions the set variable voltage is applied.
9 StepV It shows the voltage changing during the set number of revolutions.
10 STA RT It shows the starting voltage of output.
11 COUNT It indicates the number of revolutions of the fabric (the axis of rotation)
12 Status Indicator It displays the ‘unwinding’ or ‘rewinding’ condition.
13 MODE It displays ‘auto mode’ or ‘manual mode’ condition.

PORA PR-DTC-3000 Specifications

General

Brand	PORA
Model	PR-DTC-3000
Category	Controller
Language	English
