PORA PR-DTC-3000 User Manual

18
PORA ELECTRIC MACHINERY CO.,LTD.
Taper Tension Controller
- When manual mode is selected, the last output value
inthe previous auto mode becomes effective as manually
controlled output and the value is displayed on the output
display window. At this time, turning the [DIAL] left or right
increases or decreases the control output.
- After the mode is switched from manual to auto, it is
converted to a value equivalent to the start voltage.
- The minimum voltage value which can be set as variable
voltage value is 1 mV, and can be set to a value lower
or higher than the current gradient with a limitation that it
should be higher than 1 mV
- The maximum number of revolution when the minimum
voltage is set is 24,000.
- If the number of revolutions exceeds 24,000, it can be
resolved by changing the value in Revolution Number
Setup below.
- The maximum range of the number of revolution which
can be set is 999.
number of revolution = 1:1, starting voltage = 0, variable voltage = 1mV setting
3. Operation Details

563/-&'5
563/3*()5
7" -6&
%*"-
065165

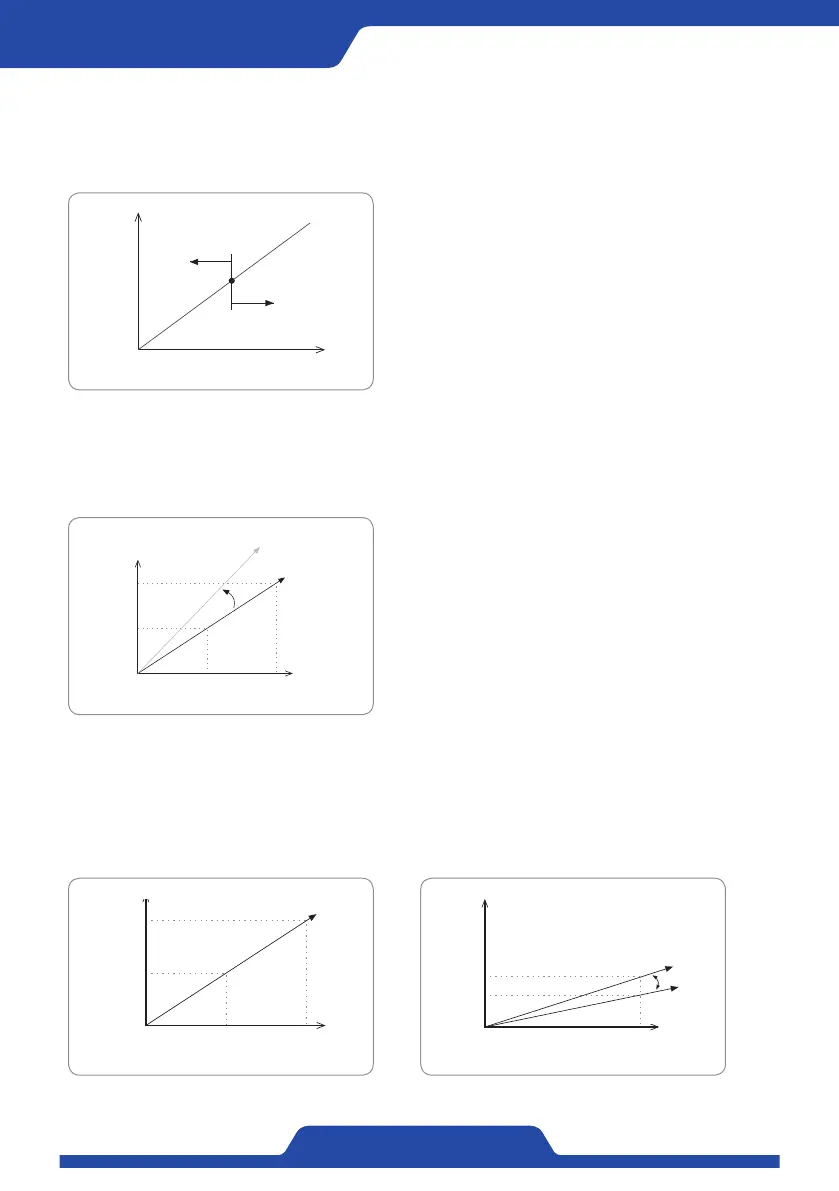

1)Manual adjustment of torque and the role of the dial
2)Relation between number of revolution setup and output voltage
(examples of basic setup of winding)
3)When the number of revolutions in the basic setup is changed
7
7
4FUUIFJOJUJBM(SBEJFOUWPMUBHF

DPVOU DPVOU
065165
7
7
$06/5
$06/5
(SBEJFOUWPMUBHF

DPVOU
065165
7
7
$06/5
(SBEJFOUWPMUBHF

DPVOU DPVOU
065165
