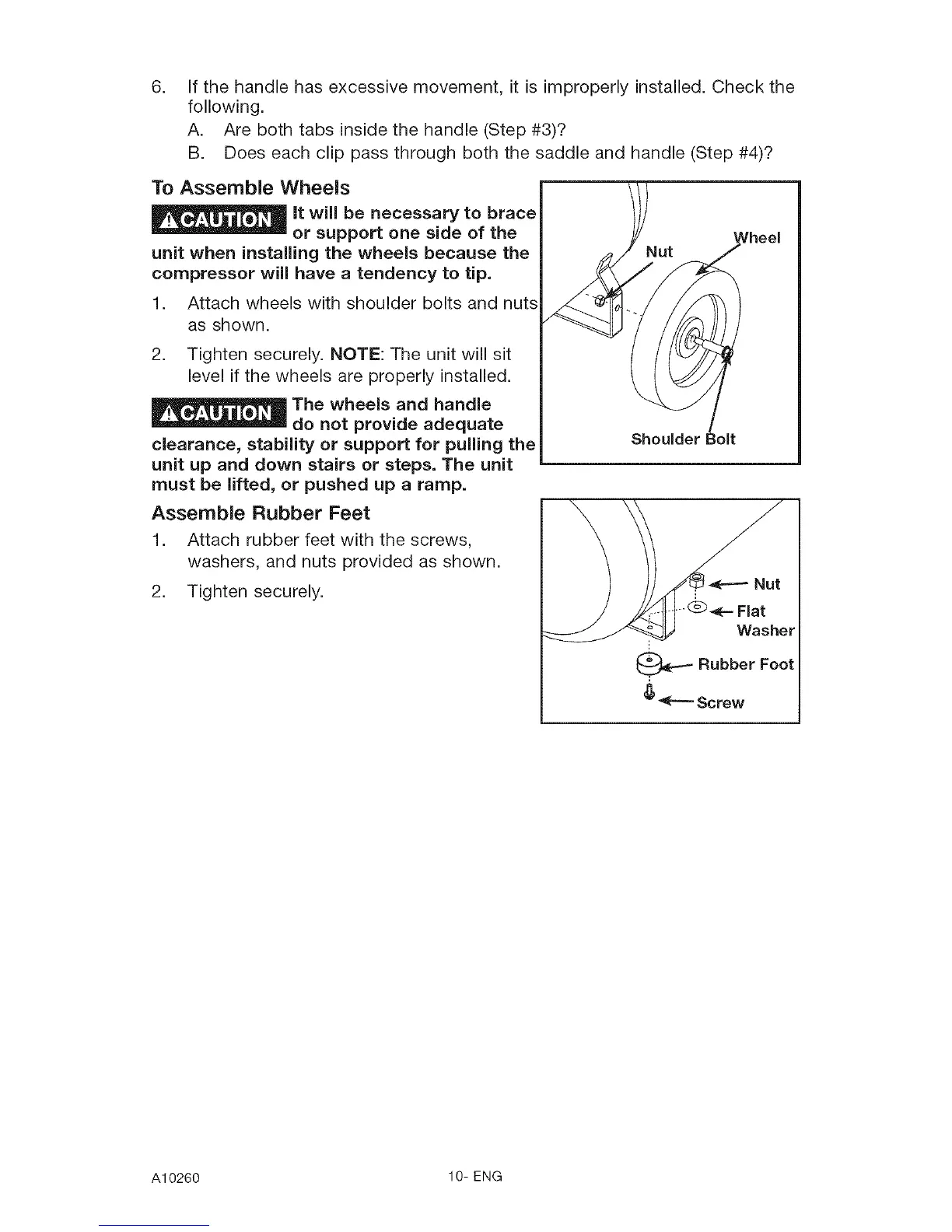

Porter-Cable C5510 - To Assemble Wheels; Assemble Rubber Feet

6.
If the handle has excessive movement, it is improperly installed. Check the
following.
A. Are both tabs inside the handle (Step #3)?
B. Does each clip pass through both the saddle and handle (Step #4)?
To Assemble Wheels
lt will be necessary to brace
or support one side of the
unit when installing the wheels because the
compressor will have a tendency to tip.
1. Attach wheels with shoulder bolts and nuts
as shown.
2. Tighten securely. NOTE: The unit will sit
level if the wheels are properly installed.
_The wheels and handle
do not provide adequate
clearance, stability or support for pulling the
unit up and down stairs or steps. The unit
must be lifted, or pushed up a ramp.
Assemble Rubber Feet
1. Attach rubber feet with the screws,
washers, and nuts provided as shown.
2. Tighten securely.
Wheel
Shoulder I_olt
_e
r
(_=p_- Rubber Foot
_'_ Screw
A10260 10- ENG
