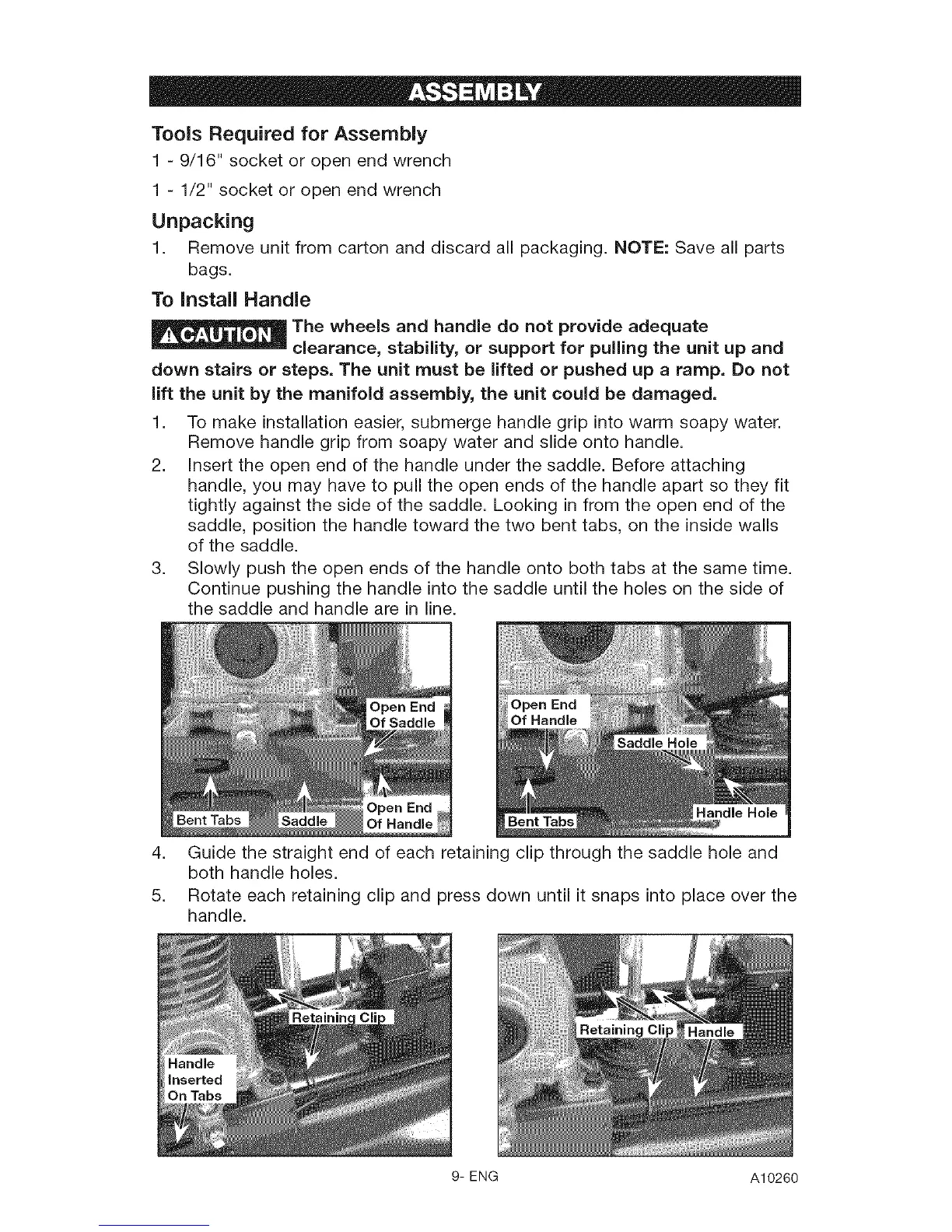

Tools Required for Assembly
1 - 9/16" socket or open end wrench
1 - 1/2" socket or open end wrench
Unpacking
1. Remove unit from carton and discard all packaging. NOTE: Save all parts
bags.
To install Handle
The wheels and handle do not provide adequate
clearance, stability, or support for pulling the unit up and
down stairs or steps. The unit must be lifted or pushed up a ramp. Do not
lift the unit by the manifold assembly, the unit could be damaged.
1. To make installation easier, submerge handle grip into warm soapy water.
Remove handle grip from soapy water and slide onto handle.
2. insert the open end of the handle under the saddle. Before attaching
handle, you may have to pull the open ends of the handle apart so they fit
tightly against the side of the saddle. Looking in from the open end of the
saddle, position the handle toward the two bent tabs, on the inside walls
of the saddle.
3. Slowly push the open ends of the handle onto both tabs at the same time.
Continue pushing the handle into the saddle until the holes on the side of
the saddle and handle are in line.
4. Guide the straight end of each retaining clip through the saddle hole and
both handle holes.
5. Rotate each retaining clip and press down until it snaps into place over the
handle.
Retaining Clip
