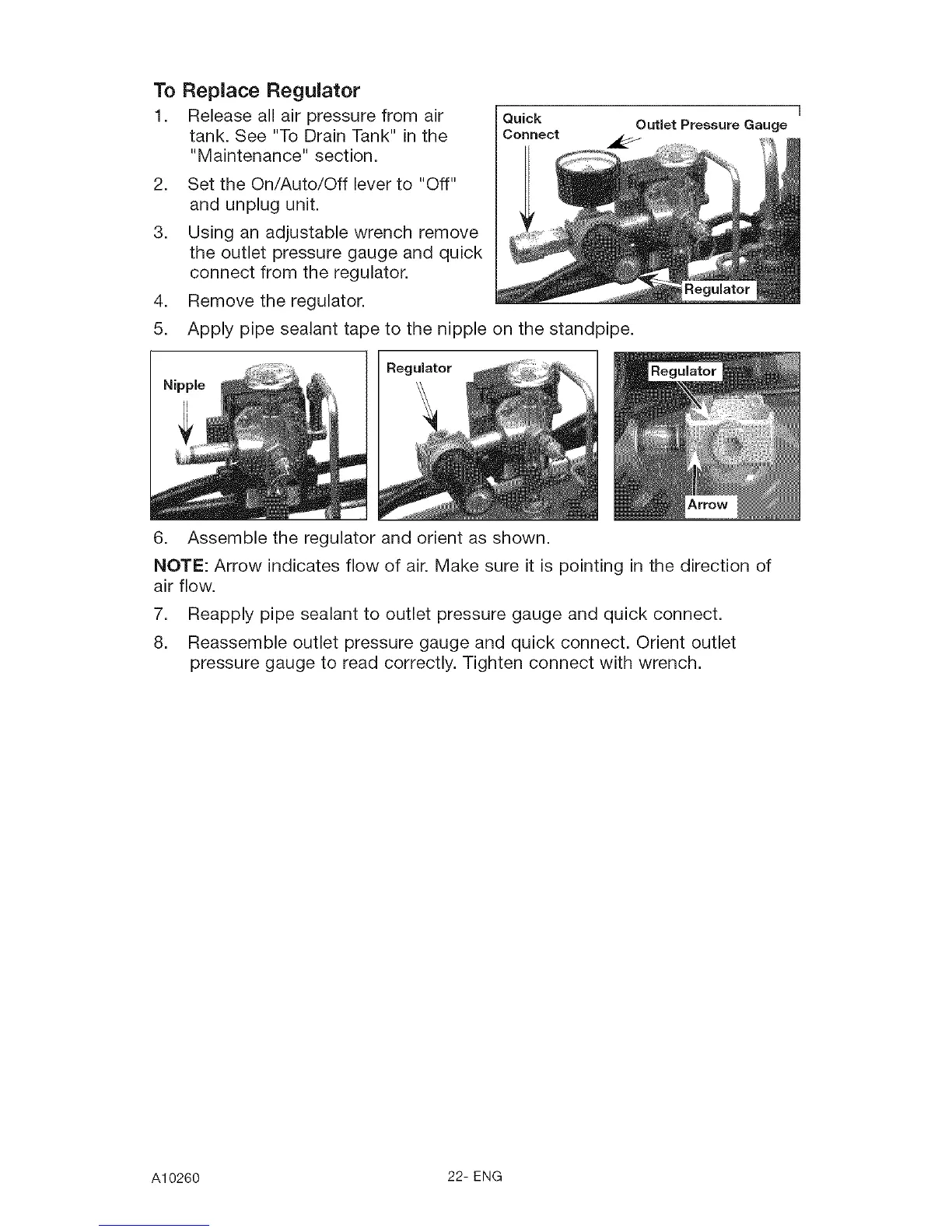

To Replace Regulator
1. Release all air pressure from air
tank. See "To Drain Tank" in the
"Maintenance" section.
I Quick
Connect
Outlet Pressure Gauge
2. Set the On/Auto/Off lever to "Off"
and unplug unit.
3. Using an adjustable wrench remove
the outlet pressure gauge and quick
connect from the regulator.
4. Remove the regulator.
5. Apply pipe sealant tape to the nipple on the standpipe.
Regulator
6. Assemble the regulator and orient as shown.
NOTE: Arrow indicates flow of air. Make sure it is pointing in the direction of
air flow.
7. Reapply pipe sealant to outlet pressure gauge and quick connect.
8. Reassemble outlet pressure gauge and quick connect. Orient outlet
pressure gauge to read correctly. Tighten connect with wrench.
A10260 22- ENG
