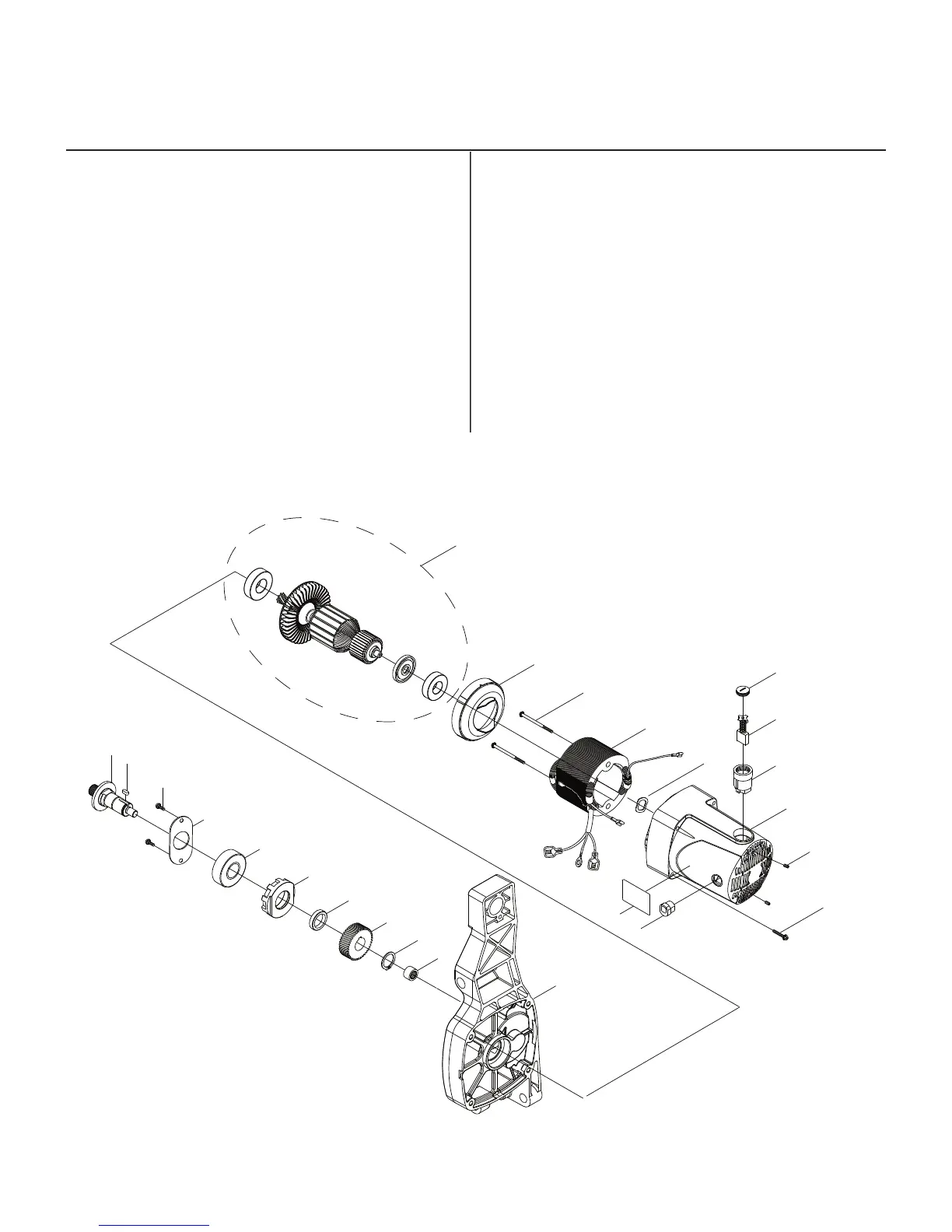

10 IN. (254 MM) JOBSITE TABLE SAW
PARTS LIST & SCHEMATIC FOR MOTOR
I.D. Description Size Qty I.D. Description Size Qty
0HV3 BALL BEARING 1 2RPS MOTOR COVER 1
0HX9 NEEDLE BEARING 1 2RPY SPACER 1
0JEB C-RING 1 2RPZ HELIX GEAR 1
0JG7 PARALLEL KEY 1 2RQ0 CUTTER SHAFT 1
0JX3 HEX. SOC. SET SCREW M5*0.8-8 2 2RQ3 BEARING COVER 1
0KTK STRAIN RELIEF 1 2RRA BEARING SEAT 1
0QM2 BRUSH HOLDER ASS’Y 2 2RT8 ARMATURE ASS’Y 1
0QQT BRUSH ASS’Y 2 2RWS CROSS-RECESSED COUNTER-SUN HEAD SCREW M5*0.8-10 2
0QR0 BRUSH COVER 2 2RXC LABEL 1
0KCP CR.-RE.PAN HD.TAPPING SCREW & WASHER M5*12-60 2 2WWQ BRACKET 1
145Y CR.RE. PAN HD. SCREW & WASHER M5*0.8-55 4 2WXE MOTOR ASS’Y 1
2DW9 WAVE WASHER 1 2XUU FIELD ASS’Y 1
2RPP FLOW GUIDE 1
2RQ3
0HV3
0JEB
0HX9
2RPY
2RPZ
0JG7
2RQ0
2
2RWS
2RPP
2WWQ
2RXC
0KTK
2RPS
4
145Y
0JX3
2
0KCP
2
2XUU
2DW9
2
0QM2
0QQT
2
0QR0
2
2RRA
2RT8
