26
18 IN. (457 MM) VARIABLE SPEED SCROLL SAW

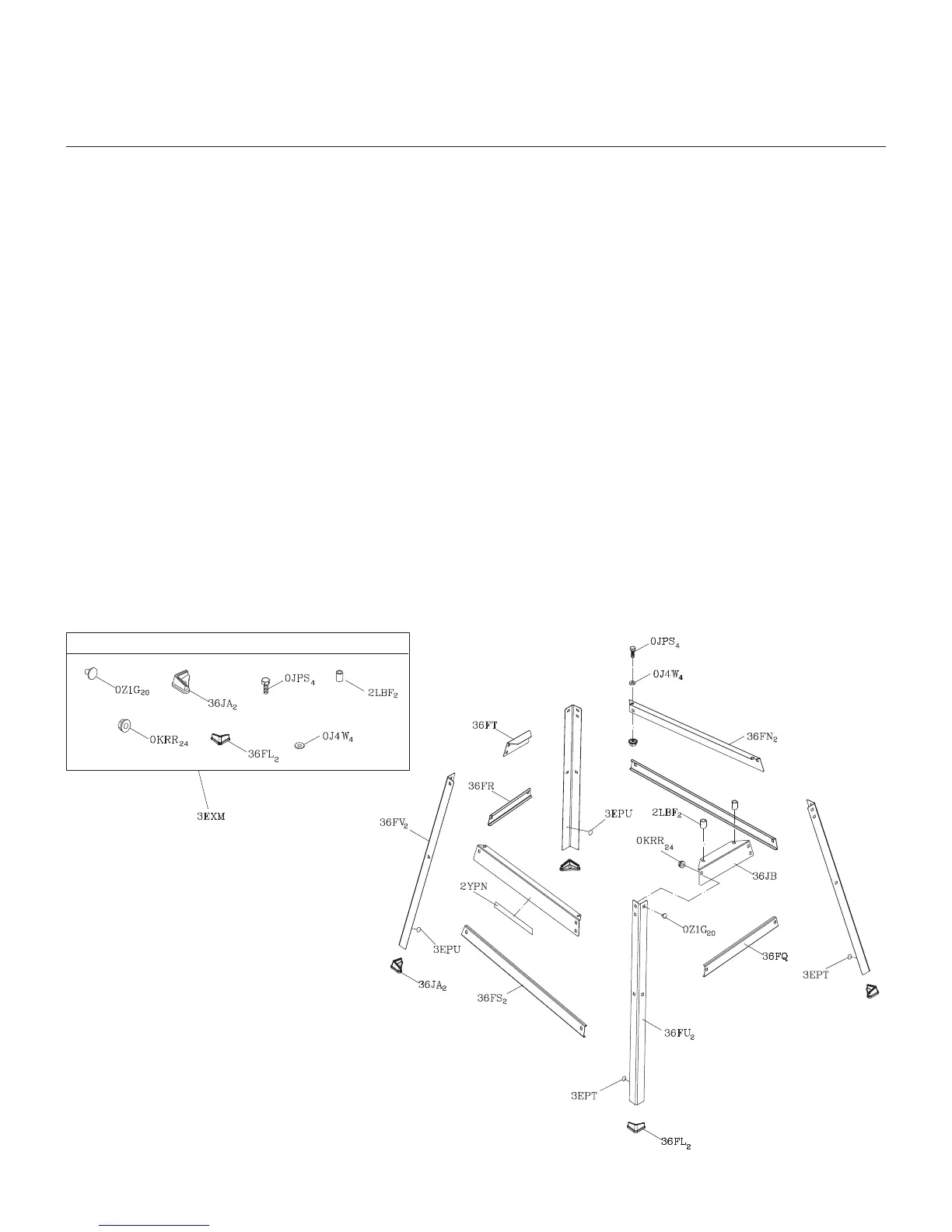

PARTS LIST & SCHEMATIC FOR STAND
I.D. Description Size Q’ty
2YPN WARNING LABEL 1
36FN SIDE BRACKET - UPPER SUPPORT 2
36FQ FRONT BRACKET - LOWER SUPPORT 1
36FR REAR BRACKET - LOWER SUPPORT 1
36FS SIDE BRACKET - LOWER SUPPORT 2
36FT REAR BRACKET - UPPER SUPPORT 1
36FU STAND LEG 2
36FV STAND LEG 2
36JB FRONT BRACKET - UPPER SUPPORT 1
3EPT F LABEL 2
3EPU R LABEL 2
3EXM G. HARDWARE BAG
0J4W FLAT WASHER φ8.2*18-1.5 4
0JPS HEX. HD. BOLT M8*1.25-45 4
0KRR SERRATED TOOTHED HEXAGON FLANGE NUT M8*1.25 T=7.5 24
0Z1G CAP HD. SQ. NECK BOLT M8*1.25-12 20
2LBF SLEEVE 2
36FL FOOT PAD SMALL (FRONT) 2
36JA FOOT PAD LARGE (BACK) 2
G. Hardware Bag
To Next Page
