6 - ENG

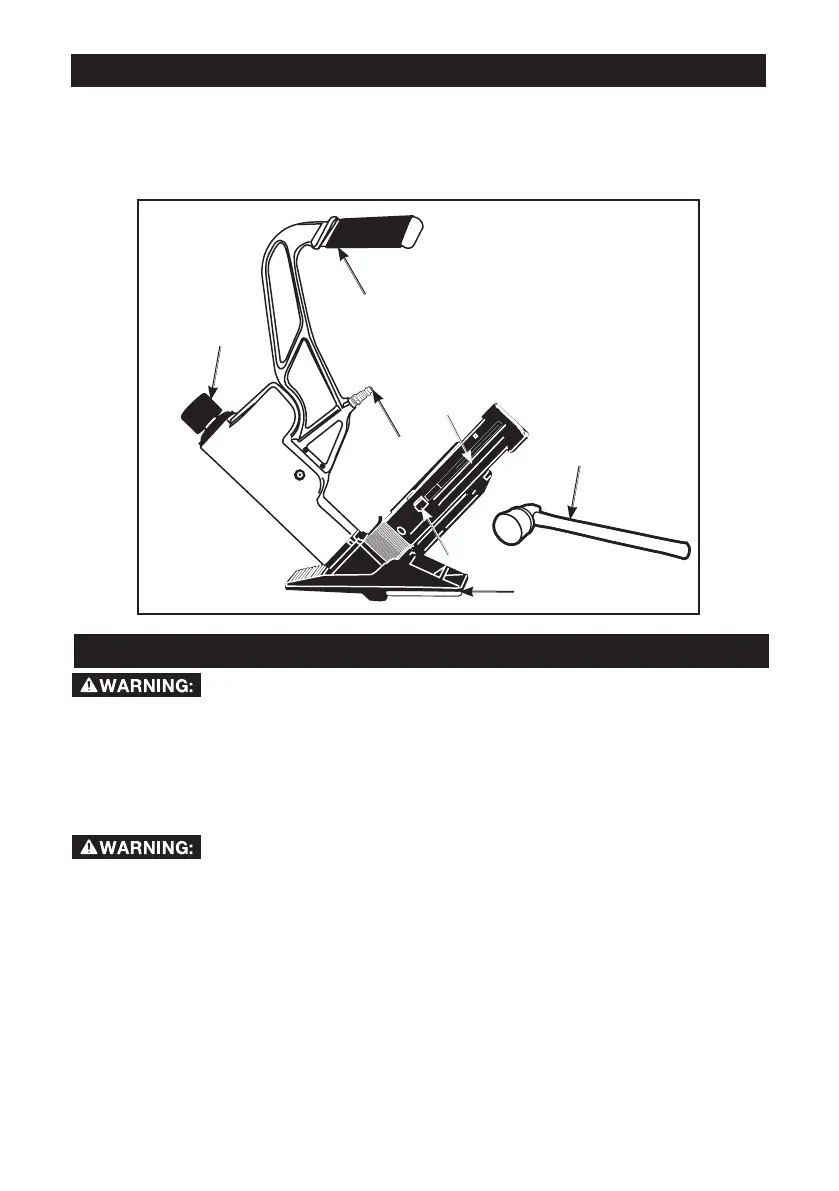

COMPONENTS (FIG. 1)
A. Handle
B. Rubber cap (plunger)
C. Guide plate
D. Pusher
E. Magazine
F. Mallet
G. Air Inlet
A
B
C
F
D
E
G
FIG. 1
\
ASSEMBLY
Disconnect air line from tool and remove fasteners from magazine
before making adjustments or personal injury may result.
AIR FITTING
The tool is equipped with a 1/4" (6.4 mm) male quick connector coupling. A 3/8" (9.5mm)
male quick connector coupling is available from PORTER-CABLE and may be used when a
1/4" (6.4 mm) supply line is not available.
NOTE: A 3/8" (9.5 mm) supply line (and fittings) are required for maximum tool performance.
Always use couplings that relieve all pressure from the tool when it is
disconnected from the power supply. Always use hose connectors that shut off air supply
from compressor when the tool is disconnected.
TO INSTALL AN AIR FITTING
1. Wrap the male end of the fitting with thread seal tape prior to assembly to eliminate air
leaks.
2. To install a 1/4" (6.4 mm) fitting: screw it directly into the air inlet and tighten firmly.
NOTE: If an adapter is in the air inlet, remove it prior to inserting the fitting.
3. To install a 3/8" (9.5 mm) fitting: screw the fitting into the 3/8" (9.5 mm) adapter and then
into the air inlet of the tool and tighten firmly.
