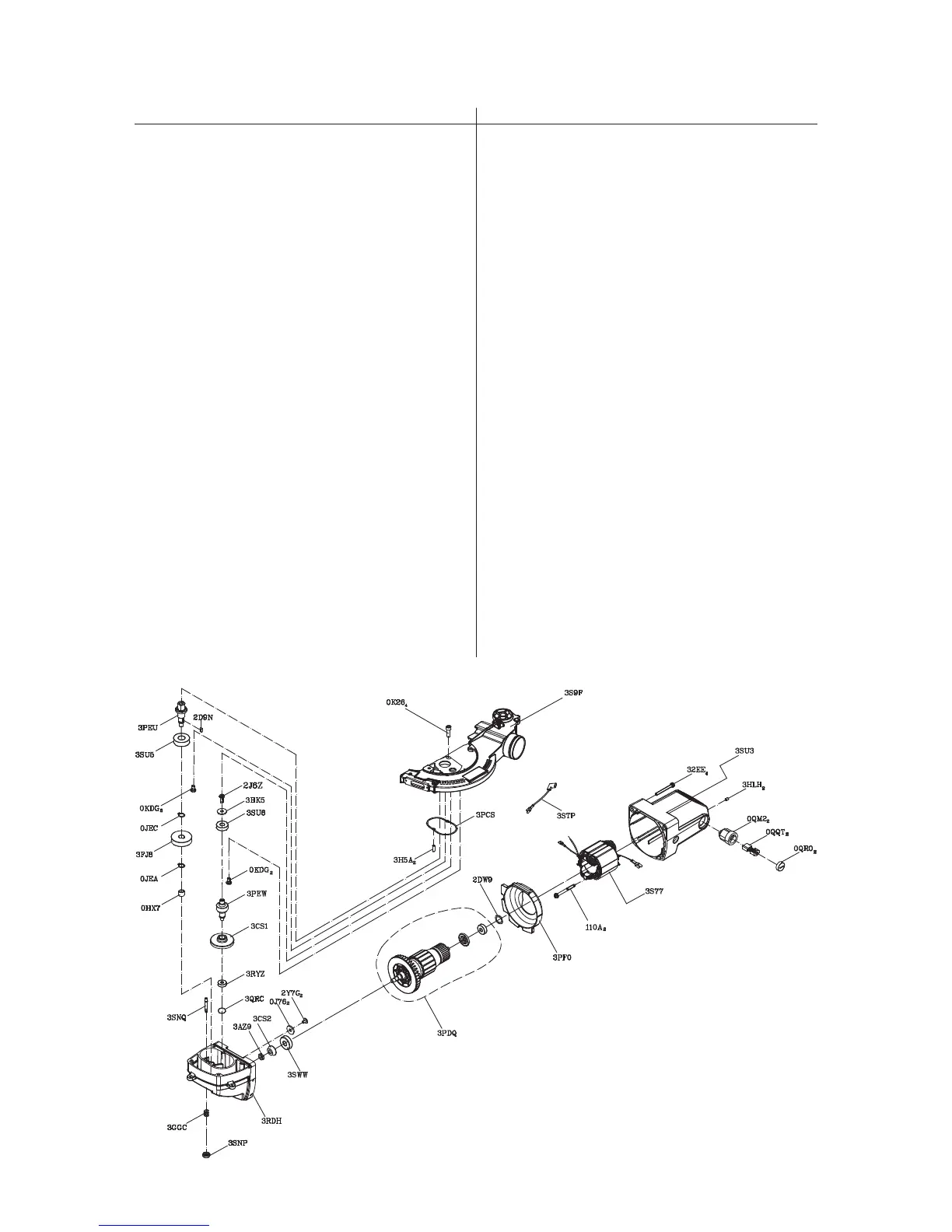

Porter-Cable PCXB115MS - Parts List; Parts List & Schematic for Motor

42
I.D. No. Description Size Q’ty I.D. No. Description Size Q’ty
0HX7 NEEDLE ROLLER BEARING 1 3H5A NEEDLE ROLLER 2
0J76 FLAT WASHER
1/4*3/4-1/16
2 3HK5 FLAT WASHER Ǘ 1
0JEA C-RING 1 3HLH HEX. SOC. SET SCREW M5*0.8-6 2
0JEC C-RING 1 3PCS OIL PAPER 1
0K26 HEX. SOC. HD. CAP SCREW M5*0.8-25 4 3PDQ ARMATURE ASS’Y 1
0KDG CR. RE. PAN HD. SCREW M5*0.8-6 5 3PEU CUTTER SHAFT 1
0QM2 BRUSH HOLDER ASS’Y 2 3PEW GEAR SHAFT 1
0QQT BRUSH ASS’Y 2 3PF0 FLOW GUIDE 1
0QR0 BRUSH COVER 2 3QRC O-RING ROD 1
110A CR. RE. PAN HD. TAPPING
SCREW & WASHER
M5*12-55 2 3RDH GEAR BOX 1
2D9N PARALLEL KEY 1 3RYZ BALL BEARING 1
2DW9 WAVE WASHER BWW-608 1 3S77 FIELD ASS’Y 1
2J6Z HEX. SOC. HD. CAP BOLT M5*0.8-10 1 3S9F ARM 1
2Y7G
CR. RE. PAN HD. TAPPING SCREW
M5*0.8-8 2 3SNP LOCK KNOB 1
32EE
CR. RE. PAN HD. SCREW & WASHER
M5*0.8-50 4 3SNQ CLEVIS PIN 1
3AZ9 HEX. NUT
M8*1.25 T=4 1 3STP LEAD WIRE ASS’Y 1
3CS1 STRAIGHT BEVEL GEAR 1 3SU3 MOTOR COVER 1
3CS2 STRAIGHT BEVEL GEAR 1 3SU5 BALL BEARING 1
3FJ8 HELIX GEAR 1 3SU6 BALL BEARING 1
3GGC COMPRESSION SPRING 1 3SWW BALL BEARING 1
10 IN. (254 MM) FOLDING COMPOUND MITER SAW
