GAM Quick Installation Guide
Positron Access Solutions 21 Document 180-0211-001 R01

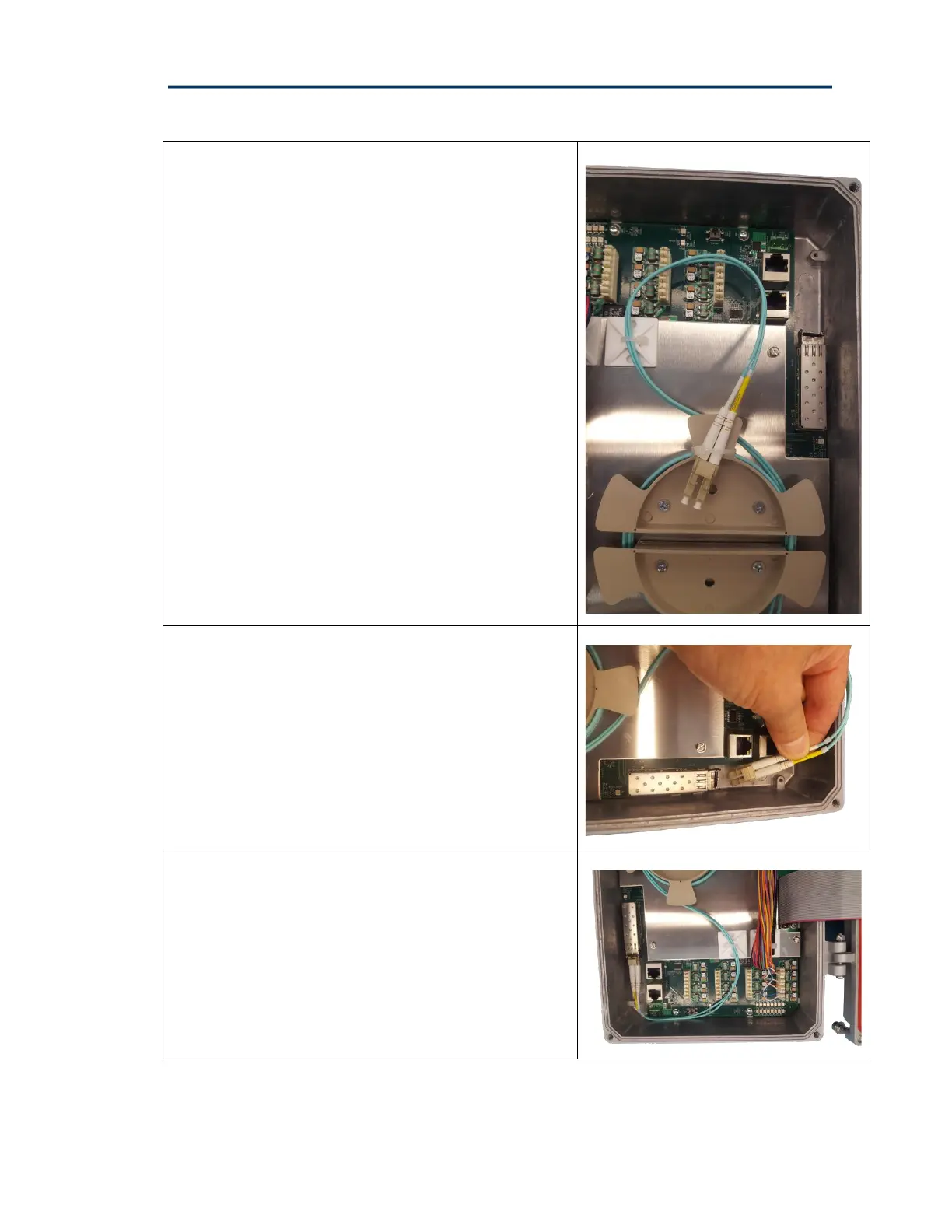

Step 13: install the fiber patch cable around the
fiber spool as per the fiber cable provider
guidelines. Make sure you have enough length
to reach the SFP cage while routing the fiber
cable above the 2 x RJ-45 ports at the top right
of the GAM enclosure.
Step 14: insert the fiber connectors into the
SFP / SFP+ module. Note: while an LC patch
cable is shown here, you can also use an SC
patch cable or a copper (CAT-5/6e) when using
a copper SFP.
Step 15: make sure you carefully route the fiber
patch above and around the RJ-45 connectors.
