GAM Quick Installation Guide
Positron Access Solutions 20 Document 180-0211-001 R01

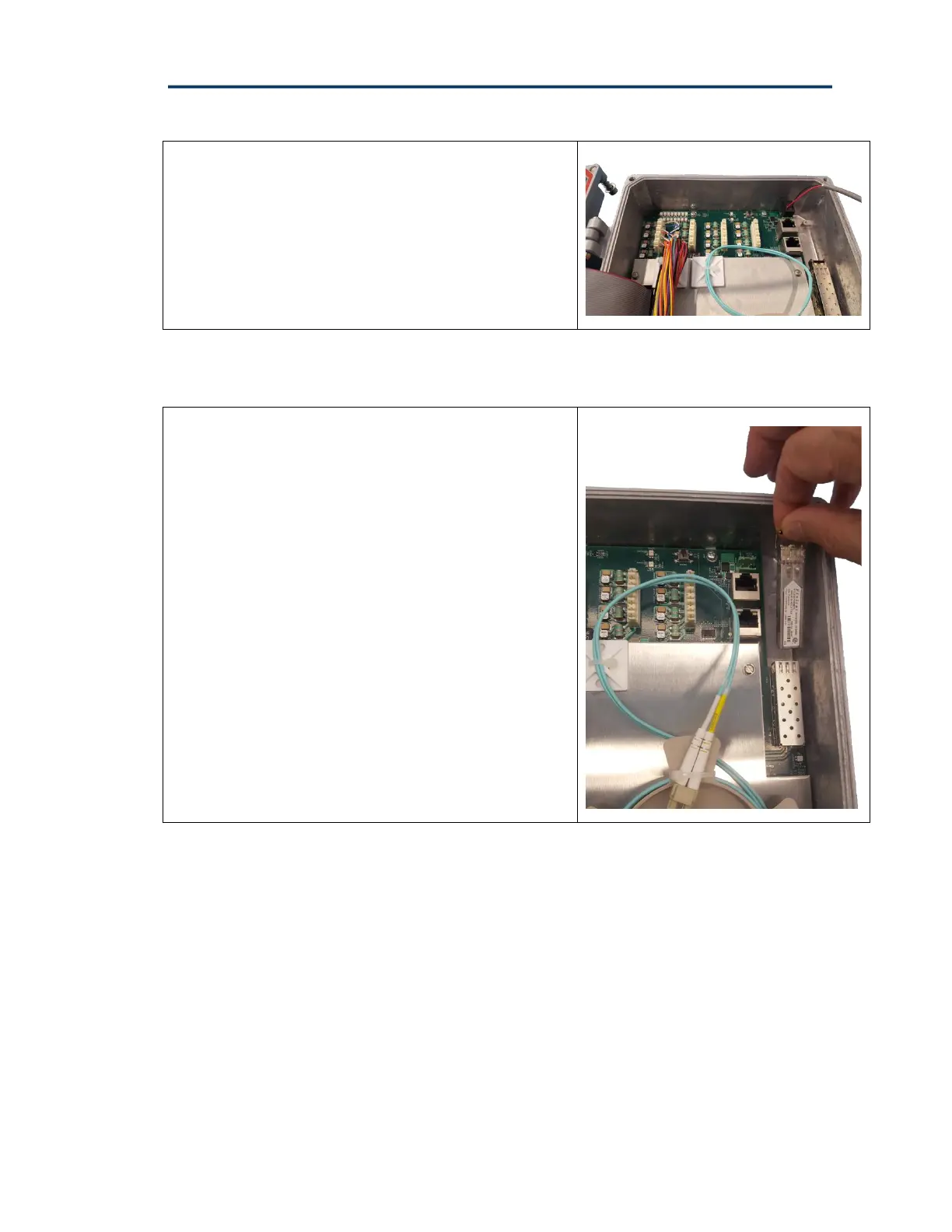

Step 11: insert the male power connector into
the female receptacle. You can now connect
the other end of the 12Vdc / 4A adapter to the
local 110-220VAC power source.
The next step is the insertion of the SFP or SFP+ module that provides the uplink
connection.
Step 12: Insert the SFP or SFP+ module into
the SFP cage at the top right section of the
GAM enclosure. Make sure to lock the SFP /
SFP+ module in place.
Note: the SP cage can accommodate modules
that draw up to 3W of power.
