POSX XP8200 - 3.2 Connector Information

3.2 Connector

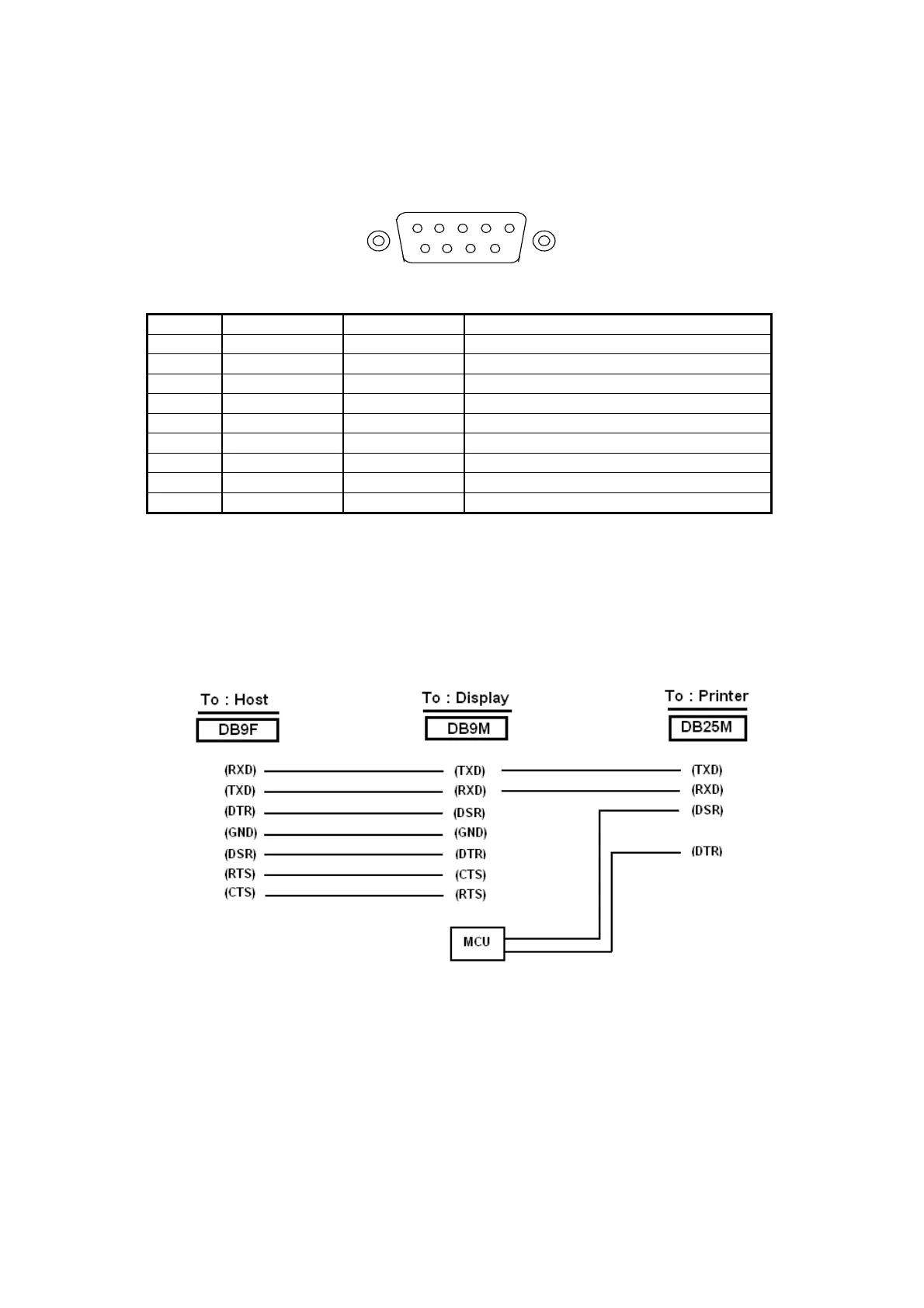

(I) Connector for Host Computer
145
9876
32
PIN Assignment
Pin No. Signal I/O Description
1 NC No Connection
2 TXD- OUTPUT Transmit Data
3 RXD INPUT Receive Data
4 DSR INPUT Data Set Ready
5 GND Power GND
6 DTR OUTPUT Data Terminal Ready
7 CTS Clear To Send
8 RTS Request to Send
9 By Selection N.C. or +5V ~ +12V
(II) Passthru Mode
XP8200-PASS 1
For the printer with ESC/POS command
