(362) 9700-GB WARTUNG
MAINTENANCE
GB
Installing cutter blades
Take note!
The arrow on the cutter blade shows the cutter disc's
direction of turn.
- To install, clean back plates from varnish.
Winter storage
- Thoroughly clean machine before storage.
- Put up protection against weather.
- Change or replenish gear oil.
- Protect exposed parts from rust.
- Lubricate all greasing points according to lubrication chart.
Cleaning of machine parts
Attention! Do not use high-pressure washers for the cleaning of bearing- and hydraulic
parts.
- Danger of rust!
- After cleaning, grease the machine according to the lubrication chart and carry out a
short test run.
- Cleaning with too high pressure may do damage to varnish.
Fahrtrichtung
TD 45/94/23
R E
L I
Variation-1

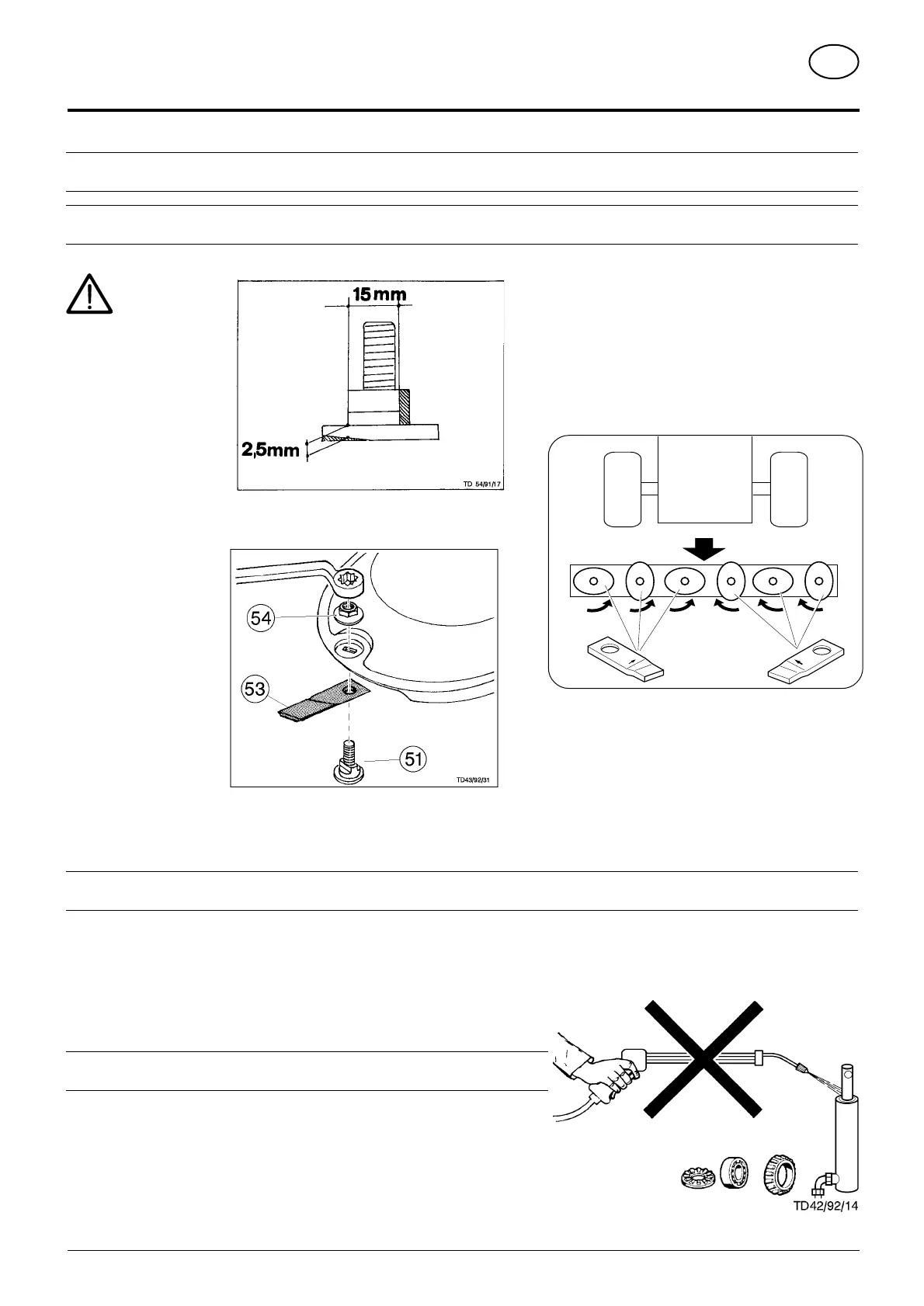

Fixing cutter blades using screw-threaded blade bolts
Attention!
For your safety!
- Regularly check that cutter
blades are tightened firmly!
- Buckled or damaged cutter
blades must not be used
further.
- Cutter blades worn on one
side can be turned over and
installed again.
- Blade bolts must be
replaced when lower edge
is well worn or at a diameter of 15 mm.
- Cutter blades on a cutter disc should wear out simultaneously (danger of
imbalance).
Otherwise they are to be
replaced with new ones
(replace in pairs).
Parts:
Screw (51)
Cutter blade (53)
Nut (54)
(STM = 120 Nm).
