9400 GB ANBAU (361)
ATTACHING TO TRACTOR
GB
Guard plates and protective aprons
Guard plates and protective aprons can be raised when
maintenance work is to be done.
For safety reasons it is necessary to wait for mowing
disks to stop completely before raising and securing
guard plates.

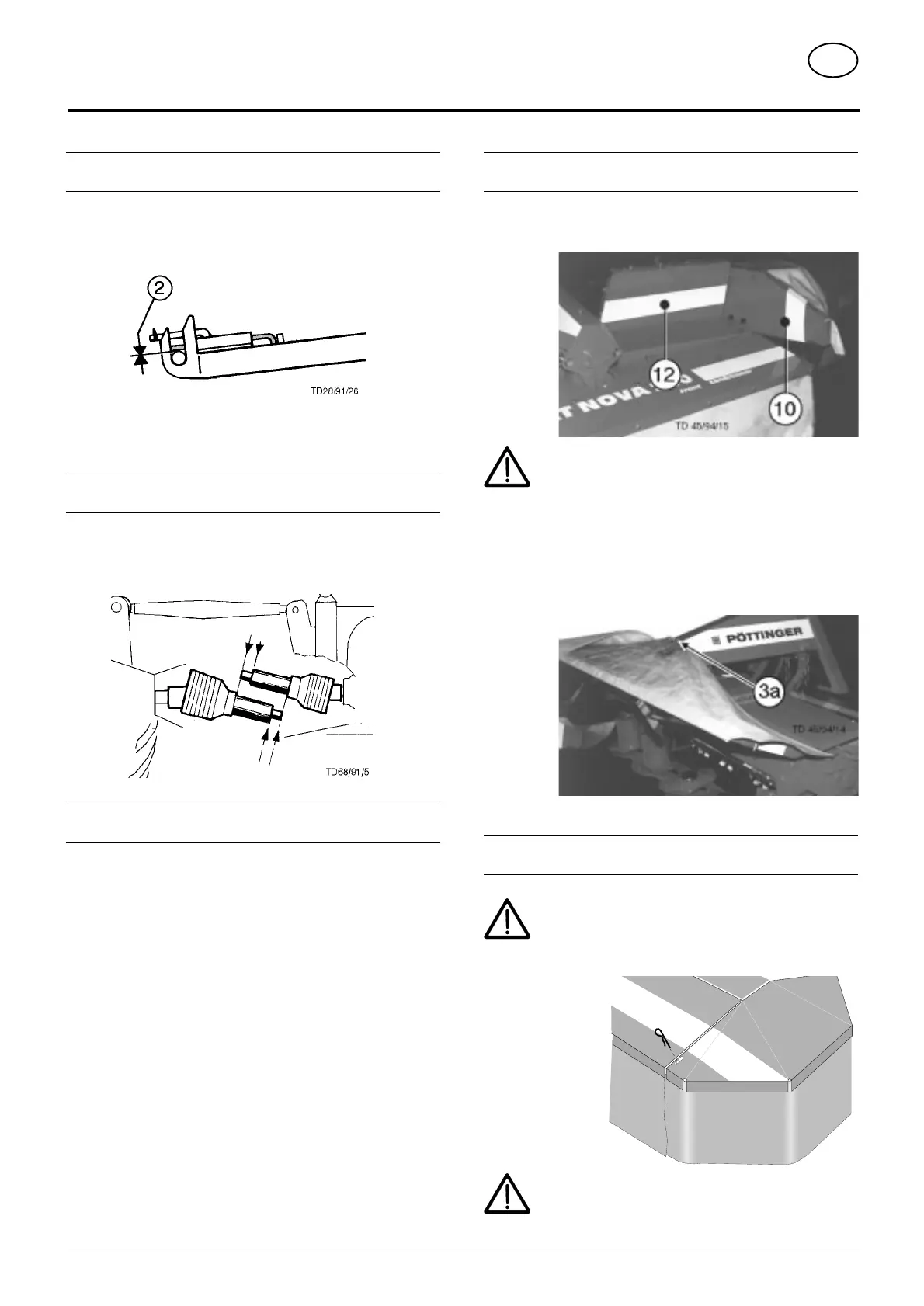

1. Swing both rear protection covers (12) up.
2. Swing guard plates (10 and 11) up and fix to the rear protection
cover (12) in this position with both spring pins.
3. The front protective apron can be hooked onto the attaching frame
using the ring on the screw (3a). This allows the mower discs to be
easily reached.
Work position
Before commencing work
Turn the p.t.o. on only when all safety devices (coverings,
protective aprons, casings, etc.) are in proper condition
and attached to the implement in the correct protective
positions.
- Secure both guard
plates in this
position with spring
pin.
For safety reasons mowing may only be conducted in
this position.
Attaching in general
1. Observe safety tips in supplement A.
2. Mark off the implement at the tractor's front lifting gear.
• Secure locking bolts with linch pins.
• Lock lower link bolts (2) so that they are free from play.
Drive shaft
• Before operating for the first time, drive shaft is to be checked and
adapted if necessary. See also chapter "Fitting the drive shaft" in
supplement B.
Road Transport
• Observe the regulations issued by your country's legislative body.
• Travelling on public roads may only be undertaken as is described
in the chapter "Transporting Position".
• Fasten lower hydraulic link (U) so that implement cannot swing out
sideways.
