Pottinger CAT NOVA 310 - Mower Unit Operation Modes; Mower unit with Conditioner; Mower unit with Swath Former Drive; General operation procedure

(362) 9700-GB EINSATZ
- 11 -
PUTTING INTO OPERATION
1)
optional equipment
GB

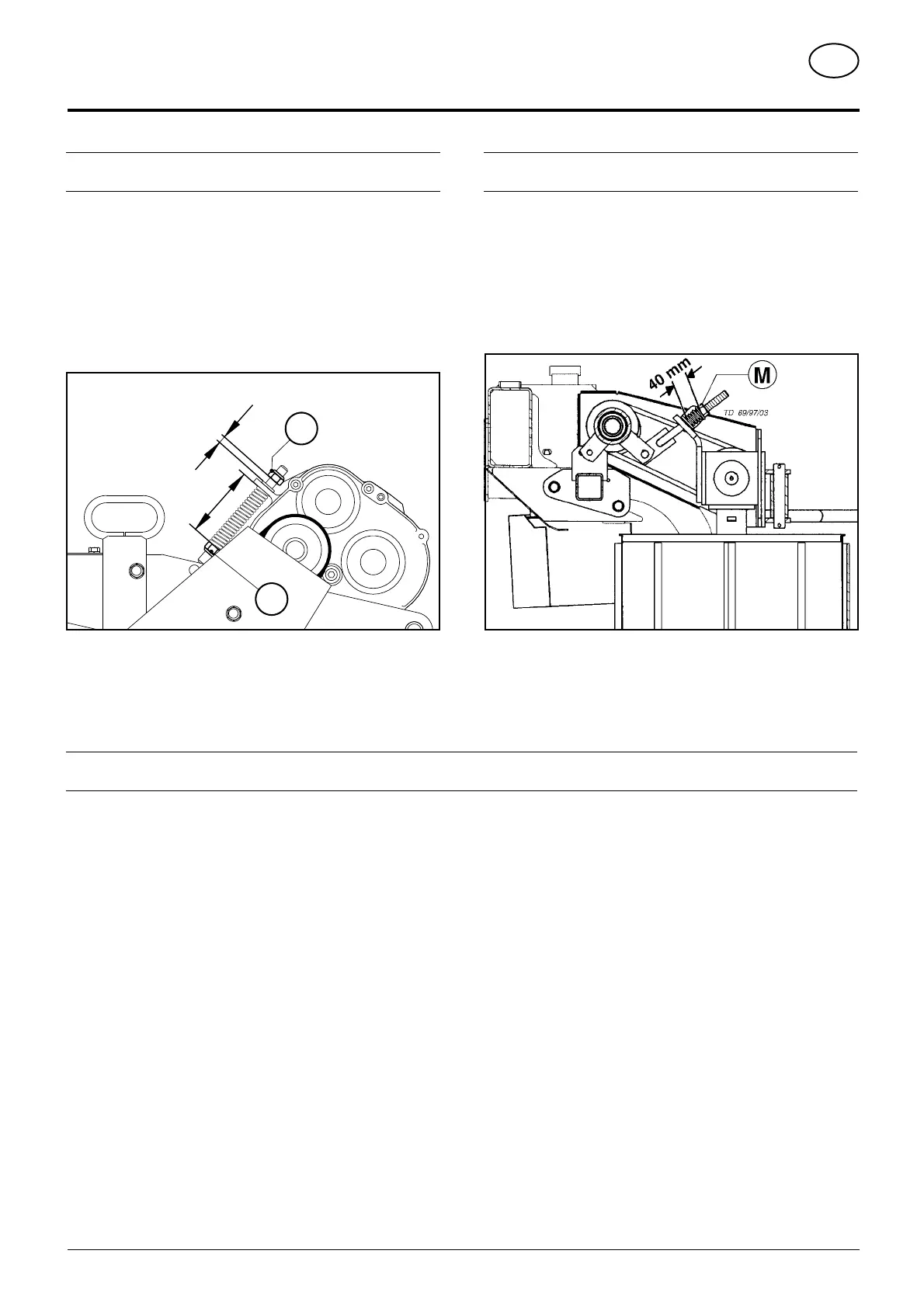

Mower unit with Conditioner
1)
1. Check condition of V-belts.
Replace worn out and damaged V-belts!
2. Check V-belt tension!
• The compression spring should be pretensioned to 115 mm.
This setting is achieved by appropriately turning nut (M1).
• The 15 mm gap is set by appropriately turning nut (M2).
Operation
1. Adjust cutting height by turning upper link spindle (inclination of the cutting discs max. 5 ° ).
2. To mow, gradually supply power to the p.t.o. before entering the crop and bring the mowing discs up to full revs.
Smoothly increase the p.t.o. speed, in order to avoid noises in the free-wheel conditioned by the system.
- Adjust travel speed to terrain and crop.
Mower unit with Swath Former Drive
1)
1. Check condition of V-belts.
Replace worn out and damaged V-belts!
2. Check V-belt tension!
• The compression spring should be pretensioned to 40 mm.
This setting is achieved by appropriately turning nut (M).
TD59/96/7a
M1
M2
15 mm
115 mm
