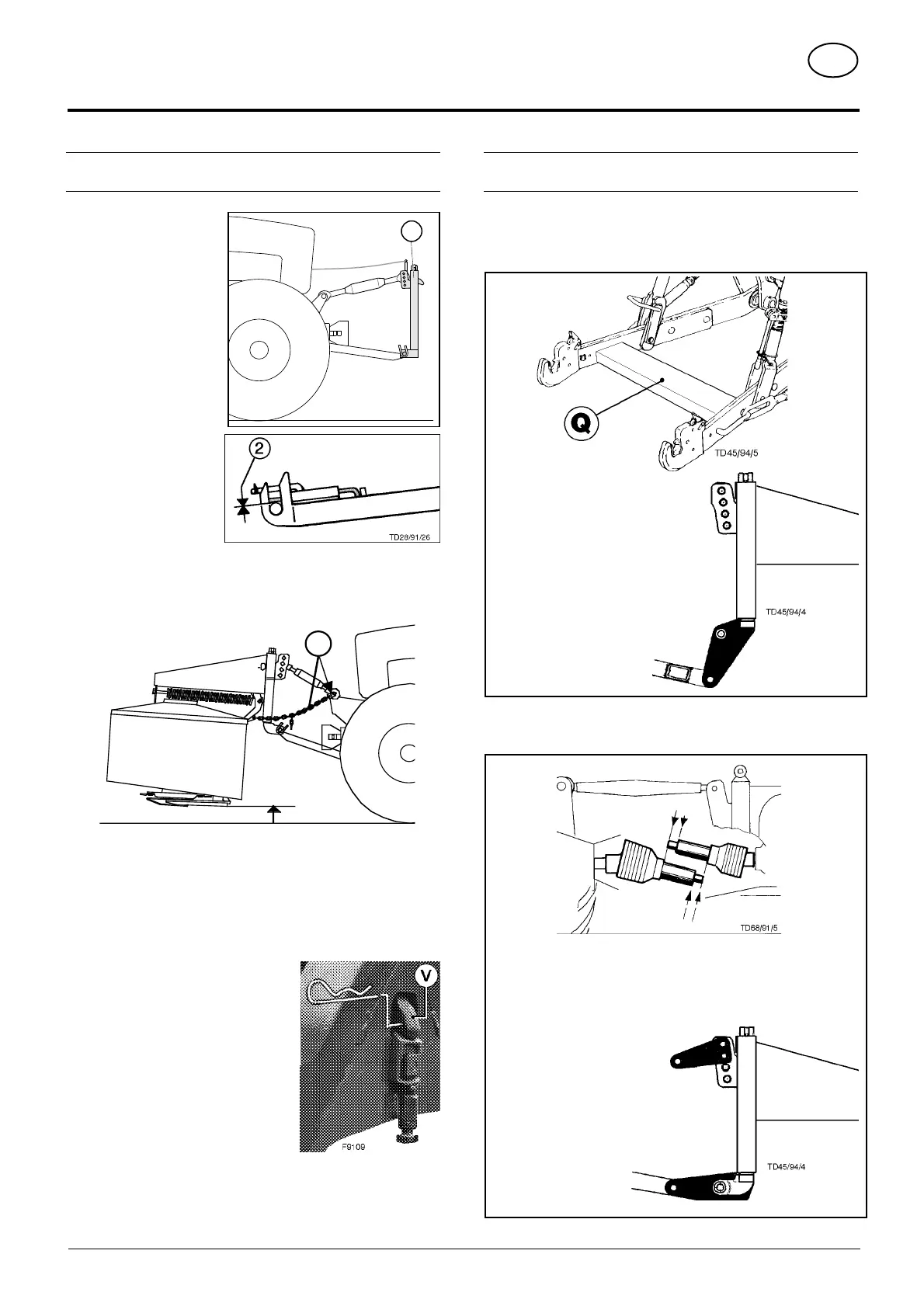

ATTACHING TO TRACTOR
GB
Snap Connector (1)
1. Mount snap connector
(Weiste triangle) onto the
front lifting gear in
a vertical position or
inclined slightly forward.
2. Lock lower link bolts (2)
so that they are free from
play.
3. Connect and lift mower unit (H2).
4. Secure both chains (K).
• Pay attention to the correct attachment positions and the length
of the chains.
• Observe the setting measurement for the relieving springs.
See next page for settings.
5. Secure locking clamp (V) with cotter
pin.
6. Fit drive shaft.
Attaching problems
On lifting gear with a crosspiece (Q) between the lower links, damage
could occur to the drive shaft when lowering the attached implement.
In order to prevent damage
an extra elevator unit is to
be installed between the
Weiste-triangle and the
lifting gear.
In a case such as this please
contact our Customer
Service Dept.
When towing implements whose p.t.o stub is positioned a long way
forward, the drive shaft must be shortened quite a bit.
• When the implement is engaged then there is insufficient
casing to over the drive shaft.
• The maximum angle of deviation of the universal-joint will
possibly be exceeded (see Supplement B also).
In this case an
accessory kit is
necessary which
positions the
implement approx.
200 mm forwards.
In a case such as
this please contact
our Customer
Service Dept.
