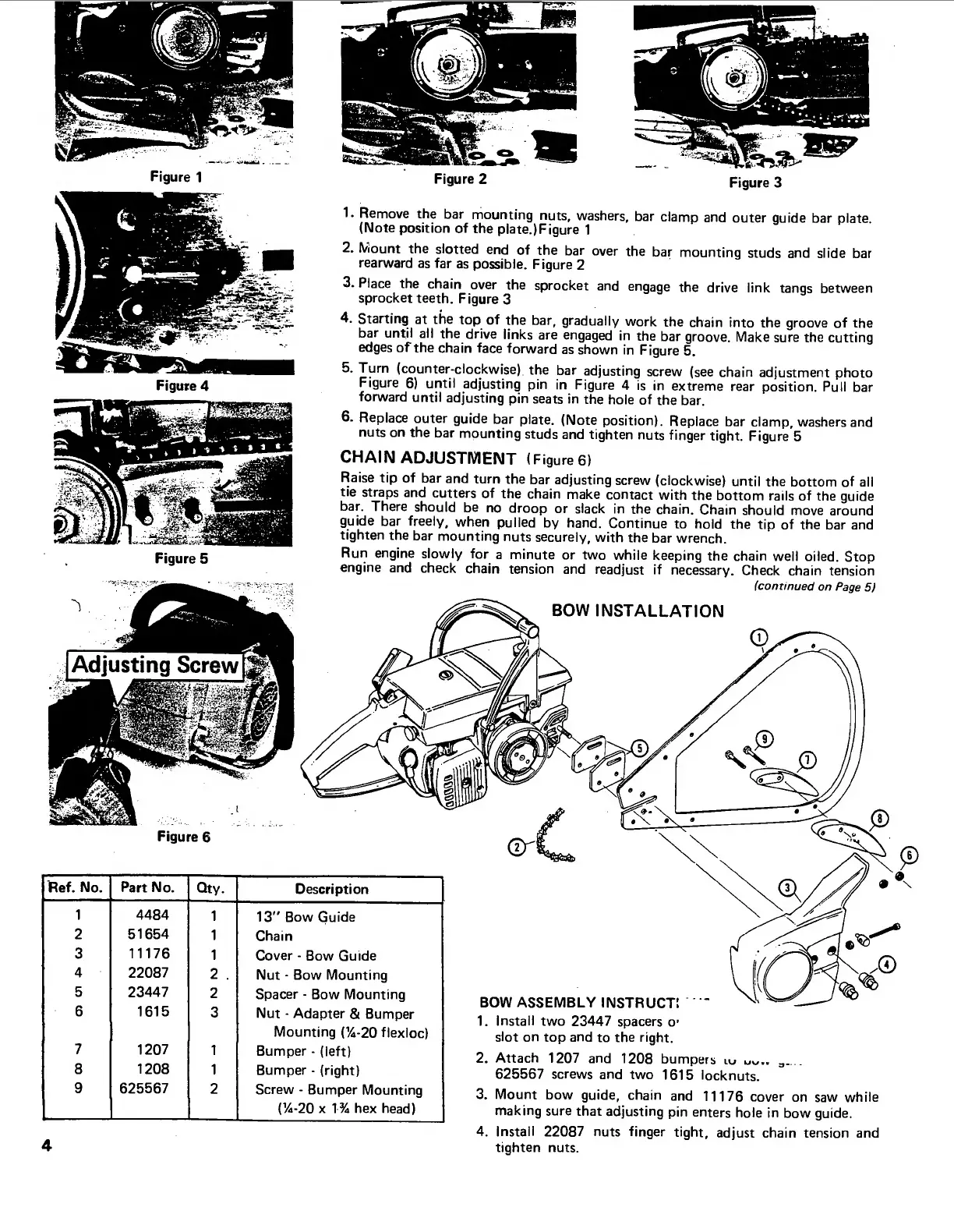

Figure
2
1.
Remove
the
bar
mounting
nuts,
washers,
bar
clamp
and
outer
guide
bar
plate
(Note
position
of
the
plate.)Figure
1
2.
Mount
the
slotted
end
of
the
bar
over
the
bar
mounting
studs
and
slide
bar
rearward
as
far
as
possible.
Figure
2
3.
Place
the
chain
over
the
sprocket
and
engage
the
drive
link
tangs
between
sprocket
teeth.
Figure
3
4.
Starting
at
the
top
of
the
bar,
gradually
work
the
chain
into
the
groove
of
the
bar
until
all
the
drive
links
are
engaged
in
the
bar
groove.
Make
sure
the
cutting
edges
of
the
chain
face
forward
as
shown
in
Figure
5.
5.
Turn
(counter-clockwise)
the
bar
adjusting
screw
(see
chain
adjustment
Figure
6)
until
adjusting
pin
in
Figure
4
is
in
extreme
rear
position.
Pull
bar
forward
until
adjusting
pin
seats
in
the
hole
of
the
bar.
6.
Replace
outer
guide
bar
plate.
(Note
position).
Replace
bar
clamp,
washers
and
nuts
on
the
bar
mounting
studs
and
tighten
nuts
finger
tight.
Figure
5
CHAIN
ADJUSTMENT
(Figure
6)
Raise
tip
of
bar
and
turn
the
bar
adjusting
screw
(clockwise)
until
the
bottom
of
all
tie
straps
and
cutters
of
the
chain
make
contact
with
the
bottom
rails
of
the
guide
bar.
There
should
be
no
droop
or
slack
in
the
chain.
Chain
should
move
around
guide
bar
freely,
when
pulled
by
hand.
Continue
to
hold
the
tip
of
the
bar
and
tighten
the
bar
mounting
nuts
securely,
with
the
bar
wrench.
Run
engine
slowly
for
a
minute
or
two
while
keeping
the
chain
well
oiled.
Stop
engine
and
check
chain
tension
and
readjust
if
necessary.
Check
chain
tension
<continued
on
Page
5)
BOW
INSTALLATION
Figure
6
Ref.
No.
Part
No.
Qty.
Description
1
4484
1
13"
Bow
Guide
2
51654
1
Chain
3
11176
1
Cover
-
Bow
Guide
4
22087
2
.
Nut
-
Bow
Mounting
5
23447
2
Spacer
-
Bow
Mounting
6
1615
3
Nut
-
Adapter
&
Bumper
Mounting
(%-20
flexloc)
7
1207
1
Bumper
-
(left)
8
1208
1
Bumper
-
(right)
9
625567
2
Screw
-
Bumper
Mounting
(%-20
x
1%
hex
head)
BOW
ASSEMBLY
INSTRUCT!
~
1.
Install
two
23447
spacers
o’
slot
on
top
and
to
the
right.
2.
Attach
1207
and
1208
bumpers
iu
625567
screws
and
two
1615
locknuts.
3.
Mount
bow
guide,
chain
and
11176
cover
on
saw
while
making
sure
that
adjusting
pin
enters
hole
in
bow
guide.
4.
Install
22087
nuts
finger
tight,
adjust
chain
tension
and
tighten
nuts.
