TABLE OF CONTENTS
Bar and Chain Installation.4
Chain Adjustment. 4
Bow Installation... 4
Operating Instructions. 5
Cutting Tips.5
Bow Cutting Tips. 5
Felling. 6
Bucking.6
Pruning and Debranching.. 7
Care and Maintenance. 7
Chain Sharpening..8

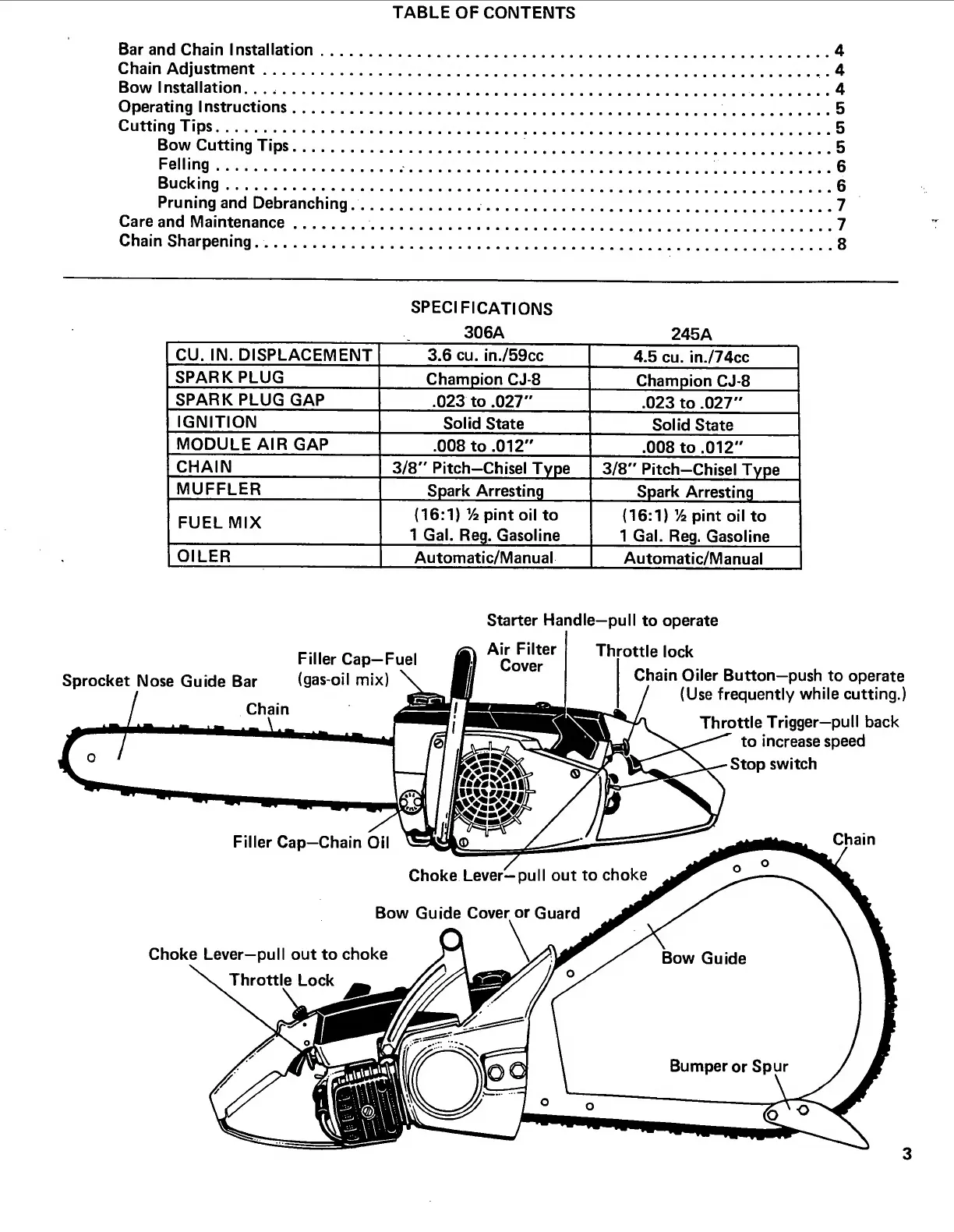

SPECIFICATIONS
306A 245A
CU. IN. DISPLACEMENT
3.6 cu. in./59cc
4.5 cu. in./74cc
SPARK PLUG
Champion CJ-8
Champion CJ-8
SPARK PLUG GAP
.023 to .027"
.023 to .027"
IGNITION
Solid State
Solid State
MODULE AIR GAP
.008 to .012"
.008 to .012"
CHAIN
3/8" Pitch—Chisel Type
3/8" Pitch—Chisel Type
MUFFLER
Spark Arresting
Spark Arresting
FUEL MIX
(16:1) Vi pint oil to
1 Gal. Reg. Gasoline
(16:1) 'A pint oil to
1 Gal. Reg. Gasoline
OILER
Automatic/Manual
Automatic/Manual
Sprocket Nose Guide Bar
Filler Cap—Fuel
(gas-oil mix)
Starter Handle—pull to operate
Throttle lock
Chain Oiler Button—push to operate
(Use frequently while cutting.)
Throttle Trigger—pull back
to increase speed
Stop switch
Chain
3
