Power Breezer Mach 4+ - Troubleshooting: Head Rotation Failure

B. How to Substute a Control Panel
Make sure to unplug the unit while checking connecons or anything pertaining to the
electronic box.
A. Have a known good Control Panel with its Control Cable (6 wires in the Control Cable are
black and numbered 1 through 6 and a green wire is referenced as 7).
B. Open E-Box.
C. Look at drawing 180-700-750 - wiring diagram.

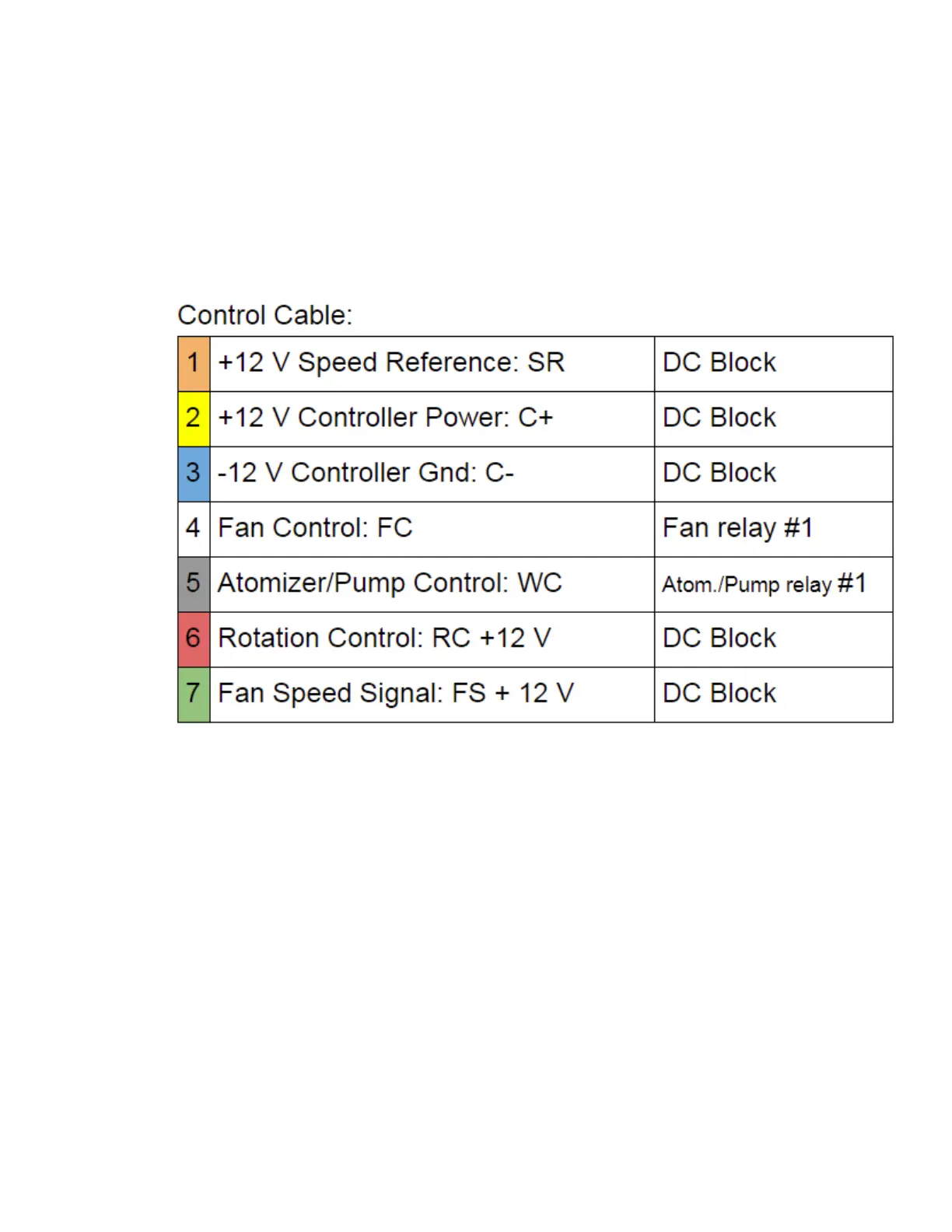

D. On the right of the wiring diagram, you will see the “Control Cable” wiring direcons.
E. Remove the current Control Panel cable and substute the known good Control Panel
cable and Control Panel.
F. Test the Control Panel by:
a. Turning on the Unit
b. Turning on the Atomizer
c. Turning on the Rotaon
d. Varying the Speed of the Fan
C. Changing The Water Pump
