Power-Pole Charge - Dual 12 v Trolling Motor Battery Setup; Triple 12 v Trolling Motor Battery Setup

CHARGE Installation & Owner’s Guide | 11
12V
12V 12V

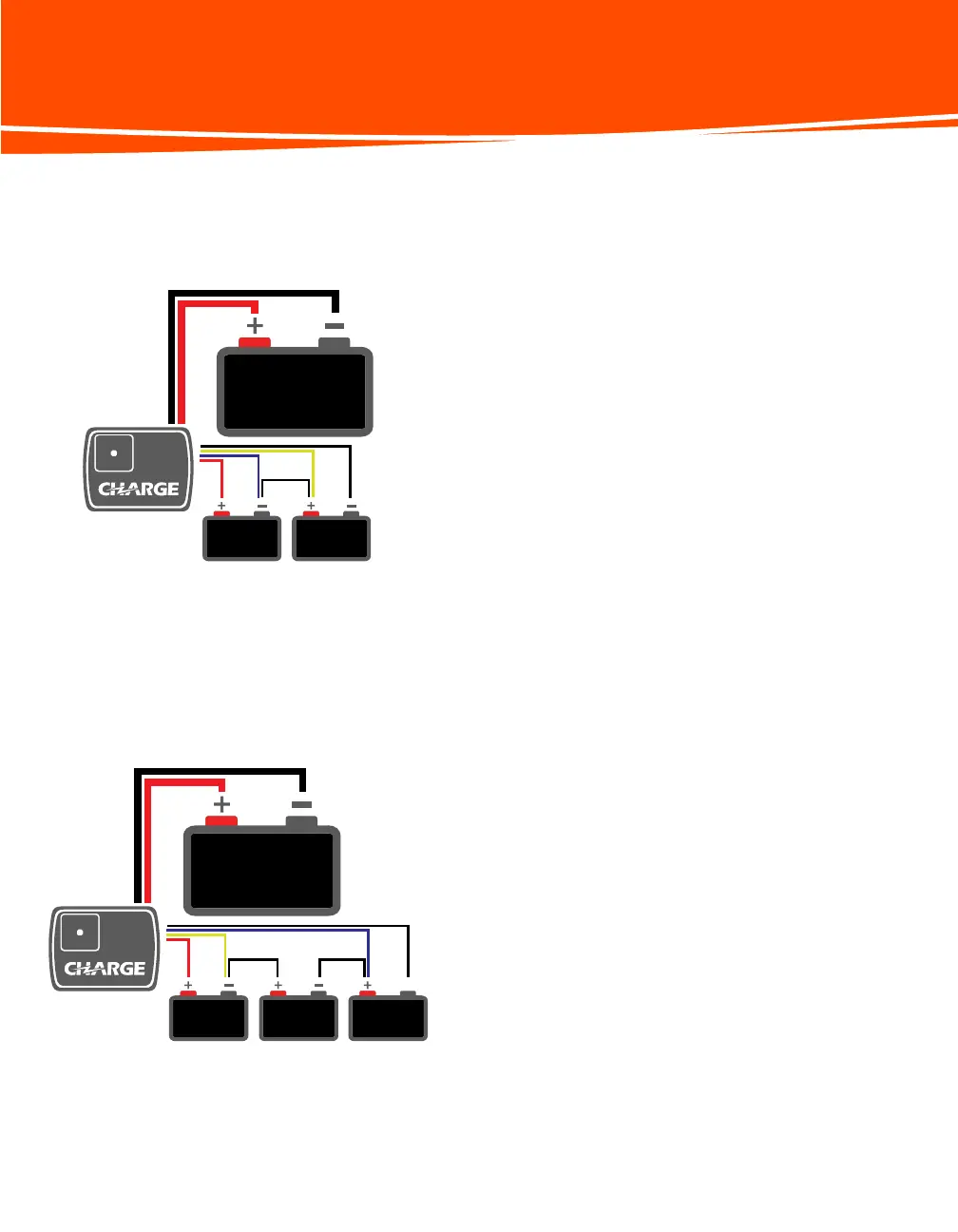

Dual 12v Trolling Motor Battery Setup
Connect the RED cable to the positive (POS, P, +) post
of the first 12v trolling motor battery. Connect the BLUE
cable to the ground (NEG, N, -) post of the same battery.
Connect the YELLOW cable to the positive (POS, P, +)
post of the next trolling motor battery. Connect the BLACK
cable from the CHARGE™ to the ground (NEG, N, -)
post of last trolling motor battery.
12V
12V 12V 12V
Triple 12v Trolling Motor Battery Setup
Connect the RED cable to the positive (POS, P, +) post
of the first of the 12v trolling motor battery. Attach the
YELLOW cable to the ground (NEG, N, -) post of the
first trolling motor battery.
Connect the BLUE cable to the positive (POS, P, +) post
of the last trolling motor battery. Connect the BLACK cable
from the CHARGE™ to the ground (NEG, N, -) post of
the last trolling motor battery.
BATTERY CONFIGURATIONS
